T-Log for Thickness Surveys on the Wave, Masterscan and Sitescan Systems

A common method is to take individual ‘spot’ readings over a grid to cover large areas, e.g. 50 mm x 50 mm.

Fig. 1- Wave carrying out thickness readings

Thickness Inspections

Traditionally, the inspector would record each reading on a notepad, stopping every few readings to record them down or having an additional technician accompany them to record readings as they were called out. This is both time-consuming and expensive for the client to pay for extra personnel or extra time on the job.

The Sonatest Wave, Masterscan, Sitescan series, and Alphagage have thickness logging capabilities, which are referred to as T-Log. This feature allows users to create a grid and record inspection readings directly into the set. There is no need for an extra technician or to stop and manually record readings!

Fig. 2 - T-Log on the Wave

T-Log Colour Pallets

When using T-Log data, users can easily apply colour pallets to highlight low/out-of-tolerance readings for fast detection.

On the Wave, this can be shown during data acquisition; for our other systems, this can be applied in the post-analysis of the data using the UTLity PC software.

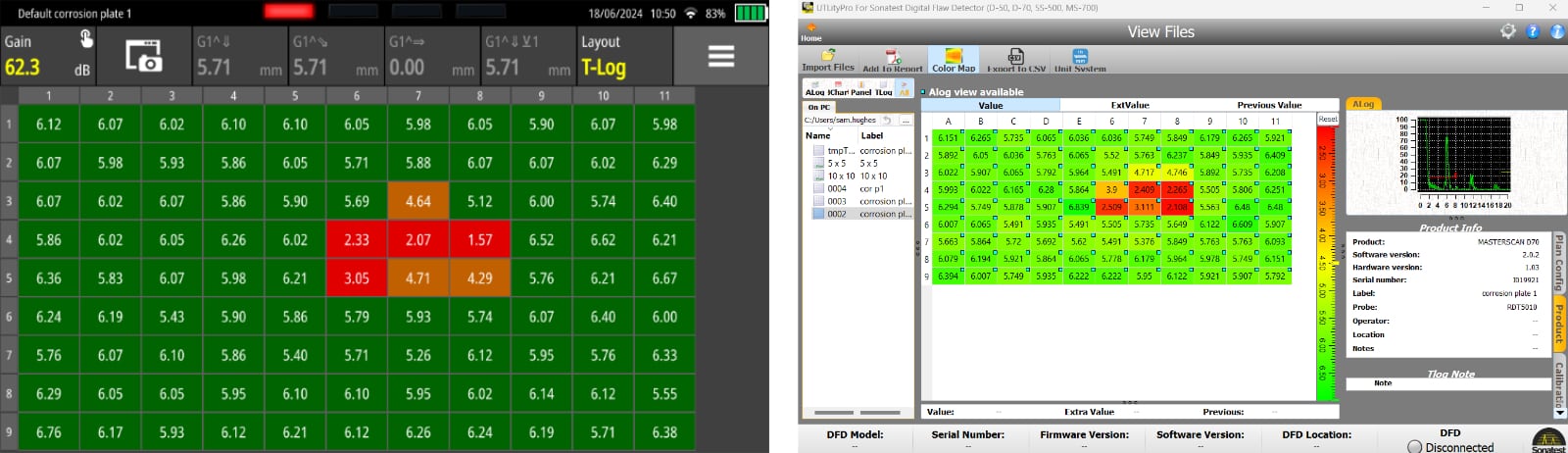

Fig. 3 - Wave and UTLity displaying colour pallets of results

CSV Data Files

Both the Wave and the PC UTLity software can export data as an Excel CSV file, enabling users to use the data for remaining life calculations, to compare to previous data sets to determine a rate of corrosion, or to import it into reports.

Fig. 4 - Exported CSV inspection data

---

Recommended Tool Package

---

Please contact our Applications Team if you have any questions. You can also find more solutions on our website.
