Masterscan D-70

Overview

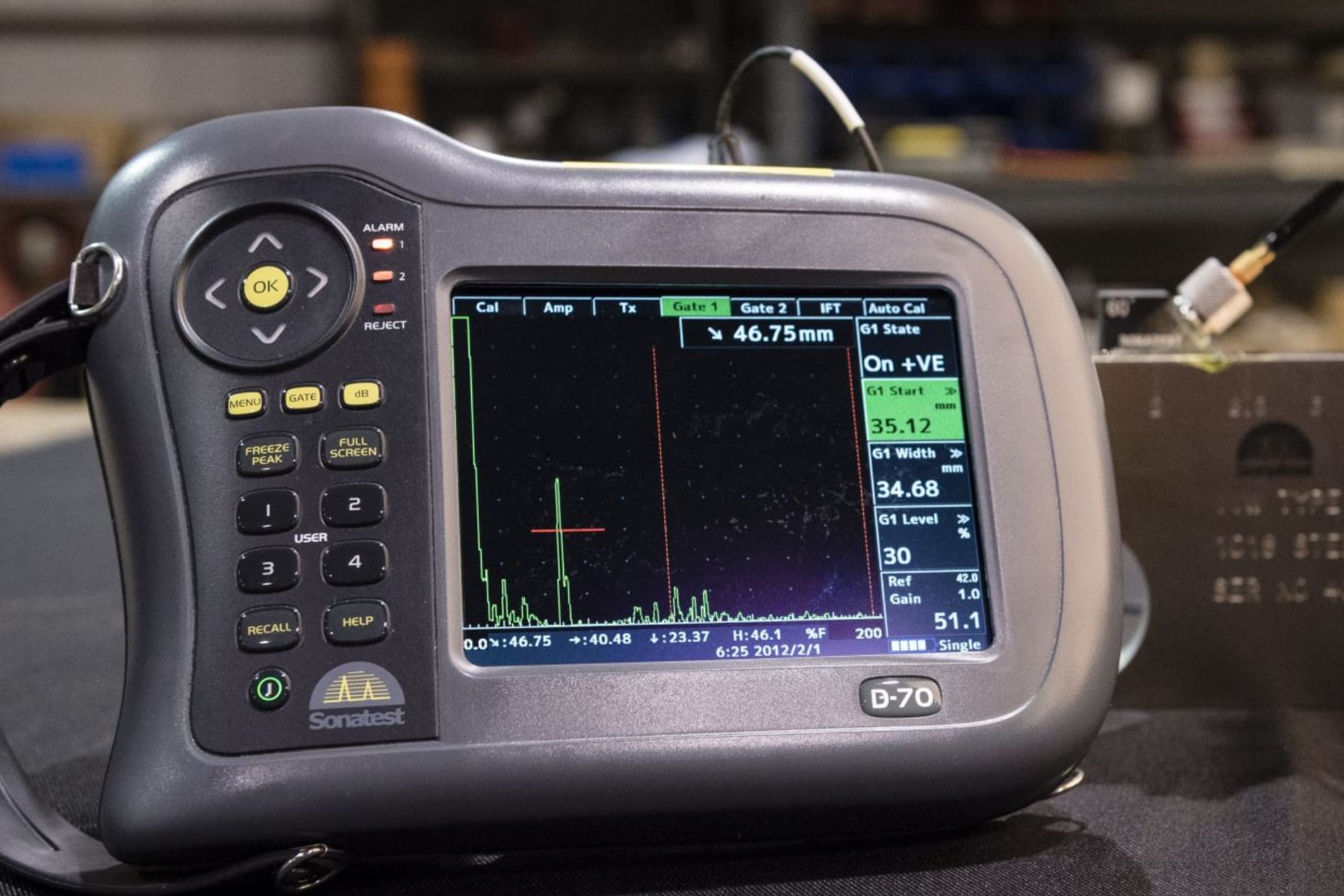

The Masterscan D-70 offers the inspector a fully capable and functional set of tools and software for inspection across all applications. Capabilities include encoded B-Scan, Advanced Thickness logging and Dryscan capability in a portable enclosure.

Features can be added and upgrades performed in the working environment, reducing downtime and increasing working flexibility. High levels of near surface resolution, penetrating power (450V pulser - square and spike) and excellent signal to noise ration are key functions in the Masterscan range.

Typical applications are Weld Fabrication, Corrosion Detection, Composite Inspection, Bond Testing, Forgings and Castings, Power Generation (including EMATS) and general UT inspection.


Features

Reliable, Rugged & Robust

An instrument's ability to perform in harsh environments with proven reliability is an important aspect of flaw detector ownership and this is enhanced by the Masterscan's outstanding battery performance which is up to 10.5 hours from full charge. The Masterscan's enclosure is constructed using automotive grade impact resistant materials, offering excellent water resistance. Explosive Testing MIL810-G standards have been passed, together with environmental testing which has confirmed the instrument fully functioning at temperatures above 55ºC. The Masterscan D-70 has a colour transflective VGA display and maximum readability is achieved through adjustable brightness and the choice of 9 colour palettes, including black-on-white LCD emulation mode.

Advanced Defect Sizing Tools as Standard

Weld and pipe inspection are major applications for the Masterscan D-70 and they are equipped with the latest software tools for defect sizing. The use of integrated sizing software reduces analysis time and speeds inspection. Multiple standard sizing techniques are essential for service companies working to different customer standards, especially as service work becomes more international and operators are required to work to different codes.

Sizing Techniques and Software Options include:

  • DAC (Standard)
  • Split DAC & DGS/AVG (Option)
  • TCG (Option)
  • Backwall Echo Attenuation (BEA) Option (requires TCG)
  • AWS (Option)
  • AVG/DGS (Option)
  • API (Option)
  • Interface Trigger (Option)
  • Corrosion Software (Option)
  • Dryscan Function (Option)

UT-Lity Data Management Software

UT-Lity software provides everything you need to manage your inspection data. The standard version is FREE with every instrument and gives you the ability to view, move and manage Calibrations, A-Scans, B-Scans and Thickness Logs both on the instrument and on your PC. With UT-Lity you can also create customised inspection report templates, cut-n-paste information to other applications and create printable pdf documents.

  • Load, store, manage files both on the PC and on a connected flaw detector
  • Save, analyse, colour code and export thickness logging data to spreadsheets/asset management software
  • Update the Flaw Detector and Firmware as and when updates become available on our website

 Ask an Expert   Download Brochure (464.1KB)   Request a Demo


[BACK TO TOP]


Specification

Test Range0-1mm (0.04in) up to 0-20,000mm (787in.) in steel at 5930m/s (19455f/s)
Velocity256 - 16000m/s continuously variable
ProbeZero 0 to 1000μs
Delay0-20,000m (800in) in steel at 5930m/s
Gain0 to 110dB adjustable in 0.1, 0.5, 1, 2, 6, 14 and 20dB steps
Test ModesPulse echo and transmit/receive. Single Crystal, Double Crystal and Pitch-Catch
Damping50 and 400Ohm damping selectable
Pulser100-450V -ve spike and square wave. Pulse Width from 30nS to 2500nS. Rise/Fall times <5nS into 50R load
P.R.F.Adjustable 5Hz to 6kHz. External sync also available
Screen Update Rate60Hz
RectificationRF, Full wave, +ve half-wave and -ve half-wave
Frequency Range8 selectable filter bands. i) 100kHz - 500kHz ii) 200kHz - 800kHz iii) 0.4MHz - 1.6MHz iv) 1.4MHz - 3MHz v) 3MHz - 8MHz vi) 7MHz - 15MHz vii) 9MHz - 21MHz viii) 1.6 MHz - 33 MHz (Wideband) Additional tuned low frequency pre-amp with Dryscan option
System LinearityVertical = 0.5% Full Screen Height (FSH). Horizontal +-0.2% Trace Full Screen Width (FSW)
Reject (Selectable)Up to 80% Linear reject (removes baseline noise without affecting indication amplitude) Or Up to 50% Suppressive reject (increase zero offset and reduces amplitude of all echoes) LED Warning when active.
UnitsMetric (mm), inch (in) or microseconds
DisplayColour Transflective VGA (640 x 480) TFT. Display area: 116.16 x 87.2mm (4.57 x 3.43in). A-Scan Area: 400 x 510pixels (normal), 460 x 620 (FS). Colours: 9 colour options with variable brightness.
Gate MonitorTwo independent gates for measurement and monitoring. Start and width fully adjustable over the entire range of the instrument. Levels adjustable from 0% to 100%, positive or negative triggering on each gate with audible & visual alarms. Gate resolution is 5nS.
ZoomExpands range and delay to cover the area set by Gate 1 start & width controls.
AGCAutomatic Gain Control automatically sets the signal in Gate 1 to a level between 10% and 90% FSH, tolerance between 5% and 20%.
Measurement Nodes
Mode 1Signal monitor, Gate alarms can be active but no measurements are displayed
Mode 2Depth and amplitude of first signal in gate
Mode 3Echo-Echo distance measurements
Mode 4Trigonometric display of beam-path, surface distance (including X-offset) and depth of indication from the inspection surface together with echo amplitude. Curved surface correction can be applied for convex and concave surfaces. Half-skip can be indicated on screen.
Mode 5Gate to Gate distance measurement
Mode 6Flank to Flank
Mode 7Beam Angle, calculated from beampath, hole radius and hole centre depth.
Measurement DisplayLive display and updates on screen at 3 times per second. Large display of a single measurement available.
ContourTrailing-Edge slew-rate control to reduce half cycles in rectified modes. Selectable from one of 6 levels.
Waveform SmoothingSelect from: i) None (both min and max values are displayed in the A-Scan) ii) Fill (Min values set to baseline value, produces a solid A-Scan) iii) Smooth (min values ignored, produces a clear outline A-Scan)
PersistenceCauses previous A-scans to “fade out” at a user-determined rate
Auto-CalProvides automatic calculation of velocity and probe zero from 2 reference echoes
Reference WaveformDisplays a previously stored A-log in a colour different from the active display: enabling a quick visual check of the differences
ClockBuilt in, battery-backed RTC keeps time and date. Visible on the status line, always stored with Panels, A-logs etc.
Internal Memory4GByte storage available for A-scans, panels, T-logs, B-logs etc. 450,000 Panels, 200,000 A-Logs, 300,000 B-Charts, 440,000 T-Logs
Active Peak MemoryRetains all A-scans on screen for echo-dynamic pattern analysis, with the active A-scan displayed in a separate colour
NotesAlphanumeric labelling for panel stores, A-logs, B-logs etc.
Display FreezeHold the current waveform on screen for off-line processing
Help KeyShows software and hardware information
Language SupportMultiple languages are selectable from a list including: English, French, Spanish, Russian, Chinese (Modern). Others are available on request
Encoder ConnectionLemo min 4-pin connector
Video OutputFactory Option
Proportional OutputsAvailable on 700M.
External SyncAvailable on 700M.
USB ConnectionInternal storage shown as Memory Device.
Transducer SocketsBNC or LEMO (factory option).
PowerBattery life for MS700 is 13.5 hours and for D-70 it is 10.5 hours.
Charger100-240 VAC, 50-60Hz.
EnvironmentalDesigned to meet IP67
TemperatureOperating -10°C to 55°C (14°F - 131°F). Storage -40°C to 75°C (-40°F - 167°F)
SizeH172mm x W238mm x D70mm (6.77in x 9.37in x 2.75in)
Weight1.7 kg (3.7lbs) with battery
Warranty2 year
Extended WarrantySonacover - extended 5 year warranty, including 4 calibrations.
Calibration StandardEN 22232-1 2020 (Detailed Specification available on request)
StandardsVibration to 514.5-5 Proc 1 Annex C Fig 6 Shock 516.5 Proc 1 15g/6ms Explosive atmospheres - MIL-STD 810G Method 511.5 Procedure I

 Ask an Expert   Download Brochure (464.1KB)   Request a Demo


[BACK TO TOP]


Accessories

Masterscan D-70: BNC and LEMO

Product CodeDescription
D-70BKITMasterscan D-70 Digital Flaw Detector BNC
Battery, Charger, Charger mains cable
User Guide
Calibration Certificate
Certificate of Conformance
Carry Bag
UT-Lity and USB cable
Display Window Cover
Ultrasonic Couplant

Accessories & Spares

Product CodeDescription
800208CH700 Battery Charger
242173D-Series Battery Pack
195167D-Storm Case
195194D-Series Storm Case - Eco
195123D-Series Protective Sleeve
195163D-Series Carry Bag
165027RCA Video OutPut Cable
165028USB Type A Male Cable Assy
152120Cable DFD to PC
165040Proportional O/P lead
145221Masterscan Replacement Screen Cover
145324Masterscan Screen cover
MPS-701EUFlaw Detector Mains Pack
MPS-701UKFlaw Detector Mains Pack
MPS-701USFlaw Detector Mains Pack
192025US Mains Lead Plug
192026UK Mains Lead Plug
192027Euro Mains Lead Plug
D-SERIES-SITE-PACKSite Pack Option
136168BNC to BNC 50 Ohm
136169BNC Female to LEMO Male
136171Lemo (M) to Lemo 00 (F)
152018BNC (M) to LEMO (F) Adaptor
KMA KIT 1Stand Support Pack
KMA-01Magnetic Mt'g Bracket Assy
