    Cables

    Our range of cables and adapters work in conjunction with your Sonatest NDT equipment.

     Request a quote

    Cables

    Overview

    Specialist cables for your Sonatest NDT equipment to meet your specific application needs.


    Features

    • All cables are 2 meters / 6 feet in length, except where marked #, these are 1m / 3ft in length.
    • Specific cable lengths can be manufactured, to order, please contact us for further information.

    Cables Frequently Asked Questions

    1. What types of cables are available for Sonatest NDT equipment?
    2. Can I order cables in custom lengths?
    3. How do I choose the right cable for my equipment?
    4. Are there adapters available to modify connectivity?

    What types of cables are available for Sonatest NDT equipment?

    At Sonatest, we offer a diverse range of cables to suit your specific requirements. Our selection includes various cable types such as Lemo 1 to Subvis, Lemo 1 to Microdot, and BNC to Lemo 00, among others. Each cable type is available in single and twin configurations to meet your needs for different applications.

    Back to top


    Can I order cables in custom lengths?

    Yes, you can contact us to discuss custom or specialised cable lengths. Our standard cables cover a variety of needs, but we understand the importance of tailored solutions for specific applications.

    Back to top


    How do I choose the right cable for my equipment?

    Selecting the correct cable depends on the type of connection required for your Sonatest NDT equipment. In the Americas, we usually sell instrument with BNC while the rest of world uses the LEMO 00 connector. Check the ports of your devices and match them with the specified cable type listed in our specification table. If you need further assistance, our customer service team is ready to help with your queries.

    Note: it is important to check if you are about to use a PA splitter connector, it may have other connector types than your UT instrument channels.

    Back to top


    Are there adapters available to modify connectivity?

    Certainly, our range includes adapters that provide flexibility in connectivity options. For instance, we have adapters such as UHF (M) to BNC (F), BNC (M) to LEMO1 (F), and many more. These adapters are essential for ensuring compatibility between different types of connections and maximising the functionality of your equipment. If you are unsure about the male-female side, please contact our customer service team.

    Back to top



    Specification

    Cables

    Cable TypeSingle / TwinPart NoProduct Code
    Lemo 1 to SubvisSinglePC-LS152056
    TwinTPC-LS152061
    Lemo 1 to MicrodotSinglePC-LD152057
    TwinTPC-LD152062
    Lemo 1 to Lemo 00SinglePC-LZ152076
    TwinTPC-LZ152088
    Lemo 1 to Lemo 1SinglePC-LL152074
    Lemo 1 to UHF*SinglePC-LU152059
    Lemo 1 to BNCSinglePC-BL152055
    TwinTCP-BL152075
    BNC to SubvisSinglePC-BS152022
    TwinTPC-BS152023
    BNC to MicrodotSinglePC-BD152052
    TwinTPC-BD152060
    BNC to Lemo 00SinglePC-BZ152086
    TwinTPC-BZ152087
    BNC to BNCSinglePC-BB152053
    TwinTPC-BB152068
    BNC to UHF*SinglePC-BU152058
    BNC to Lemo 1SinglePC-BL152055
    Lemo 00 to Lemo 00SinglePC-ZZ152122
    TwinTPC-ZZ152089

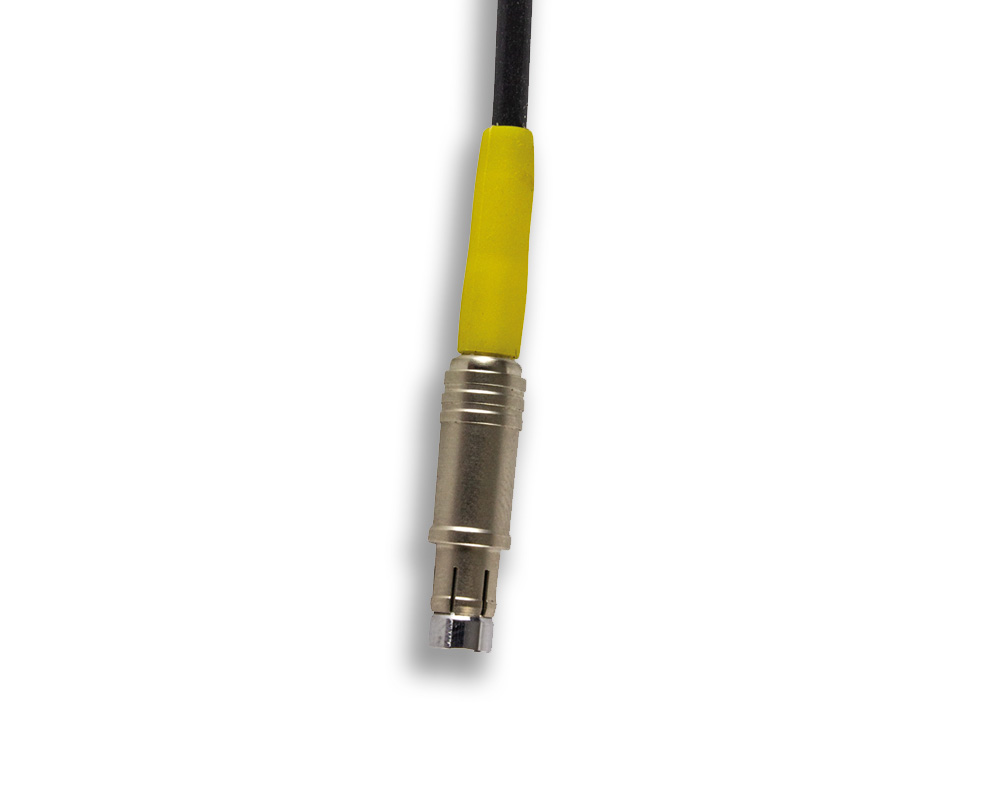

    Fischer to Lemo 00SinglePC-FZ152124
    TwinTPC-FZ152129
    Lemo 00 to MicrodotSinglePC-ZD152102
    TwinTPC-ZD152115
    Lemo 00 to SubvisSinglePC-ZS152123
    TwinTPC-ZS152108

    Adapters

    (F) Female (M) MaleOrder Code
    UHF (M) to BNC (F)136166
    UHF (F) to UHF (F)136167
    BNC (M) to BNC (F)136168
    BNC (F) to LEMO1 (M)136169
    BNC (M) to LEMO1 (F)152018
    BNC (M) to UHF (F)136178

    BNC Connector

    Lemo 00 Connector

    Lemo 1 Connector

    Microdot Connector

    Subvis Connector

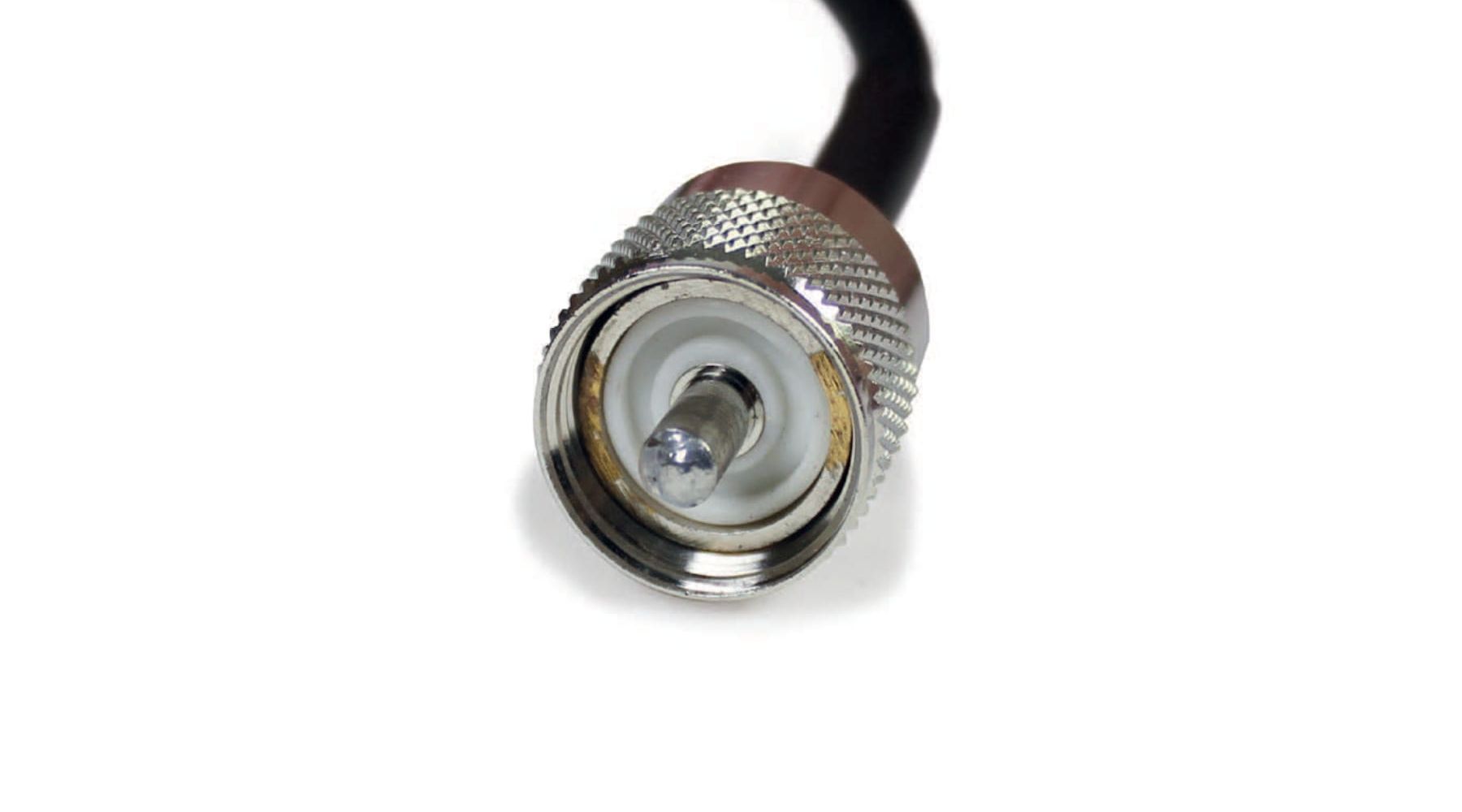

    UHF Connector
