WAVE


Overview

What if you could tailor the settings on your UT device and alter it to your own process and people’s needs? An instrument where all the useful parameters are pre-set and available in less than two clicks?  Now you can.


Introducing WAVE by Sonatest. It integrates the latest technologies available in order to create a revolution in the ultrasonic non-destructive testing equipment market.
Not only is it innovative, but the customisable interface also optimises the daily workflow, and a unique and embedded interactive scan plan, with ray-tracing capability and simulation tools, consolidates your results.

Its wifi capability allows you to access it anywhere in the field, eases data transfer, application installation and manages calibration date and software version.

See how WAVE can help your industry

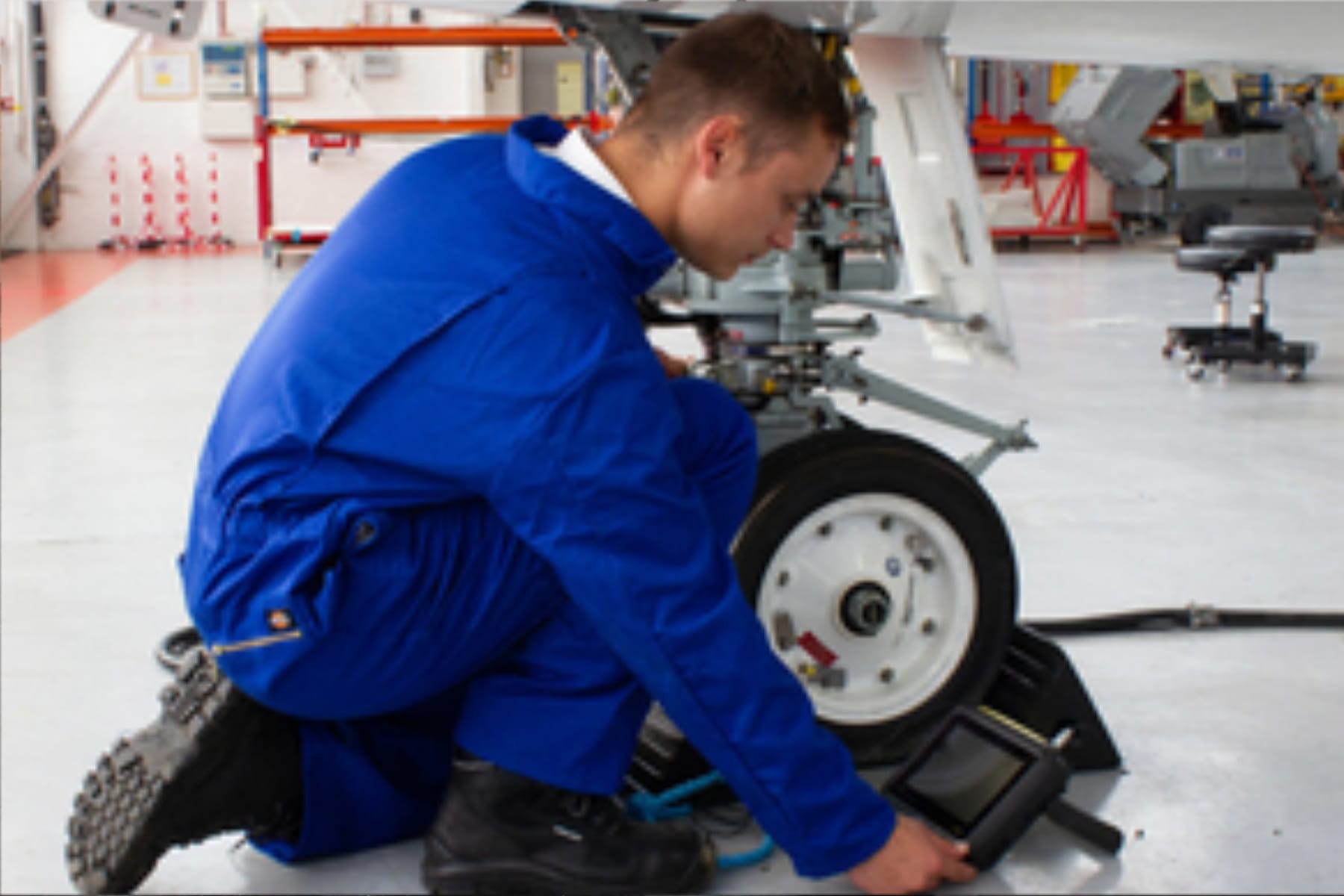

Aerospace

Manufacturing

Education

Features

Interactive Scan Plan

#

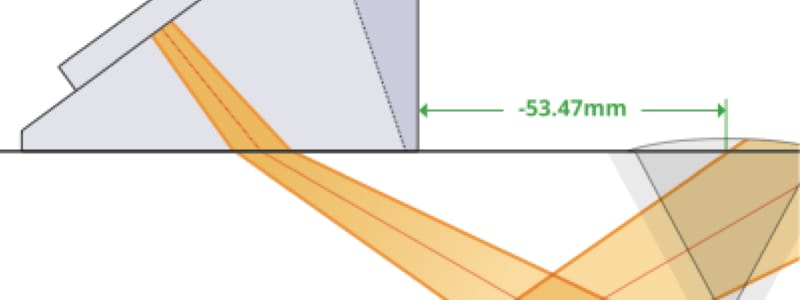

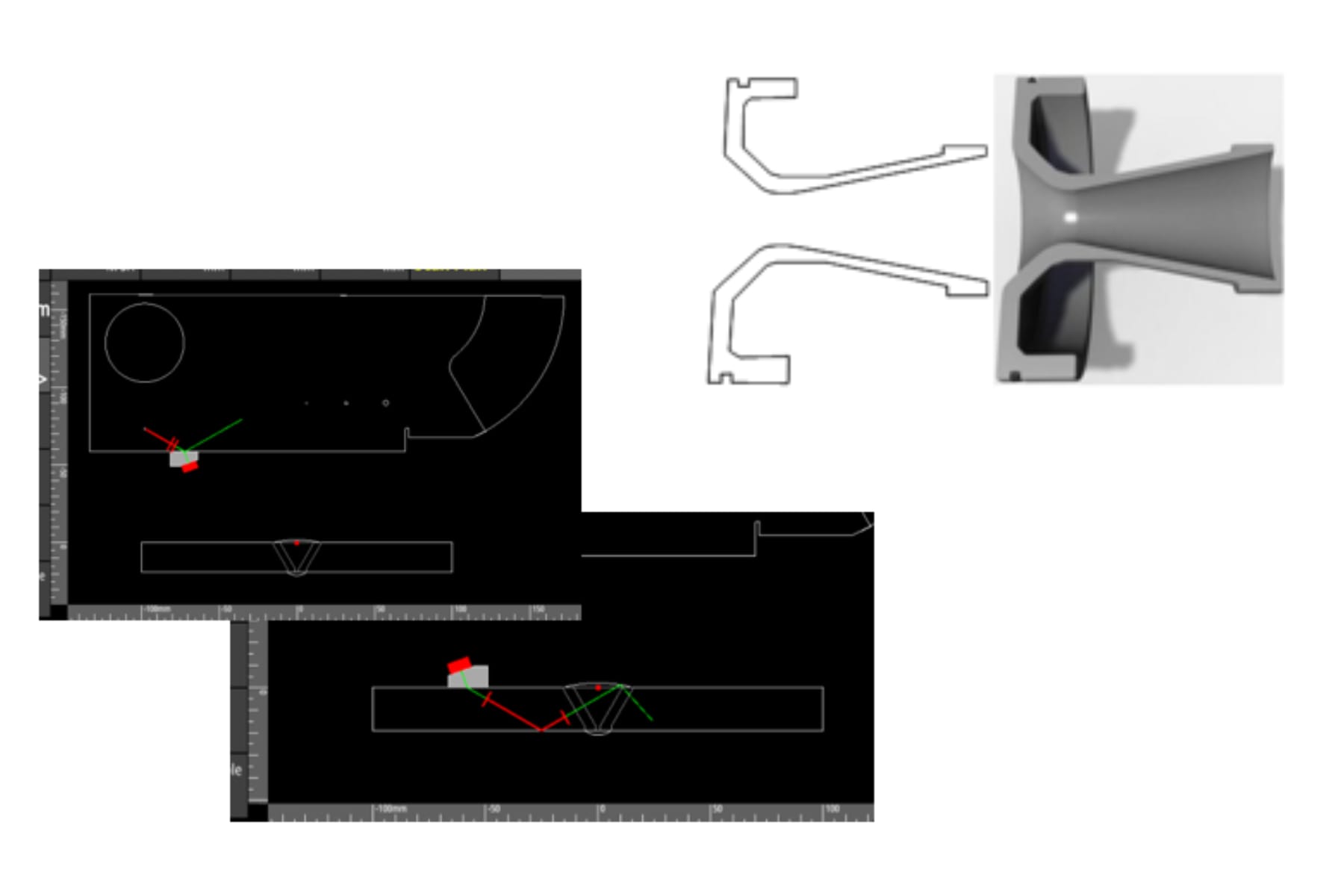

The WAVE interactive scan plan has been developed to ease diagnostics on the inspected part.  The scan plan can reproduce complex geometries such as Curved parts and T-Joints.  Combined with a real-time Raytracer, this unique feature facilitates the distinction between a real flaw and a geometrical indication.  Thus avoiding unnecessary repair.

Application Concept

#

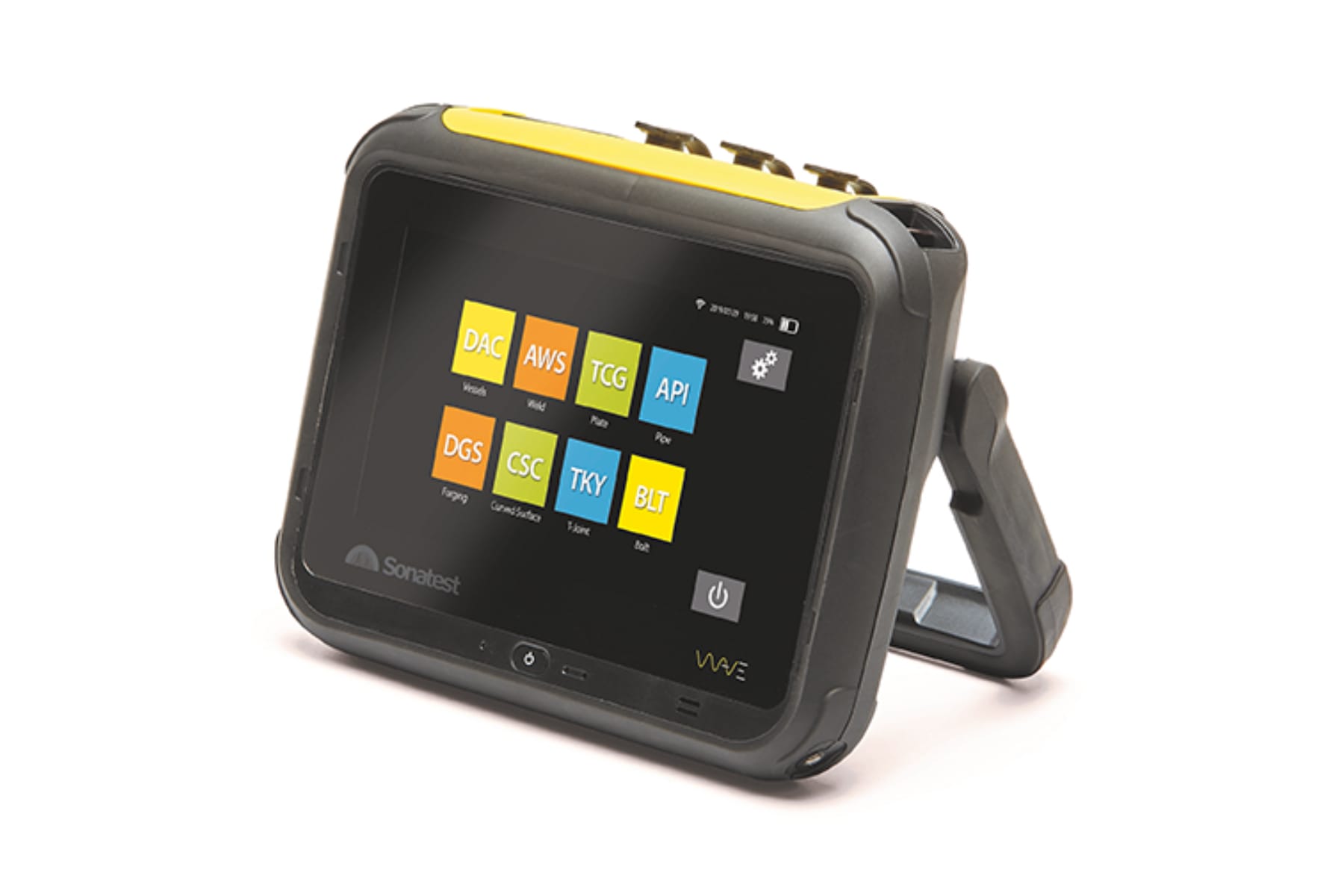

The WAVE application concept combines conformity and performance which allows the operator to customise the user interface according to their specific procedure.

The intuitive user interface with an easy to use display will guarantee workflow optimisation as well as preventing potential operational errors.

UTouch Technology

#

UTouch Technology allows your device to operate in the same way as a mobile phone.  Combined with rugged components and an intelligent algorithm which makes the distinction between couplant and finger.

WAVE Companion



#

The WAVE Companion software offers an environment where dedicated predefined applications setups are created and uploaded to Wave platform.

Once created, the new app setups are transferred and installed on the unit via wired (USB-C / ethernet) or wireless network. The default app allows access to all functionalities and features where the user can modify the entire settings.

To download the latest Wave Companion Software please

Register your product here

Resources

Multi-frequency Inspection of a graphic/epoxy laminate composite with variable thickness

Multi-frequency Inspection of a graphic/epoxy laminate composite with variable thickness

Focusing on the analysis of composite material C-scans acquired at various frequencies. Using the proper analysis software makes it possible to assemble all the C-scans to create images which represent the part inspected.

Ultrasonic Rail Solid Axle Inspection with the Sonatest Wave

Ultrasonic Rail Solid Axle Inspection with the Sonatest Wave

This type of inspection needs to be done after manufacturing of the axles, as well as multiple times throughout their working life.

Wave Nozzle Inspection

Wave Nozzle Inspection

Reflections on an A-Scan can be difficult to interpret. They may look as if they are coming from within the weld, but in fact, due to the probe positioning around the part, these reflections may come from the land area behind the weld.

Structural Welds – AWS Inspection

Structural Welds – AWS Inspection

The Sonatest WAVE instrument with its Interactive Scan-Plan can significantly optimise the visualisation of the weld joints since the A-Scan signal is displayed along the sound path, allowing a comprehensive identification of potential defect locations.

Inspection of a Welded T-joint

Inspection of a Welded T-joint

The most common defects in T-joint welds are cracks, lack of fusion and lamellar tearing all of which can be inspected with conventional ultrasonic methods.

Spot-Weld Ultrasonic Inspection

Spot-Weld Ultrasonic Inspection

Sonatest rubber tips are designed to be used with the RDT delay line family and offer an effective alternative to the more traditional approach of water filled contact probes.

Polyurethane Adhesive Bond Inspection

Polyurethane Adhesive Bond Inspection

Testing of a single adhesive bond is not always straight forward task using a simple A-Scan.

Media

Gallery

  • UTouch

    UTouch

  • slide
  • slide
  • slide
  • slide
  • slide
  • slide

WAVE Tutorial Videos

Accessories

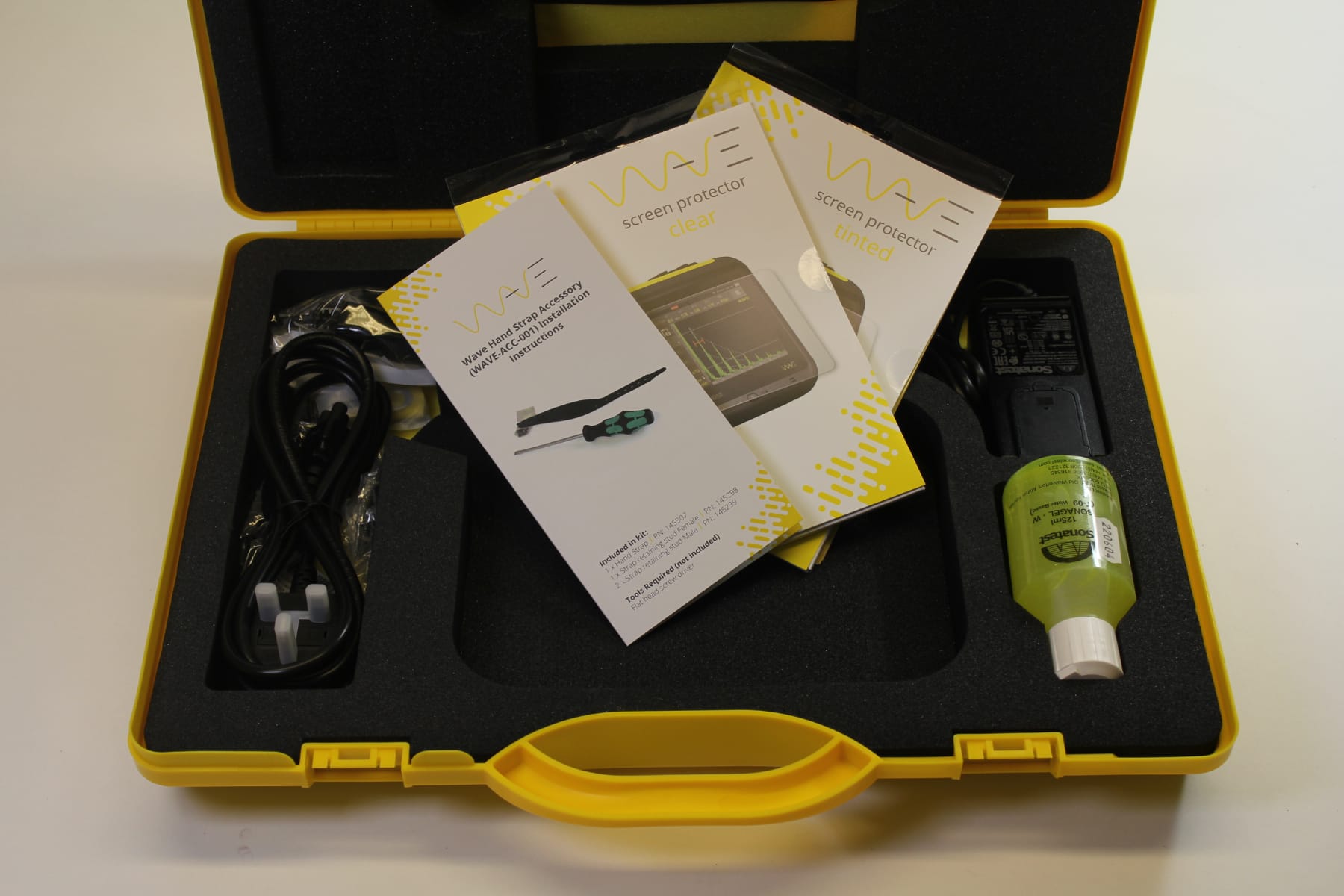

WAVE Standard Kit Lemo

Product Number Description
  WAVE Lemo unit
195000 WAVE Carry Case
242000 WAVE Smart Li-ion Battery Pack
800000 WAVE AC/DC Battery Charger
WAVE-ACC-001 WAVE Hand Strap Assembly
136001 Ethernet to USB Adaptor
192001 Ethernet Cable - 1 m
147441 Quick Start Guide
T-09 125 ml Bottle of Water-based Couplant



Accessories

Product Number Description
WAVE-ACC-001 Wave Hand Strap

WAVE-ACC-002

4-Point Working Harness
WAVE-ACC-003 Single Point Safety Harness



WAVE Standard Kit BNC

Product Number Description
  WAVE BNC unit
195000 WAVE Carry Case
242000 Wave Smart Li-ion Battery Pack
800000 WAVE AC/DC Battery Charger
WAVE-ACC-001 Wave Hand Strap Assembly
136001 Ethernet to USB Adaptor
192001 Ethernet Cable - 1 m
147441 Quick Start Guide
T-09 125 ml Bottle of Water-based Couplant



Screen Protectors

Product Number Description
WAVE-ACC-004 Screen Protector Kit (CLEAR)
WAVE-ACC-005

Screen Protector Kit (TINT)



Sonatest offers one FREE WAVE Companion software licence with each instrument.

Downloads

DateTitleVersionSize
0420WAVE Full SpecificationDownload
0919Inspection of a Welded T-joint Application Note Download
0910Polyurethane Adhesive Bond Inspection Application Note Download

WAVE Tutorial Series

DateTitleVersionSize
0919WAVE Tutorial Series - Automatic Calibration Download
0919WAVE Tutorial Series - Time Corrected Gain Download
0919WAVE Tutorial Series - Distance Amplitude Curve (DAC) Download
0919WAVE Tutorial Series - UTouch Technology Download

Brochure Download

Download Brochure (3.22 MB)

In order to download your Wave Companion software

Please register your product here
