CREO bolt scanners are a set of 3 units capable of the encoded scanning of 1” to 3” diameter studs, and surface scanning circumference up to 400mm diameter. The modular design of these scanners allow for multiple configurations of probes, holders and scanning attachments for differing bolt types and dimensions.

 Request a quote


Modular Scanner

The unique design incorporates a direct drive to the encoder meaning the scan can be completed with zero chance of encoder slip. Locational accuracy is achieved by cam linked mounting legs keeping the probe in the centre of the stud. Creo Modula is adaptable to cover a range of varying inspections, custom designed attachments are also available on request.

Slim Scanners

The Slim Scan T1 and T2 are low profile scanners specifically designed for bolt inspection where there is poor clearance to the top of the bolts. Magnetically attaching to the bolt heads, these are easy to attach and perform the scan and between the two, cover a range of 1” – 3” bolt diameters.


  • With their modular design and internally built& encoders, these scanners can be deployed in multiple configurations whilst remaining robust and suitable for extensive in-field operation
  • Modular Scanner - Cam-linked adjustable legs ensure that when moving from one size of stud to another scanner is always centralised and custom base plates allow for adjustable probe stand-off
  • Slim Scanners - Magnetic holders grab and securely hold the scanner to bolt heads / nuts for an easy scan
  • Modular Scanner - In a few simple steps the probe basket can be swapped with another attachment to setup for a completely different inspection such as with the magnetic base to allow for circumferential scanning of cylindrical components
  • The internally mounted encoder is directly driven and as such means there is no opportunity for encoder slippage, often experienced when using a wheel encoder

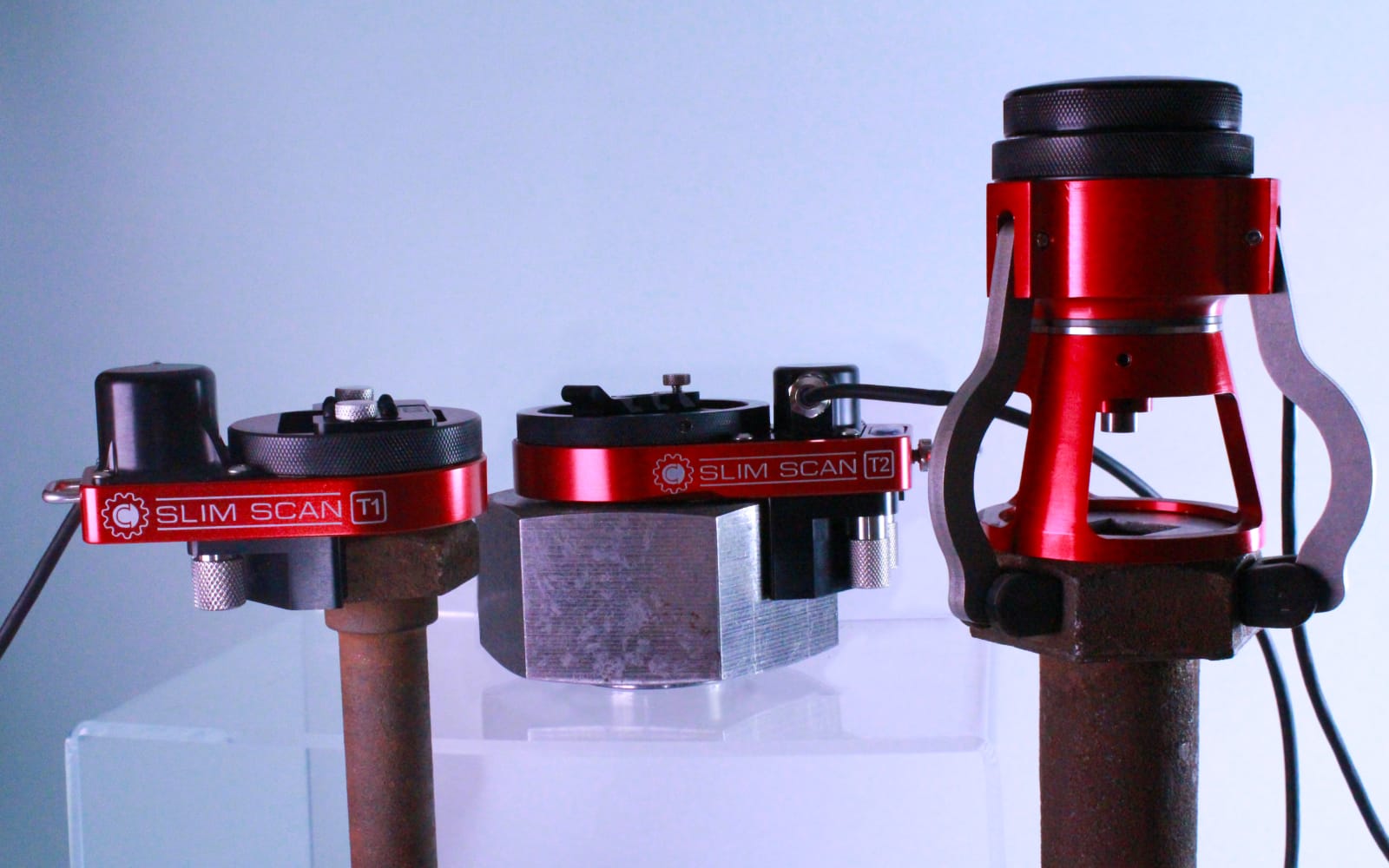

CREO Modular Scanner Packages

Product CodeDescription
CX-1001Bolt Scanner 1 1/5" to 3" Stud
CX-1002Bolt Scanner 1" to 3" Stud
CX-1003Bolt Scanner 1" to 3" Stud & Face

Compatible with the Sonatest X2A and X2B Series probes.

NB: When ordering your probes please specify you require a side exit cable.

X2 Probes

CREO Slim Scanner Packages

Product CodeDescription
CX-2001 (T1)Slim Scanner 1 to 1 5/8"
CX-2002 (T2)Slim Scanner 1 5/8" to 3"

Compatible with Sonatest X2A and X2B series probes.

X2 Probes

Modular Scanner Package

Modular with X2B Probe

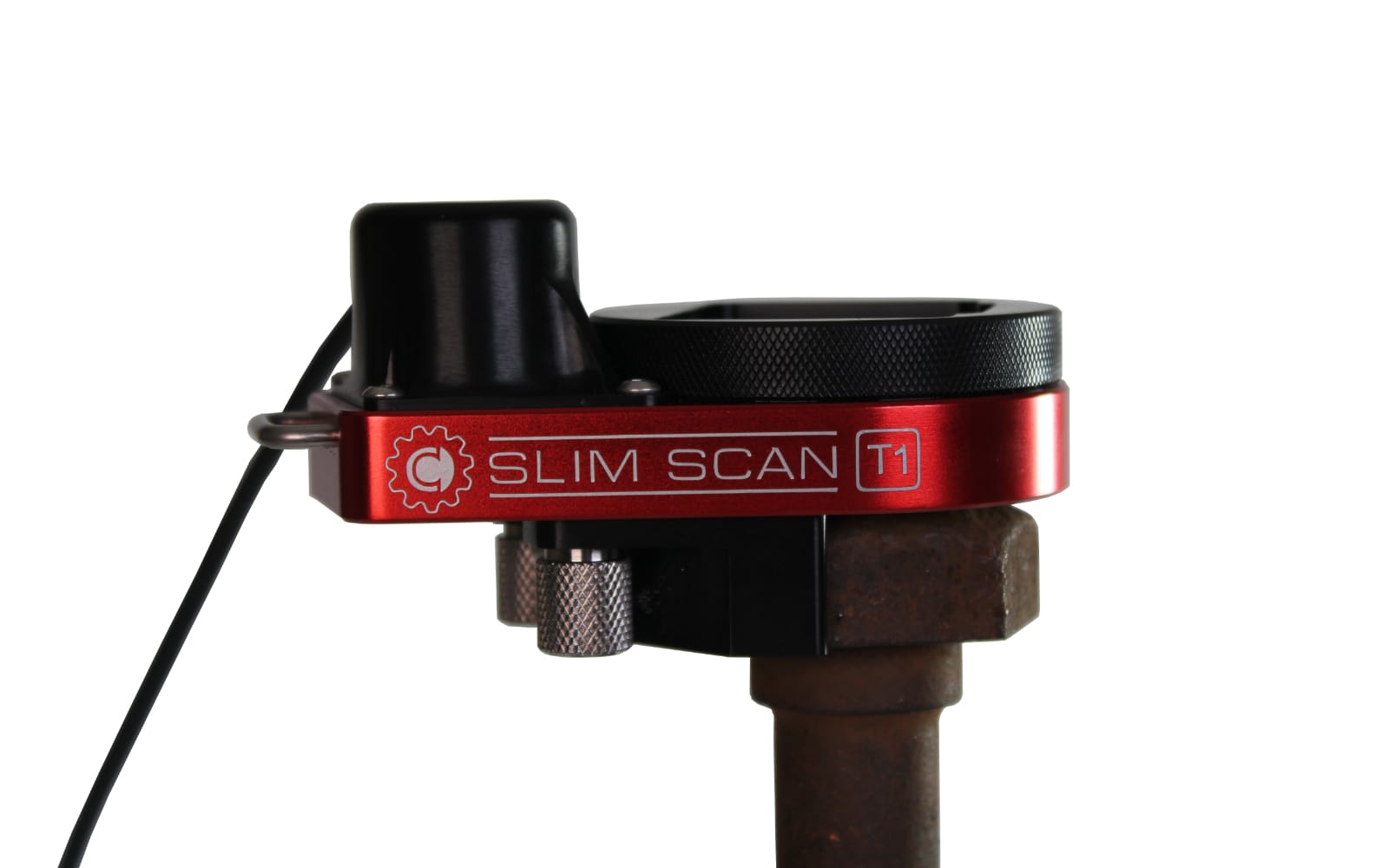

T1 Slim Scanner
