Veo3 Inspect with Confidence
Retaining the best features of the established Veo line, the new Veo3 now offers a PCAP touch interface, user templates, and more importantly, live TFM.
Key design elements of the Veo3 are user and performance focused. Based on superior and innovative digital technology and its live concurrent multi-scan / multi-technique capabilities, the Veo3 truly helps you to inspect with confidence.
The Veo3 multi-techniques allow inspectors to keep inspecting as they always have, with no need to change their current workflow and by doing so, users can benefit from the additional resolution and sizing performance of TFM while carrying out an already approved, trusted and reliable procedure.
Superior Digital Technology
The Veo3 offers superior data throughput and unsurpassed computational capacity. It delivers fast and accurate results using an impressive 32 channel PA beamformer that provides exceptional SNR, using enhanced digital signal processing.
Data file size is not a concern for the Veo3 thanks to its 64-bit Linux operating system because it can count on a fast 128GB SSD memory capacity allowing you to record huge amounts of information in a single acquisition file.
With its advanced technology the Veo3 is unique in allowing real-time multi-scan/multi-technique capabilities. Simultaneous TFM, PA and TOFD views are now possible.
Intuitive Menus and Workflow
The intuitive menu system is application and workflow driven, with set up and operation swiftly becoming second nature. Integrated help and wizards guide the user through scan set up whilst optimisation tips ensure the Veo3 always performs at the highest level. Fast and efficient wizards for sound velocity; wedge delay, TCG, DAC, TOFD setup and encoder calibration are all provided as standard.
The inspection plan shows the operator in 3D where probes are positioned on the test part, simplifying the inspection set up and providing an inspection reference for reporting. Using the latest computer technology, data can be permanently recorded for processing and report generation. All adjustments to focal laws are instantaneous, with angle resolution to 0.1° and up to 1024 focal laws without loss of performance.
With its unique architecture the Veo3 can generate up to six live TFM scans, produced from multiple FMC sources on different probes, and also generates TFM images of up to 500k pixels with a maximum resolution of 100 pixel per mm without limiting the number of pixel per axis.
All of the data received during Full Matrix Capture (FMC) scanning can be recorded on the Veo3. As a result, further detailed analysis can be performed including comparison with previous inspection data to identify trends and flaw/corrosion growth rates.

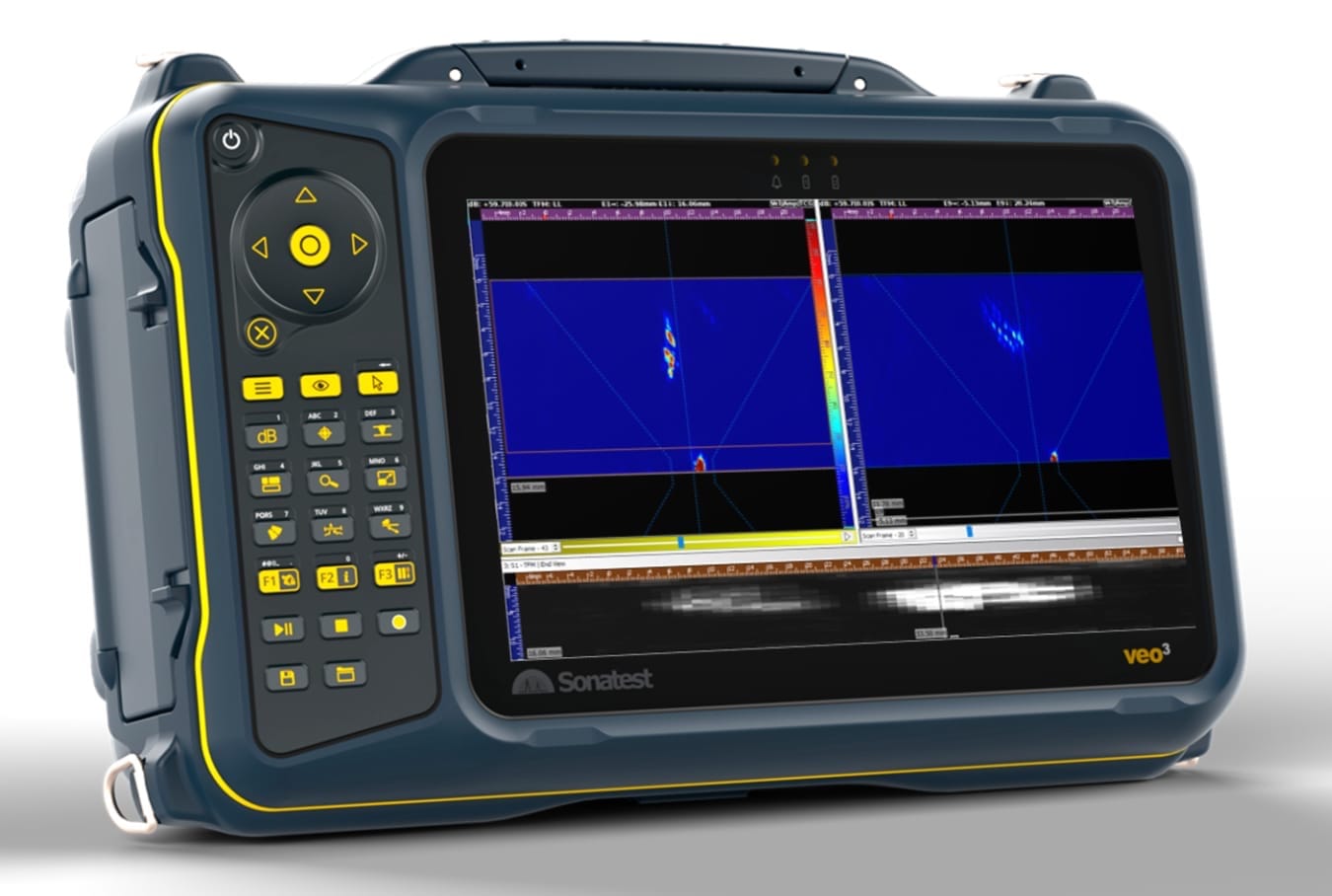

The Veo3 can combine up to 4 live TFM modes. As known as TFMi™, the details of the defects have never been so close to the reality. That imaging scan provides a high-precision height assessment and an improved shape accuracy compared to conventional PA inspections.
The ability to characterise the type of defects is now effortless. This technique has indeed demonstrated superior results on weld analysis.
Create, Analyse, Report

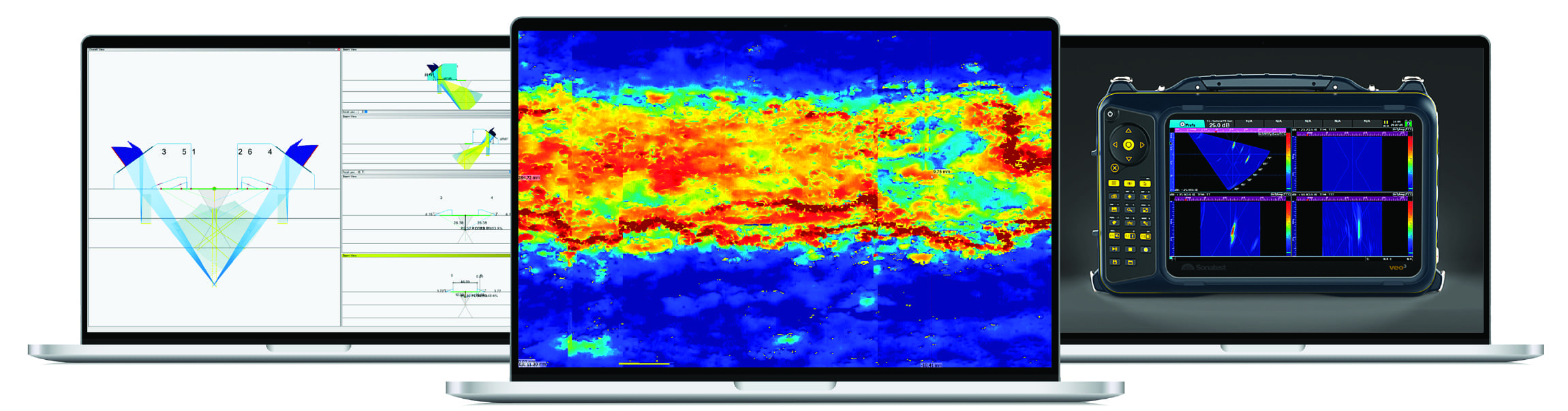

UTstudio+ makes inspection data management easy.
Loaded with a comprehensive user interface, data analysis and setup file construction become natural and straight forward. From customised views to additional gates, measurement tools or refined colour palettes, UTstudio+ helps you generate extended reports and much more.
Suitable for TFM, phased array and conventional ultrasonic technologies, UTstudio+ is able to accomplish amazing things and get the job done for a multitude of simple advanced applications.
One UTstudio+ licence FREE with your Veo3 purchase
Stitch, Analyse, Export
UTmap is analysis software that creates a Tiled Scan (T-Scan) and generates small to large images of the inspection results. Each C-Scan can be positioned or stitched together to form a T-Scan and represent the part geometry. Once assembled, the T-Scan represents a meaningful image for analysis and reporting.
UTmap also offers features including the ability to import drawings, outlines and information as images to overlay on the T-Scan and automatically providing precise flaw data and dimensions.
Review, Collaborate, Trust
Loaded with comprehensive user interface, inspection data and results are now freely accessible to anyone who wants to review them. From customised views to additional gates, measurement tools or refined colour palettes, UTview helps sharing results with collaborators to get the job done faster.
Share, Control, Transfer

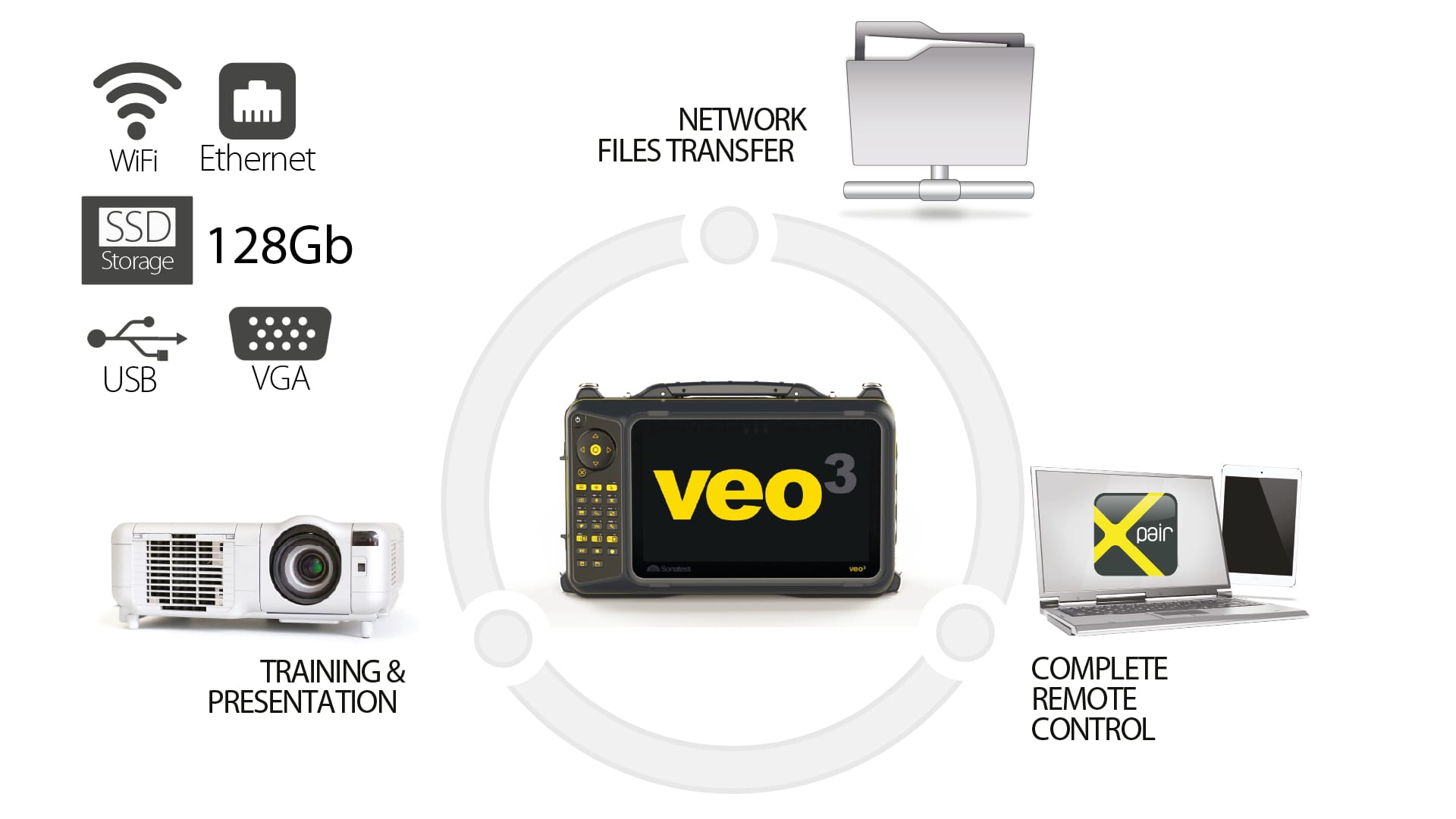

Using Sonatest’s Xpair software application, Veo3 can be fully used and controlled remotely, via a simple network connection.
Xpair is a PC-based software application solution to manage data transfer and remote control of instruments in the field wherever a network connection is available. Moreover, with the Xpair Cloud option, a user can access and remotely pilot the instrument of a colleague located 1000s of km away using a mobile or wired internet connection.
Inspection of Nozzles using the Veo3 and Scannner
Traditional UT inspection is time consuming, creating a scan plan and then performing the scan using multiple transducers. When using the Veo3 and Nozzle Scan the set ups can all be done offsite, thereby substantially reducing and easing site work.
Flange Inspection PAUT
Phased array gives the ability to inspect flanges without having to take them apart, resulting in quicker and cheaper inspections.
Phased Array Bolt Inspection
Traditional methods for checking bolts include removing and visually checking for any cracking, this not only takes a long time but can also cost a huge amount of money
High Temperature Hydrogen Attack (HTHA)
High temperature hydrogen attack (HTHA) is an irreversible deterioration of the mechanical properties of steel due to the reaction of hydrogen with carbon at temperatures in excess of 200°C.
Advanced Corrosion Mapping
The WheelProbe 2 features a captive array in an adaptive rubber wheel making it a perfect corrosion mapping solution for large surface.
Comparison of Corrosion Mapping Solutions using Phased Array and Conventional UT Techniques
There are many kinds of corrosion inspection solutions and choosing the right one may be complex.
Small Bore Welded Pipe – Double Sided Inspection
The Bracelet Scanner is designed specifically for inspecting circumferential welds in small bore pipework.
Long Seam Weld Inspection – Encoded (Semi-Automatic)
The tools in this package are specifically selected to provide an easy and accurate solution for the semi-automatic encoded inspection of long seam welds.
Curved Surface Correction (CSC) for Long Seam Weld Inspection
Phased Array inspection of curved components can be challenging, especially for seam welds in small diameter or heavy wall pipes as inspection software tools and accessories are generally designed for flat surfaces.
True Advancements for Longitudinal Seam Weld Inspection in Phased Array
Phased Array inspection of curved parts brings some real technical challenges.
Standard Model: BNC
Veo3 16:64PR BNC
|Veo3 16-64PR/2UT:PR BNC|
|SW-VEO3 PA32||Upgrade to 32 pulser/receiver|
|SW-VEO3 PA128||Upgrade to 128 channels|
|SW-VEO3 CSV||Export view data to CSV file|
|SW-VEO3 PACSC||SW Option: Activate PA Curved|
|SW-VEO3 CLOUD||SW Option: Xpair Cloud Remote|
|SW-VEO3 FMC/TFM||FMC/TFM Post Process Option|
|SW-VEO3 LIVE TFM||Live TFM Software|

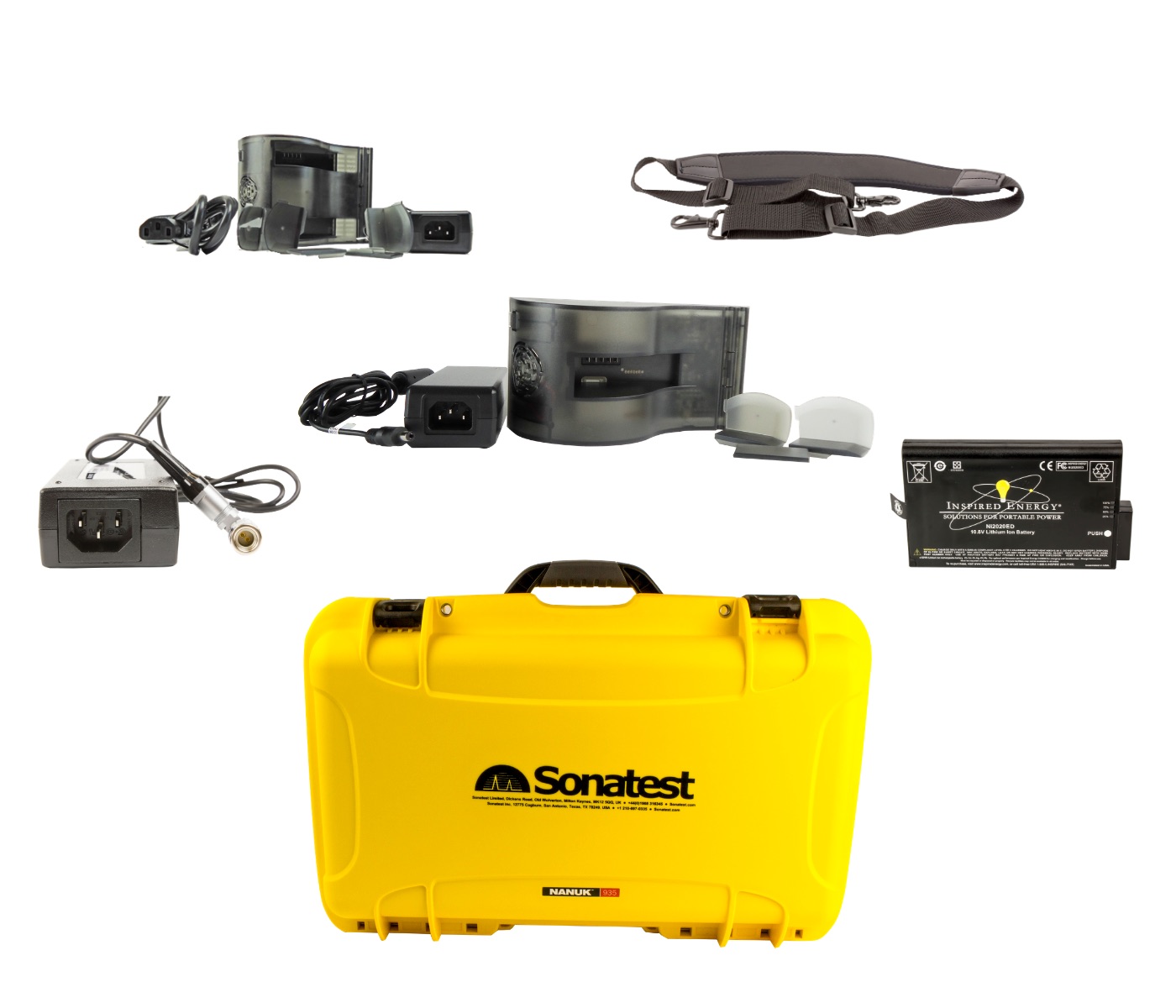

|Part Number||Standard Kit Content|
|Veo3 Phased Array Flaw Detector|
|242171||2 x Lithium Ion Batteries|
|145408||External USB Stick 8gb G3|
|800423||PA 15V 4A AC/DC Power Adapter|
|147320||Quick Start Guide - Hard Copy|
|147424||User Manual & Quick Start Guide USB|
|VEO3-ACC-001||Screen Protector (CLEAR)|
|VEO3-ACC-002||Screen Protector (TINT)|
|UTSTUDIO||UTstudio Standard License|
Standard Model: LEMO
|Veo3 16:64 LEMO||Veo3 16:64PR/2UT:PR LEMO|
|UTSTUDIO||UTstudio Single License|
|UTMAP||UTMAP Single License|
|Xpair||Xpair Single License|
|UTVIEW||UTVIEW Single License|
Accessories & Spares
|242171||Lithium Ion Battery|
|800423||PA 15V 4A AC/DC Power Adapter|
|800424||Single Bay Battery Charger|
|800422||Dual Bay Battery Charger|
|196102||7 Ltr Portable Hand Spray Kit|
|165281||Compact USB Wi-Fi Router|
|147390/147320||Quick Start Guide|
|147424||Manual & Quick Start Guide USB|
|147321||Veo3 User Manual|
|VEO3-ACC-001||Veo3 Screen Protector (Clear)|
|VEO3-ACC-002||Veo3 Screen Protector (Tinted)|
|VEO3-ACC-003||Veo3 XL Storm Case|
|TST-0007||Type B PA Block (CS)|
|TST-0008||Type B PA Block A|
|149342||PA Calibration Block (MS)|
|149118||AMK/MPAUT Block (MS)|
|149352||Type A PA Block (MS)|
|149206||Navship Test Block|
|AXYS-001||AXYS Clamp & Encoder 2.5m LEM1|
|AXYS-002||AXYS Clamp & Encoder 5m LEM1|

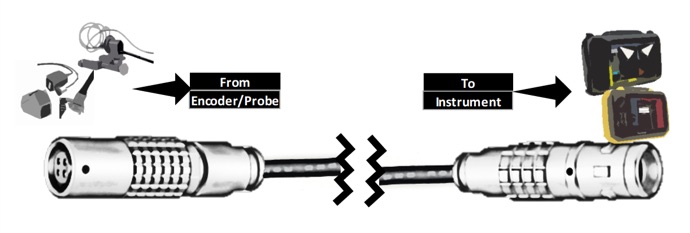

Encoder & GPIO Adapters
|From: Connector||To: Connector||From: Encoder/Probe||To: Instrument||Instrument(s) Supported|
|ADAP-003||ENC-ADAP – veo 2 axes to Prisma 2 axes||2xLemo8||1xLemo8||Veo 2 axes||Prisma 2 axes||
|ADAP-011||ENC-ADAP – MX to veo||HD15||Lemo8||MX||Veo||Prisma & Veo|
|ADAP-012||ENC-ADAP-SX-MX2 to Veo||Lemo16||Lemo8||SX-MX2||Veo||Prisma & Veo|
|ADAP-001||ENC-ADAP- veo 1 to MX||Lemo8||HD15||veo 1||MX||MX|
|ADAP-002||ENC-ADAP- veo 1 to SX-MX2||Lemo8||Lemo16||veo 1||SX-MX2||SX-MX2|
|ADAP-015||ENC-ADAP-RS+ & RS2 to veo 1||Lemo7||Lemo8||RS+ & RS2||veo 1||Prisma & Veo|
|ADAP-019||ENC-ADAP-veo 1 to RS+ & RS2||Lemo8||Lemo7||veo 1||RS+ & RS2||RS+ & RS2|
|ADAP-020||ENC-ADAP-MX2 2 axes to veo 2||Lemo16||Lemo8||MX2 2 axes||veo 2||Prisma & Veo|
|170126||I-Pex Quick release Plug Pin Cover||Quick IPEX Probe|
Phased Array Adapters or Splitters
|ADAP-005||PA-Splitter – IX64 to IX32:32||IX64||IX32:32||Prisma & Veo||Prisma & Veo|
|ADAP-006||PA-Splitter – IX128 to IX64:64||IX128||IX64:64||Prisma & Veo||Prisma & Veo|
|ADAP-007||007 PA-Splitter – QX64 to Lemo00x8||QX64||Lemo00x8||Prisma & Veo||Prisma & Veo|
|ADAP-013||PA-Splitter – IX64 to BNCx32||IX64||BNCx32||Prisma & Veo||Prisma & Veo|
|ADAP-014||PA-Splitter – IX64 to BNC64||IX64||BNCx64||Prisma & Veo||Prisma & Veo|
|ADAP-008||PA-ADAP – GZ64 to QX64||GZ64||QX64||Phasor||Prisma & Veo|
|ADAP-009||PA-ADAP – CN64 to QX64||CN64||QX64||RS+ & RS2||Prisma & Veo|
|ADAP-010||PA-ADAP – QX64 to CN64||QX64||CN64||Prisma & Veo||RS+ & RS2|
|ADAP-017||WEDGE-ADAP-D1AW to D1B||D1AW||D1B||D1AW||D1B Probe|
Brochure & Full Specification
|0321||Veo3 Full Specification||Download|
|0321||UTstudio Analysis Software||Download|
|0321||UTmap Analysis Software||Download|
|0321||Xpair Remote Software||Download|
|0321||UTview FREE Data Viewer Software||Download|
Li ion Battery Information
|0121||MSDS Panasonic Li ion Cell for 242171||Download|
|0113||Shipping & Handling Li ion Batteries||Download|
|0514||Li ion Battery PSDS||Download|
Sonatest Pro Tutorials
|0321||Phased Array Automatic TCG Calibration||Download|
|0321||Phased Array Element Activation Test||Download|
|0321||Phased Array Sensitivity & ACG Calibration||Download|
|0321||Phased Array Velocity & Zero Calibration||Download|
|0321||Phased Array Wedge Angle Calibration||Download|
|0321||Remote Control & UTLink Connection||Download|
