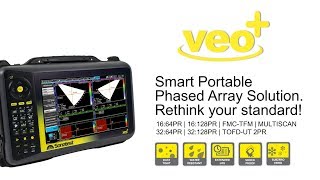

veo+
Overview
Retaining the best features of the established veo phased array line, the new veo+ is designed to meet the needs of today and tomorrow, making the veo+ a smart and future-proof asset for inspections of composite parts, steel & austenitic stainless welds, structures or for corrosion monitoring.

FMC-TFM solution - Webinar
Key design elements considered in the development of the VEO+ are user and performance focused. Based on a superior and innovative digital technology, four available PA configurations (16:64PR, 32:64PR, 16:128PR or 32:128PR) are offered as software options.
Along with Xpair Cloud Remote Access and Export to CSV, the FMC-TFM gives access to FMC recording of the acoustic information, and TFM imaging phased array probe.
Typical applications include Weld Inspection, Crack Detection, Corrosion Mapping, Aerospace and Composite Testing.

For units compliant with Russian Standards and requirements - please click here

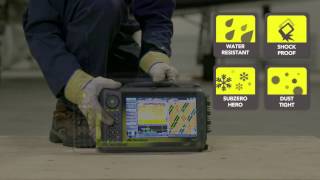

Features
Superior Digital Technology
The Veo+ offers superior data throughput and unsurpassed computational capacity. It delivers fast and accurate results using an impressive 32 channel PA beamformer that provides exceptional SNR, through the use of enhanced digital signal processing.
Data file size is not a concern for the Veo+ thanks to its 64-bit Linux operating system because it can count on a fast 128GB SSD memory capacity allowing you to record huge amounts of information in a single acquisition file.
Intuitive Menus and Workflow
The intuitive menu system is application and workflow driven, with set up and operation swiftly becoming second nature. Integrated help and Wizards guide the user through scan set up whilst Optimisation Tips ensure the Veo+ always performs at the highest level. Fast and efficient wizards for sound velocity; wedge delay, TCG, DAC, TOFD setup and Encoder calibration are all provided as standard.
The inspection plan shows the operator in 3D where probes are positioned on the test part, simplifying the inspection set up and providing an inspection reference for reporting. Using the latest computer technology, data can be permanently recorded for processing and report generation. All adjustments to focal laws are instantaneous, with angle resolution to 0.1° and up to 1024 focal laws without loss of performance.
New FMC-TFM software option
- Multiscan acquisitions (FMC-TFM scan and PA scan)
- Encoded FMC-TFM on one or two axes
- TFM high-resolution and large area imaging
- TFM multi-mode analysis
- FMC recording for complete traceability
Remote Control Solution
Using Sonatest’s Xpair software application, Veo+ can be fully used and controlled remotely, via a simple network connection. Veo+ now offers WiFi along with its fast GB Ethernet port.
Xpair opens the doors of true mobility in the NDT market. It is a PC-based software application solution to manage data transfer and remote control of instruments in the field wherever a network connection is available. Moreover, with the Xpair Cloud option, a user can access and remotely pilot the instrument of a colleague located 1000s of km away using a mobile or wired internet connection.
Advanced Analysis Software
UTstudio+
UTstudio+ makes inspection data management easy.
Loaded with a comprehensive user interface, data analysis and setup file construction becomes natural and straight forward. From customised views to additional gates, measurement tools or refined colour palettes, UTstudio+ helps you generate extended reports and much more.
Suitable for FMC-TFM, phased array and conventional ultrasonic technologies, UTstudio+ is able to accomplish amazing things and get the job done for a multitude of simple advanced applications.
One UTstudio+ licence FREE with you veo+ purchase.
UTview
Loaded with comprehensive user interface, inspection data and results are now freely accessible to anyone who wants to review them. From customised views to additional gates, measurement tools or refined colour palettes, UTview helps sharing results with collaborators to get the job done faster.
Ideal WheelProbe Partner
Efficient and effective scanning can also be achieved when the Veo+ is partnered with Sonatest’s wheelprobes, namely the new WP2.
Resources

Flange Inspection PAUT
Phased array gives the ability to inspect flanges without having to take them apart, resulting in quicker and cheaper inspections.

Phased Array Bolt Inspection
Traditional methods for checking bolts include removing and visually checking for any cracking, this not only takes a long time but can also cost a huge amount of money

Remote NDT - Field Applications and User Cases
The remote control capabilities of instruments nowadays ease the development of new NDT applications, especially in harsh environments or restricted areas where it can be difficult to bring together measurement instrument and technician.

High Temperature Hydrogen Attack (HTHA)
High temperature hydrogen attack (HTHA) is an irreversible deterioration of the mechanical properties of steel due to the reaction of hydrogen with carbon at temperatures in excess of 200°C.

Advanced Corrosion Mapping
The WheelProbe 2 features a captive array in an adaptive rubber wheel making it a perfect corrosion mapping solution for large surface.

Roller Probe Inspection
The through transmission inspection technique is a widely accepted method for honeycomb assessments.

Low Frequency PA Inspection
The inspection of heavy composites thicker than 50 mm (2 inches) causes significant limitations for conventional phased array probes.

Low Frequency PAUT Inspection of GFRP
Certain heterogeneous materials can be highly attenuative to ultrasound. As a result, lower frequency probes are required, especially for thick sections which otherwise can be difficult to inspect.

Austenitic Stainless Steel Solution DAAH – Dual Linear Array Probe
300 series stainless steels are the most common sub-group of austenitic steels and are used in a large variety of processes and industries, typically for corrosion resistance of high temperature service. Comprehensive inspection techniques are vital to ensure safe operation.

Comparison of Corrosion Mapping Solutions using Phased Array and Conventional UT Techniques
There are many kinds of corrosion inspection solutions and choosing the right one may be complex.
Accessories
Standard Packages
Product Code | Description |
Veo+ 16:64PR BNC | Veo+ 16-64 Standard Kit BNC |
Veo+ 16:64PR LEMO | Veo+ 16-64 Standard Kit LEMO |
Veo+ 32:64PR BNC | Veo+ 32-64 Standard Kit BNC |
Veo+ 32:64PR LEMO | Veo+ 32-64 Standard Kit LEMO |
Veo+ 16:128PR BNC | Veo+ 16-128 Standard Kit BNC |
Veo+ 16:128PR LEMO | Veo+ 16-128 Standard Kit LEMO |
Veo+ 32:128PR BNC | Veo+ 32-128 Standard Kit BNC |
Veo+ 32:128PR LEMO | Veo+ 32-128 Standard Kit LEMO |
Standard Kit Content
Product Code | Description |
Veo+ Flaw Detector | |
145408 | Veo+ USB memory key |
165281 | WIFI USB key - |
242171 | 2 x Lithium battery Veo+ |
800423 | Veo+ power supply |
147409 | Veo+ Quick Start |
147390 | Veo+ User Guides |
195193 | Carry strap Veo+ |
195192 | Veo+ transportation case |
UTStudio+ | UTstudio+ standard version (1 license) |
Veo+ Kits
Veo+ & Magman Scanner |
Veo+ & WP2 |
Veo+ & Manual TOFD |
Veo+ & Manual Weld |
Software Accessories
Product Code | Description |
SW-VEO+PA32 | Upgrade to 32 pulser/receiver |
SW-VEO+PA128 | Upgrade to 128 channels |
SW-VEO+CSV | Export view data to CSV file |
SW-VEO+PACSC | SW Option: Activate PA Curved |
SW-VEO+CLOUD | SW Option: Xpair Cloud Remote |
SW-VEO+FMC/TFM | FMC/TFM Software |
UTSTUDIO+ | UTSudio+ single license |
UTVIEW |
TOFD and UT Probes
X-Series
- X1 Miniature & Sub Miniature PA Transducers
- X2 General Purpose PA Transducers
- X3 Long Array Transducers
- X4 Miniature PA Transducers with Integral Wedge
- X5 Medium PA Transducers
- X6 PA Transducers Corrosion Mapping for large surface and piping
- X-Clamps
DaaH Series
- Type 1 Daah
- Type 5 Daah
- T-Clamps
- Daah Adaptors
Accessories and Spares
Product Code |
Description |
195193 |
Carry Strap VEO |
195192 |
Veo Transport case |
242171 |
Lithium Battery |
800423 |
Power Supply (LEMO) |
800424 |
Single Bay Battery Charger |
800422 |
Dual Bay Battery Charger |
196100 |
Waterproof Mouse |
196101 |
Waterproof Keyboard |
145428 |
VEO Window Protector |
196102 |
7Lt Portable Hand Spray Kit |
165281 |
Compact USB Wi-Fi Router |
TST-0007 |
Type B PA Block (CS) |
TST-0008 |
Type B PA Block (A) |
149342 |
PA Calibration Block (MS) |
149118 |
AMK/MPAUT Block (MS) |
149352 |
Type A PA Block (MS) |
Adapters
Click here for PA Adapter Specifications
Adapters | Encoder & GPIO Adapters |
ADAP-003 |
ENC-ADAP- veo 2 axes to prisma 2 axIs |
ADAP-001 |
ENC-ADAP- MX 1 axis to veo 1 axis |
ADAP-002 |
ENC-ADAP- SX-MX2 1 axis to veo 1 axis |
ADAP-011 |
ENC-ADAP- veo 1 axis to MX 1 axis |
ADAP-012 |
ENC-ADAP- veo 1 axis to SX-MX2 1 axis |
WP2-ADAP-101 |
GPIO-ENC-ADAPT- veo to MX |
WP2-ADAP-102 |
GPIO-ENC-ADAPT- veo to SX-MX2 |
ADAP-015 |
ENC-ADAP- RS+ & RS2 to veo 1 axis |
PA Adapters |
Phased Array Adapters or Splitters |
ADAP-005 |
PA-Splitter- IX64 to IX32:32 |
ADAP-006 |
PA-Splitter- IX128 to IX64:64 |
ADAP-007 |
007 PA-Splitter- QX64 to Lemo00x8 |
ADAP-013 |
PA-Splitter- IX64 to BNCx32 |
ADAP-014 |
PA-Splitter- IX64 to BNCx64 |
ADAP-008 |
PA-ADAP- GZ64 to QX64 |
ADAP-009 |
PA-ADAP- CN64 to QX64 |
ADAP-010 |
PA-ADAP- QX64 to CN64 |
Downloads
Date | Title | Version | Size | |
---|---|---|---|---|
April 2018 | VEO+ Software Updates | Download | ||
April 2018 | UTStudio+ Analysis Software Updates | Download | ||
April 2018 | UTview FREE Data Viewer Updates | Download | ||
October 2018 | Xpair Remote Software | Download | ||
October 2018 | UTmap Analysis Software Updates | Download | ||
06.06.17 | Composite Inspection in Phased Array | Download | ||
06.06.17 | PA & Hydrogen Blistering | Download | ||
06.06.17 | Couplant V Wallpaper Paste | Download | ||
01.01.2014 | MSDS Panasonic Li ion Cell for 242171 | 132.72 KB | Download | |
01.01.2013 | Shipping & Handling Li ion Batteries | 361.36 KB | Download | |
07.05.2014 | Li ion Battery PSDS | 212.04 KB | Download |
Sonatest Pro Tutorials
Date | Title | Version | Size | |
---|---|---|---|---|
May 2017 | Encoder Calibration | Download | ||
May 2017 | Phased Array Automatic TCG Calibration | Download | ||
May 2017 | Phased Array Element Activation Test | Download | ||
May 2017 | Phased Array Sensitivity & ACG Calibration | Download | ||
May 2017 | Phased Array Velocity & Zero Calibration | Download | ||
May 2017 | Phased Array Wedge Angle Calibration | Download | ||
May 2017 | Phased Array Wedge Delay Calibration | Download | ||
May 2017 | Remote Control & UTLink Connection | Download |
