STIX Upgradeable
Weld Scanner

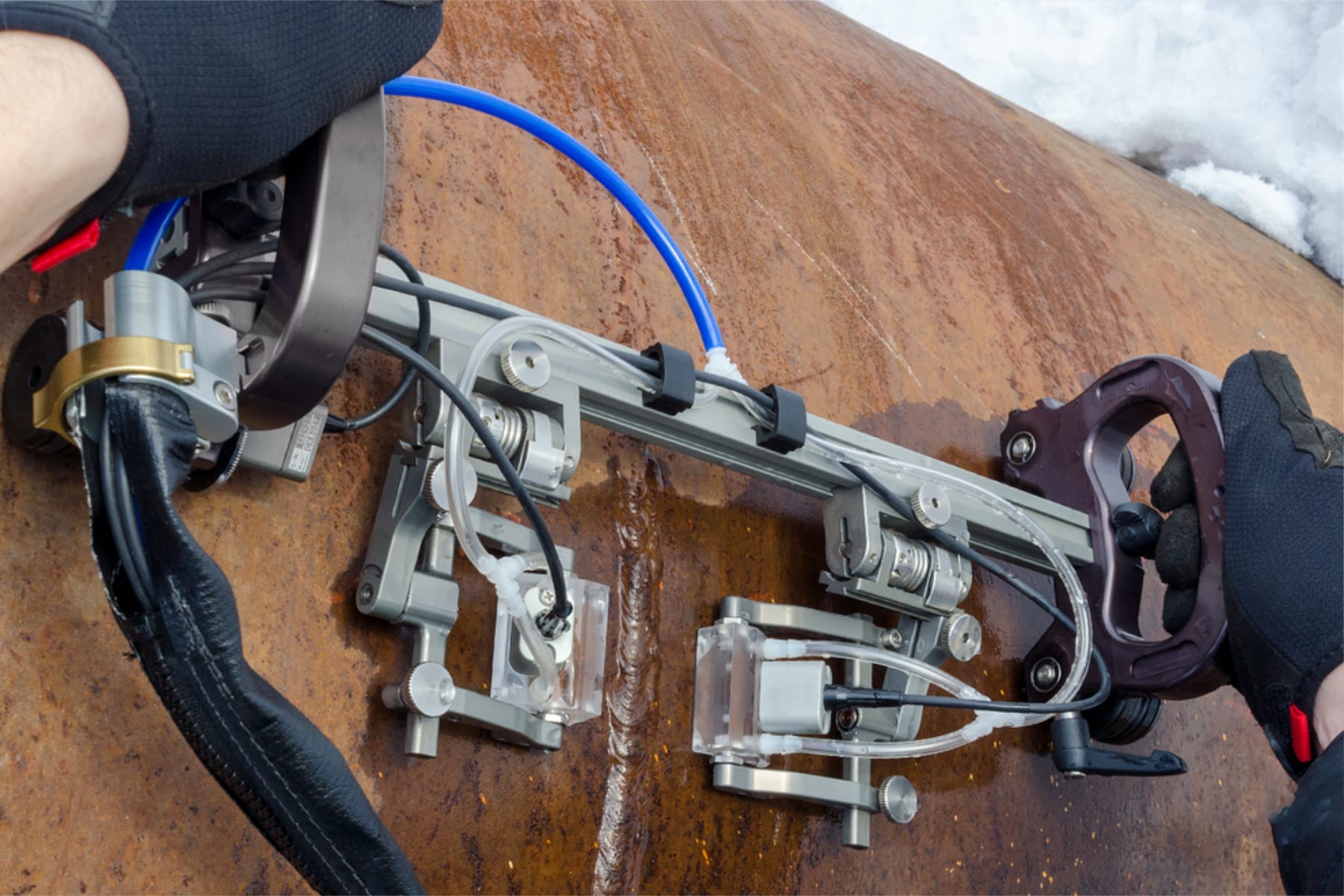

Upgradeable solution to scan circular pipe welds using TOFD, Phased Array or combined techniques at your fingertips!

 Request a quote

STIX Upgradeable

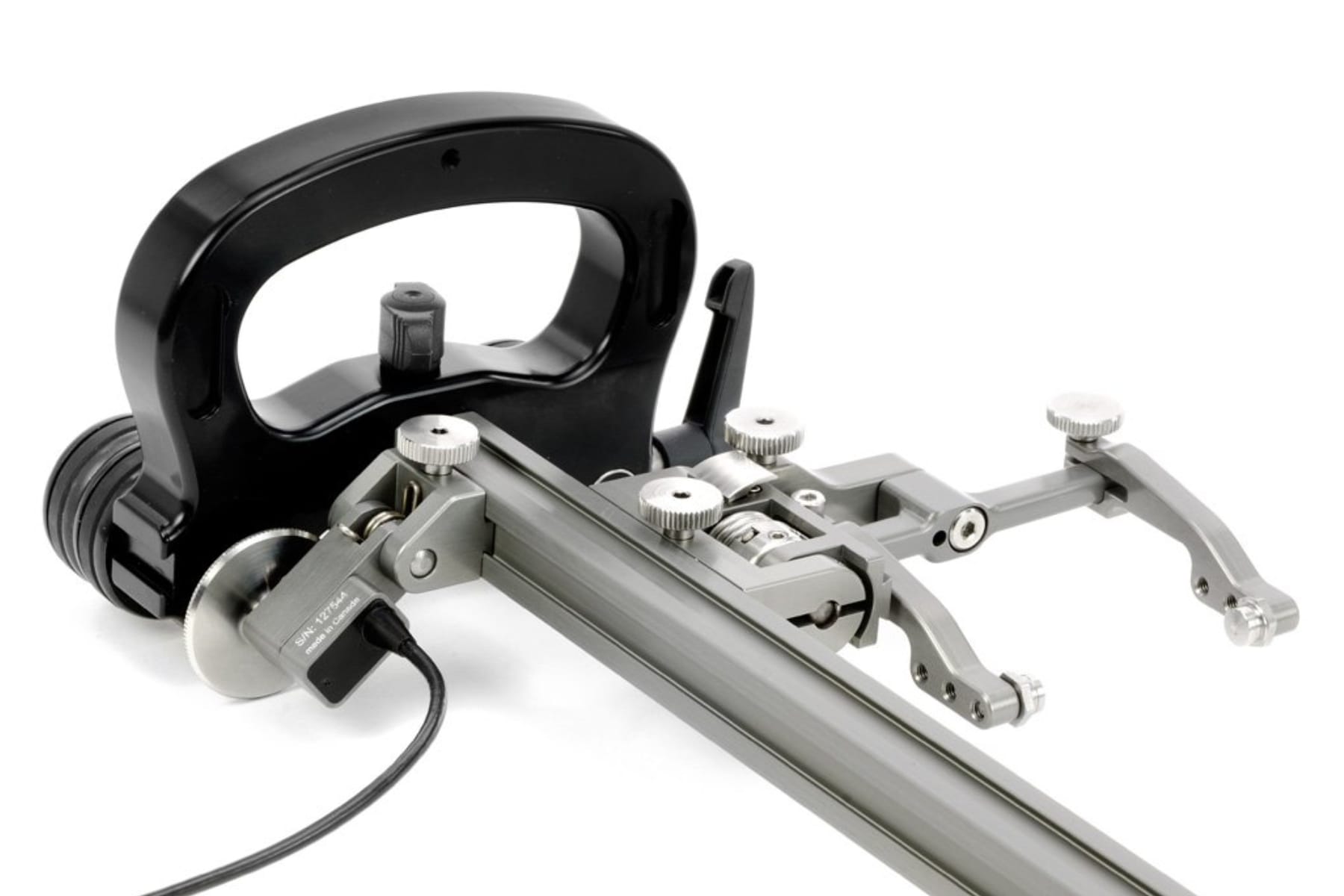

This exclusive modular approach starts from a simple and functional STIX 2 wedge magnetic scanner that can be upgraded to fit any required configurations by adding one of the modular options.

Any Sonatest Phased Array and TOFD wedges can be accommodated and the integrated latch allows easy PCS (Probe Centre Spacing) adjustments and scanner installation. A Park brake is provided to hold the scanner in any desired location. All the wheels (magnetic or not) are coated with urethane to prevent foreign debris from hindering smooth rolling of the scanner.

Each STIX system includes a spring loaded module to ensure accurate positioning. The encoder output is fully compatible with Sonatest instruments.


  • Low cost encoded dual sides PA or TOFD solution
  • Combine both PA and TOFD techniques in one pass
  • Steady and repetitive
  • High production performances
  • Apps for ferrous piping and vessels
  • The STIX frame includes convenient handles for scanner handling as well as mounting points for accessories
  • Brakes are provided to lock the location of the scanner in a required position
  • The extremely adjustable slip joint probe holders accommodate most of phased array wedges
  • A spring-loaded encoder ensures accurate scanner positioning. The 5V DC TTL encoder is fully compatible with all standard instruments
  • The magnetic wheels are coated with urethane to reduce the effects of foreign debris obstructing the rolling of the scanner. To further increase the flexibility of the system, the wheels are also stackable to increase the magnetic attraction when required


Pipe Range, Circumferential10.2cm (4in) to flat Pipe Range, Internal Flat to 152.4cm (60in)
Encoder Resolution9.05counts/mm (230.0counts/inch)
Probe Holding Capacity2 phased array wedges
Encoder Cable Length5m (16.4ft)
Inspection SurfaceFerrous materials

 Ask an Expert   Download Brochure (1.9MB)   Request a Demo



Standard Kit Contents

STIX Frame with 40cm (15.7in) frame bar
Spring-Loaded Encoder, 5m (16.4ft) encoder cable length
Slip joint phased array probe holders with standard, drop arms x2
Probe holder arm set – long, drop arm x2
Magnetic wheels x8
Probe holder spare parts kit
4mm ID irrigation kit (7/16 in Quick Connect)
Cable clips x2
Tool and spare kit

STIX Upgradeable Kits

Product CodeDescription
JX-10012 Probe Magnetic Scanner (TOFD & PA)
JX-10024 wedge holders (TOFD & PA) Upgrade Kit
JX-CHAIN 4-12/24/38Pipe chain scanner (circumferential) Upgrade Kit
JX-10066 wedge holders (TOFD & PA) Upgrade Kit

 Ask an Expert   Download Brochure (1.9MB)   Request a Demo



Brochure & Specification

Type Title Date Size
PDF file icon STIX Upgradable Weld Scanner 09/23 Download 1.89 MB
