Odi II
Compact Dual Probe Scanner

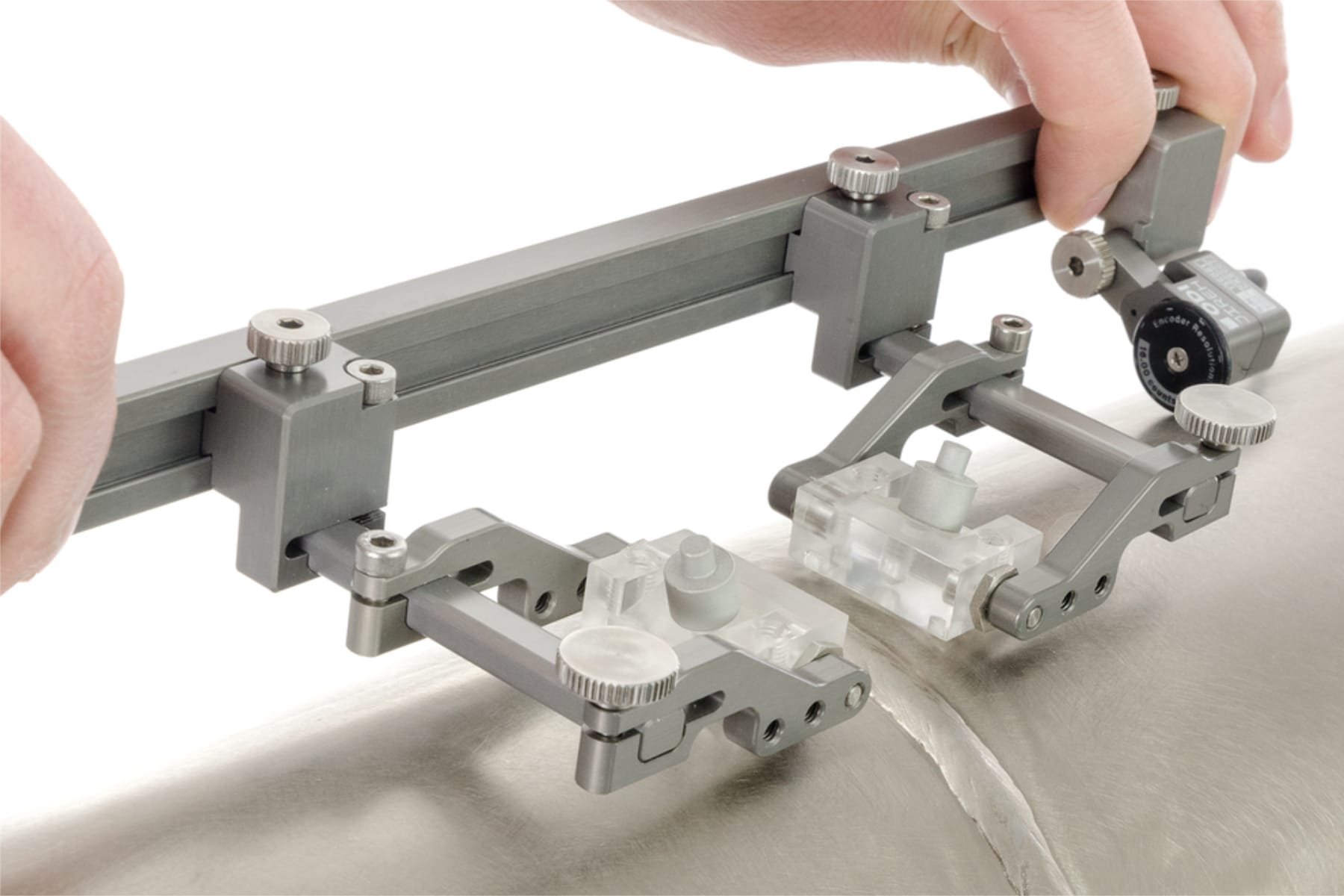

The Odi II is used to provide encoded position of two probes along the scan axis and its small size makes it a perfect tool for manual TOFD scanning.
Overview
The Odi II uses Jireh's standard probe holder arms, which are compatible with most manufacturer's wedge and probe combinations. It is also available with a variety of encoder output cable options, making it compatible with most major UT instruments. The Odi II is the perfect solution to carry out manual TOFD scans.
Features
- Quick Adjust Probe holders: This system allows the operator to fix the encoder to any probe/wedge or object to provide encoded position (no tools required)
- Environmental Sealing: The Odi-II is waterproof and constructed from corrosion resistant materials
- Encoder Output: The Odi-II is available with a variety of encoder output cable options to be used with your instrument of choice

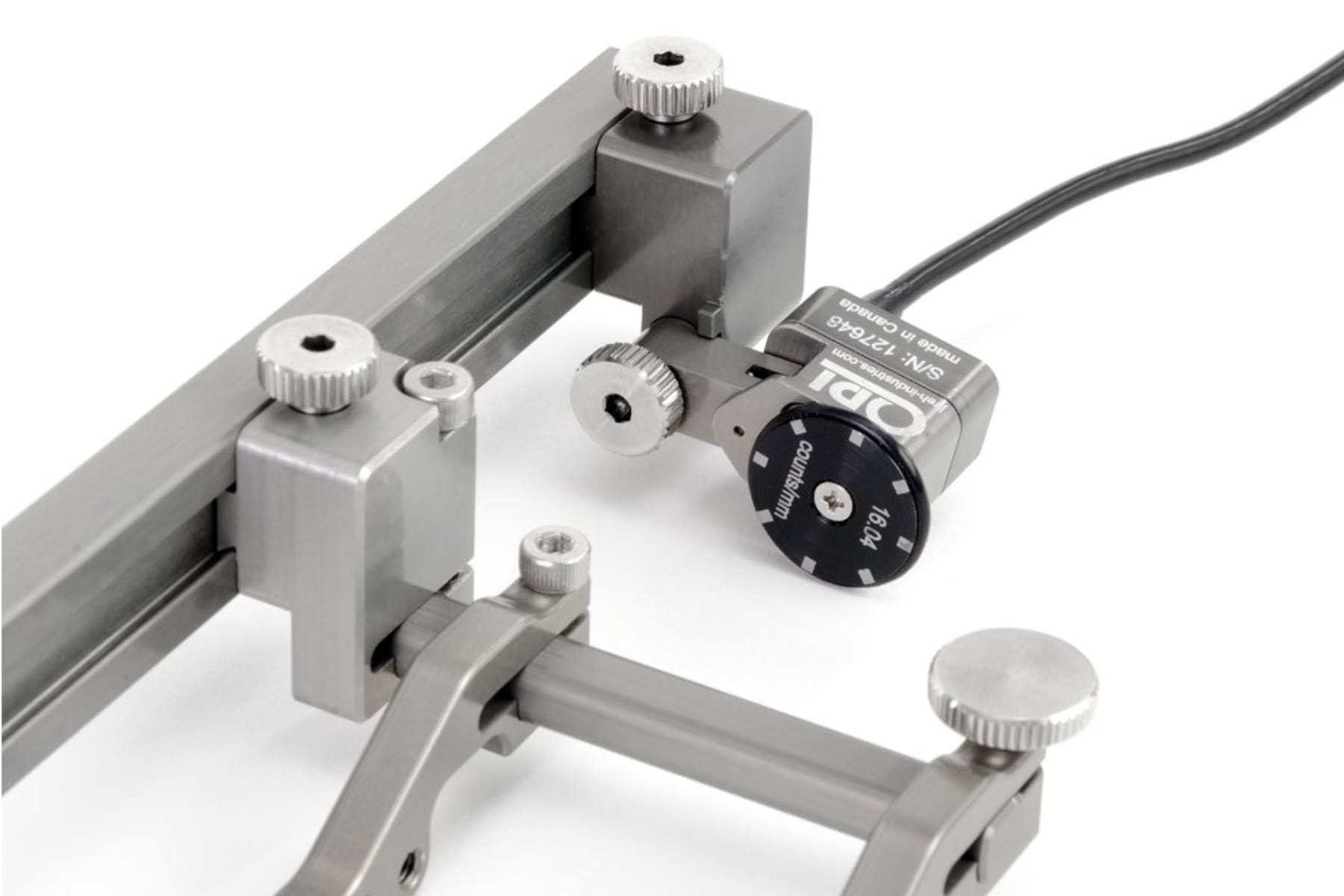

- Configurable: The Odi-II can be used as a single dual probe manual scanner. The encoder can be positioned anywhere along the length of the frame bar, and on either side
Specification
| Clamp Width | Max clamp opening 50mm (1.97in) |
| Encoder Wheel Diameter | 20.57mm (0.810in) |
| Encoder cable | Compatible with Sonatest instruments |
| Encoder Resolution | 16.04 pulses/mm |
Ask an Expert Download Brochure (1.1MB) Request a Demo
Accessories
Standard Kit Content
| Product Code | Description |
|---|---|
| (JX-1005) | Odi Encoder with 2.5m (8ft) encoder cable |
| 30cm frame bar | |
| 2 probe holders with short arms and pivot buttons |
Accessories
| Product Code | Description |
|---|---|
| JX-1003 | Irrigation kit (tubes and fittings) |
Ask an Expert Download Brochure (1.1MB) Request a Demo
Downloads
Brochure & Specification
| Type | Title | Date | Size | |
|---|---|---|---|---|
 |
Odi II Scanner | 09/23 | Download | 1.06 MB |
