RSflite Composite Solution


Overview

Fast, integrated and portable, this is an optimal inspection ultrasonic NDT solution for the composite industry.

Ultrasonic Non-Destructive Testing (NDT) has helped engineers inspect all sorts of composite materials for years. Whether it be traditional aluminium laminates or today's more complex carbon fibre-based composites, an ultrasonic NDT system has the ability to acoustically see through these parts and create complete inspection maps. Comprehensive volumetric integrity reports can be generated and supported by imaging reports that are as easy to interpret as traditional X-Ray.

Active with key industry leaders for more than 60 years, Sonatest is proud to present the new generation RapidScan: the RSflite, UTmap and WheelProbe2 linear array solution.


Ask for more information

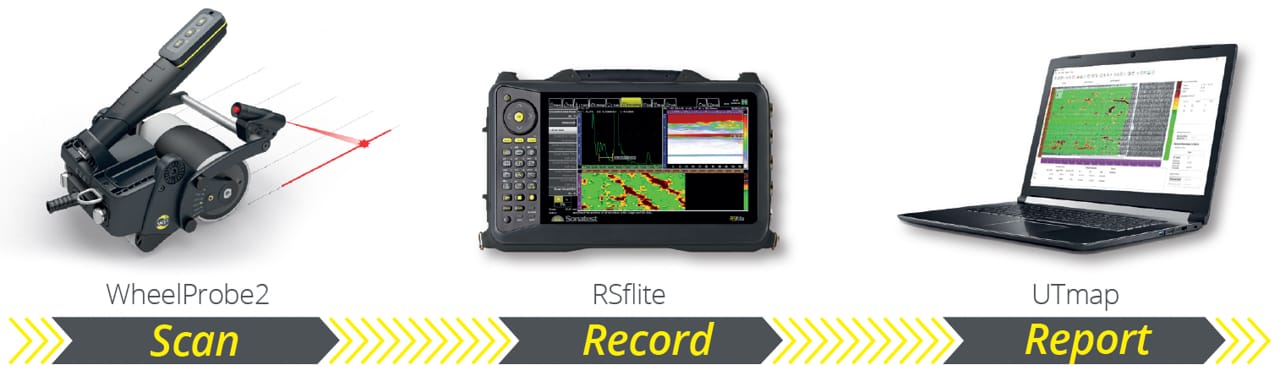

Save time.  Be more efficient

#

Fast composite inspection with
RSflite & WP2

#

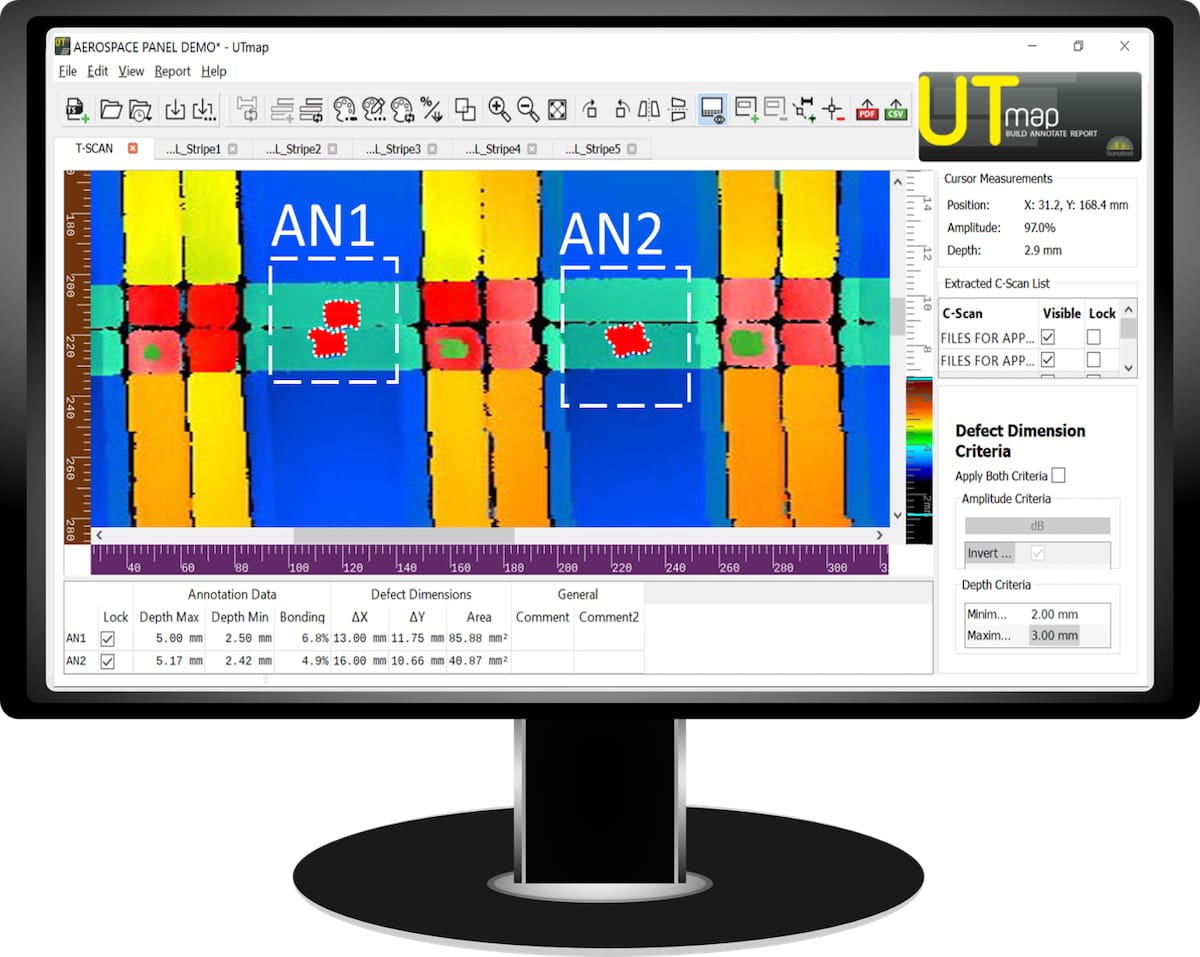

Simplify your data
analysis with
UTmap

#

Enable automatic
measurements that are
ready to share

Linear Scan Inspection

Features

Key features

  • Light reinforced frame
  • Patented rubber wheel
  • Best acoustic's on the market

Advantages

  • Portability with similar to immersion quality A-Scan data
  • Ease of use with a lightweight and ergonomic design
  • Up to 0.8 mm near surface resolution

Key features

  • Linear Scanning
  • Touch screen
  • Portable device

Advantages

  • User interface optimised for the composite inspection
  • Fast setup and operations
  • Outstanding inspection speed
  • Ready for all site conditions

Key features

  • T-Scan stitching
  • Post analysis re-gating
  • Automatic report

Advantages

  • Data adjustments (gain, gates...) are easily done in post-acquisition
  • Automatic measurements
  • Fast data interpretation
  • T-Scan, or the freedom to make it fit

Ultrasonic linear scanning solution

For composite inspection, a linear scan (L-Scan), sometimes referred to as an electronic scan (E-Scan), uses a group of elements of a linear array probe to pulse a single straight beam (1) , then another adjacent beam (2).  This sequence is repeated equally over the full length of the array (3) .

This ultrasonic NDT technique is particularly efficient to detect the most common defects inside the composite structure as it covers large area's rapidly and generates high-resolution data sets and images.

Delamination

Delamination

Porosity

Disbond

Impact Damage


Advanced solution benefits

  • With a linear scanning workflow-oriented and simplified user interface; the complete solution optimises the training time and on-site performances within one machine.
  • The outstanding ultrasonic signal-to-noise ratio and patented WheelProbe2 rubber design is a system offering the best acoustic performances for composite inspection.
  • The combination of RSflite and WheelProbe2 makes the fastest portable immersion inspection system on the market.
  • The advanced UTmap analysis tools and unique C-Scan stitching capability increase overall productivity and enhance the inspection quality.

Resources

Composite Inspection Benefits and Challenges Using Ultrasonic NDT Solutions

Composite Inspection Benefits and Challenges Using Ultrasonic NDT Solutions

Ultrasonic Non-Destructive Testing (NDT) has helped engineers inspect all sorts of composite materials for years.

Sensitivity Response of Total Focusing Method (TFM) for Weld Inspection Versus Other Methods

Sensitivity Response of Total Focusing Method (TFM) for Weld Inspection Versus Other Methods

Total Focusing Method (TFM) is an ultrasonic-based technique enhanced with the post-processing algorithm.

Linear Scanning with the Glider

Linear Scanning with the Glider

The RSflite workflow is designed for composite inspections.

Advanced Composite Inspection

Advanced Composite Inspection

A complete picture of a large component can be produced by stitching C-scans together in the UTmap software.

Multi-frequency Inspection of a graphite/epoxy laminate composite with variable thickness

Multi-frequency Inspection of a graphite/epoxy laminate composite with variable thickness

Focusing on the analysis of composite material C-scans acquired at various frequencies. Using the proper analysis software makes it possible to assemble all the C-scans to create images which represent the part inspected.

Roller Probe Inspection

Roller Probe Inspection

The through transmission inspection technique is a widely accepted method for honeycomb assessments.

Low Frequency PA Inspection

Low Frequency PA Inspection

The inspection of heavy composites thicker than 50 mm (2 inches) causes significant limitations for conventional phased array probes.

Low Frequency PAUT Inspection of GFRP

Low Frequency PAUT Inspection of GFRP

Certain heterogeneous materials can be highly attenuative to ultrasound. As a result, lower frequency probes are required, especially for thick sections which otherwise can be difficult to inspect.

Inspection of Composite Materials

Inspection of Composite Materials

Adapting recognised ultrasonic techniques to perform NDT inspection of these composite components can provide reliable and repeatable results for both in-line and maintenance examination.

Inspection of Composite Structures

Inspection of Composite Structures

With advances in composite design and manufacturing to satisfy new applications, complex geometries are often required.

Media

Gallery

Video

  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide

Portable Ultrasonic NDT composite Inspection Solution 5 min demo


Sonatest Pro Tutorial - Composite C-scan stitching with UTmap

Accessories

Standard RSflite Composite Solution Package

  • RSflite instrument
  • WheelProbe 2 - 5 MHz with 5 m cable
  • WP2 Composite Pack
  • WP2 advanced Kit 2 + Horizontal Handle
  • UTmap License
  • Xpair License



Part Number Part Description
RSFLITE BNC/LEMO RSflite 128 channel linear scanning instrument
WP2-5MHZ-64E WP2 5Mhz 64 Element Buggy
WP2-PACK2 WP2 Composite Pack
WP2-CABLE-111 WP2-CABLE-veo-QX5
WP2-ACC-0501 Horizontal Handle
WP2-ADV-KIT2 Advanced Kit Two
UTMAP UTMAP: single license
XPAIR Xpair: single license



RSflite Composite Solution Package with Glider Probe Option

  • Standard RSflite Composite Solution Package
  • Probe & Wedge
  • Encoder

Standard RSflite Composite Solution Package plus

Part Number Part Description
X3A-003 X3A-5M64E-0.6x10-SQX2.5
X3AG-001 X3AG-OLW25
JX-1004 Single Universal Encoder 2.5m



RSflite Composite Solution Package with additional WheelProbe Buggy plus Test and Demonstration Plate Option.

  • Standard RSflite Composite Package
  • Extra WP2 probe (pick your frequency)
  • Test and Demonstration Plate

Standard RSflite Composite Solution Package plus one extra WheelProbe 2 Buggy from the list below:

Part Number Part Description
WP2-2MHZ-64E WP2 2 MHZ 64 Element Buggy
WP2-3.5MHZ-64E WP2 3.5Mhz 64 Element Buggy
WP2-5MHZ-64E WP2 5Mhz 64 Element Buggy
WP2-10MHZ-64E WP2 10 Mhz 64 Element Buggy
Plus
WP2-ACC-0518 Demo Plate for WheelProbe 2
