RSflite


Overview

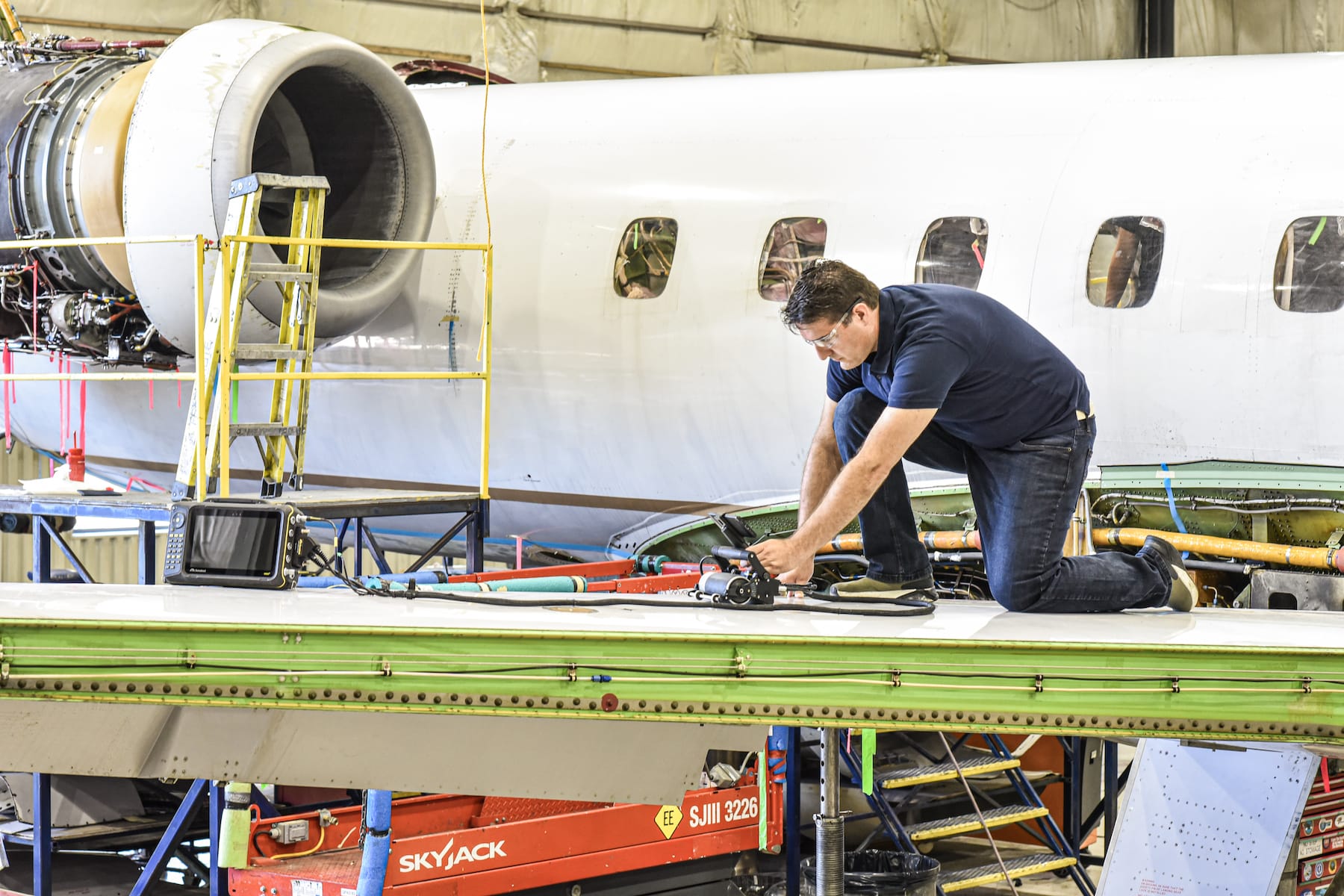

Fast, integrated and portable, this is an optimal inspection solution for the composite industry

Ultrasonic Non-Destructive Testing (NDT) has helped engineers inspect all sorts of composite materials for years. Whether it be traditional aluminium laminates or today's more complex carbon fibre-based composites, ultrasonic NDT technology has the ability to acoustically see through these parts and create complete inspection maps. Comprehensive volumetric integrity reports can be generated and supported by imaging reports that are as easy to interpret as traditional X-Ray.

Active with key industry leaders for more than 60 years, Sonatest is proud to present the new generation RapidScan: the RSflite linear scanning instrument.


Visit our complete RSflite Composite Solution here

RSflite sonatest ultrasonic testing flaw detector phased array linear scanning solution NDT
