Stix - Long Seam Weld Scanner

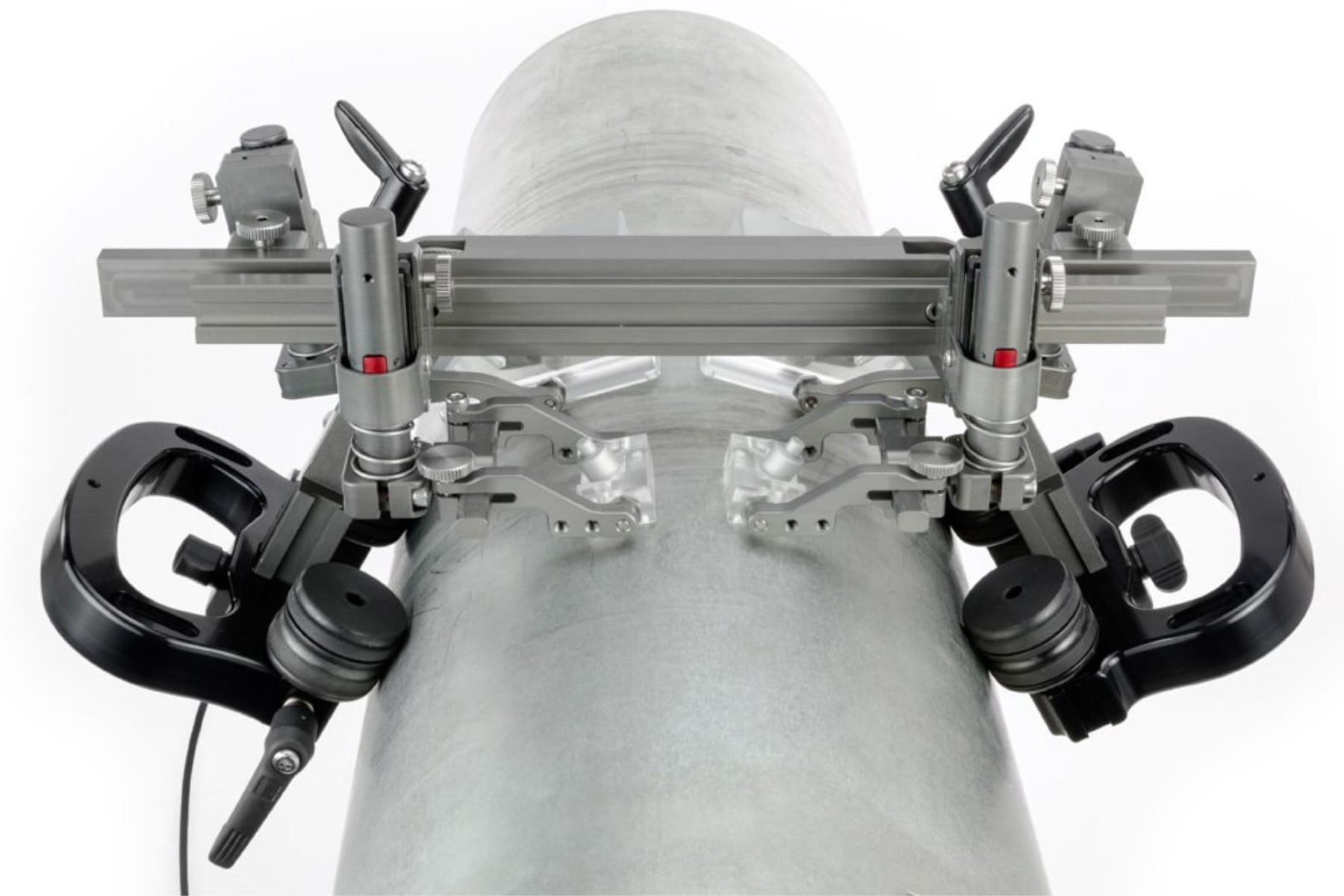

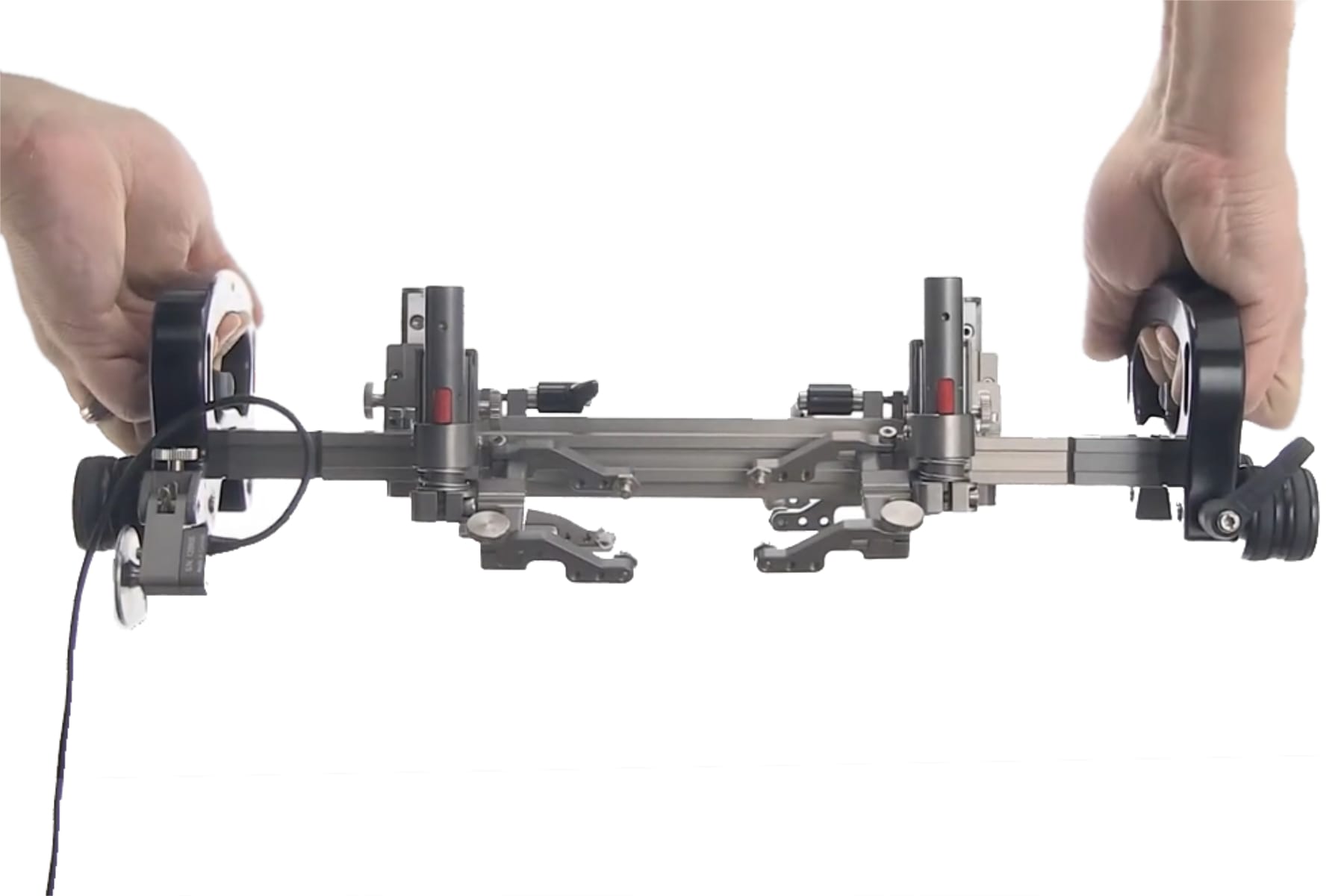

The STIX - Long Seam WELD scanner is specially designed to translate Phased Array and/or TOFD probes along both sides of a pipe longitudinal seam weld. Available in two versions, this magnetic scanner can handle 2 or 4 probe wedges for longitudinal scanning down to a 150 mm (6 in) pipe diameter. It can also handle flat surface inspection as well as circumferential scanning down to 275 mm (10 in) pipe diameter.
Using two link lengths and an adjustable buckle, any size of pipe can be inspected from 152.4 mm - 965.2 mm (6 in - 38 in) diameter. Links are designed with quick releases to easily be added or removed.
- A double wheel chain is used to straddle the weld. This allows the scanner frame to be centred on the weld to reduce wandering and reduce the width of the scanner.
- An integrated latch allows easy probe centre spacing adjustment and scanner installation. Due to its modular design most major types of phased array wedges can be accommodated.
- All wheels are coated with urethane to reduce the effects of foreign debris obstructing the rolling of the scanner. Urethane also eliminates the sideways sliding of the scanner when used in vertical applications.
- A brake is provided to lock the location of the scanner in a required position.
- The encoder output is fully compatible with all standard instruments.
- The scanner is sealed using O-ring gaskets and seals to protect against penetration of contaminants into the unit.
|JX-KIT-2-LONGSEAM||Long Seam Weld Scanner 2 probe holders|
|JX-KIT-4-LONGSEAM||Long Seam Weld Scanner 4 probe holders|
- Pipe Range, Circumferential: 25.4 cm (10 in) to flat
- Pipe Range, Longitudinal: 15.2 cm (6 in) to flat
- Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
- Probe Holding Capacity: 2 phased array wedges
- Encoder Cable Length: 5 m (16.4 ft)2
- Inspection Surface: Ferrous materials
What's in the box?
- STIX long seam frame with 8 magnetic wheels
- Spring-loaded encoder
- Vertical phased array probe holder x2
- Vertical TOFD probe holder x2
- Probe holder arm set – long, drop arm x2
- 4 mm ID irrigation kit (7/16 in Quick Connect)
- Probe holder spare parts kit
