Chain Weld Scanner

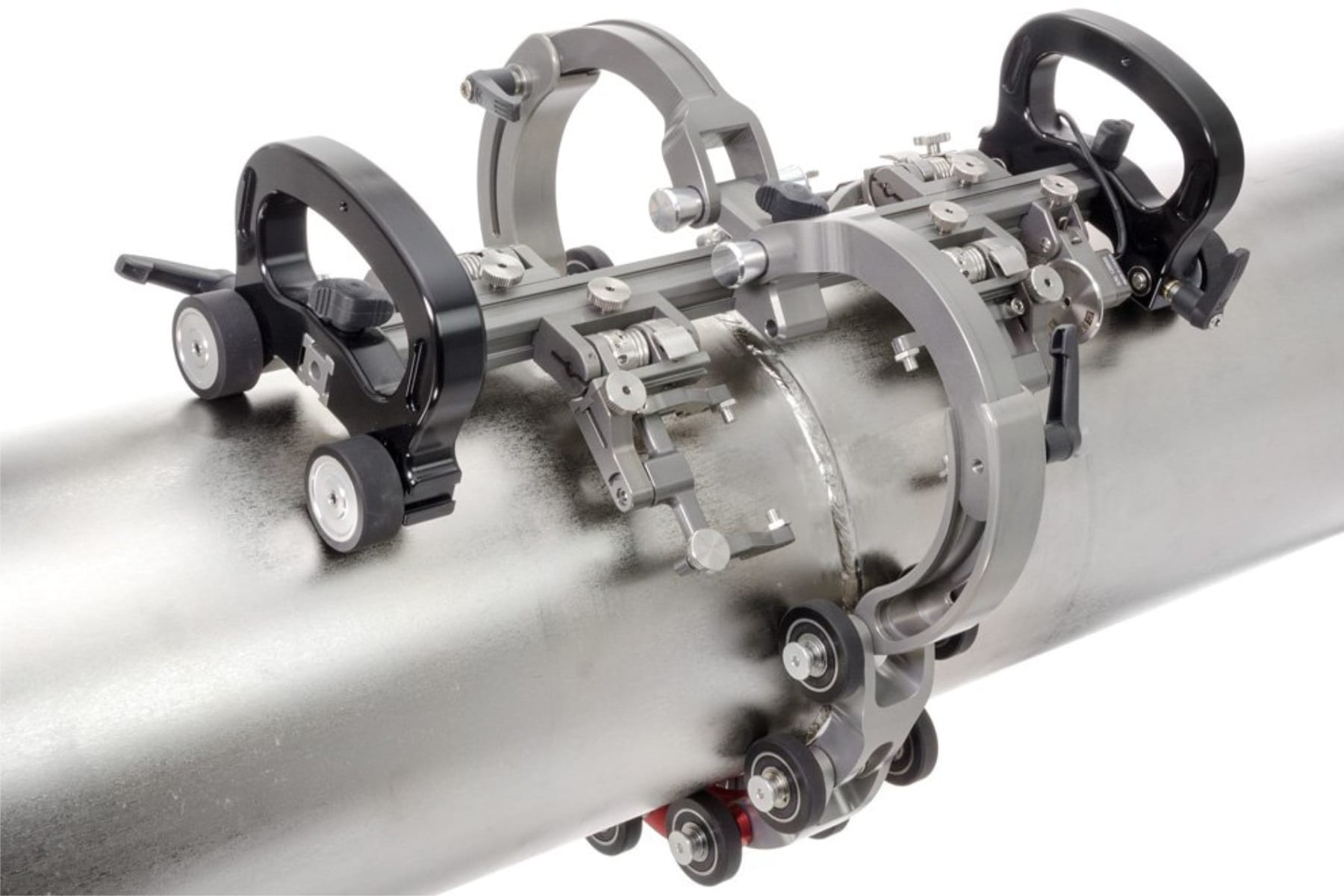

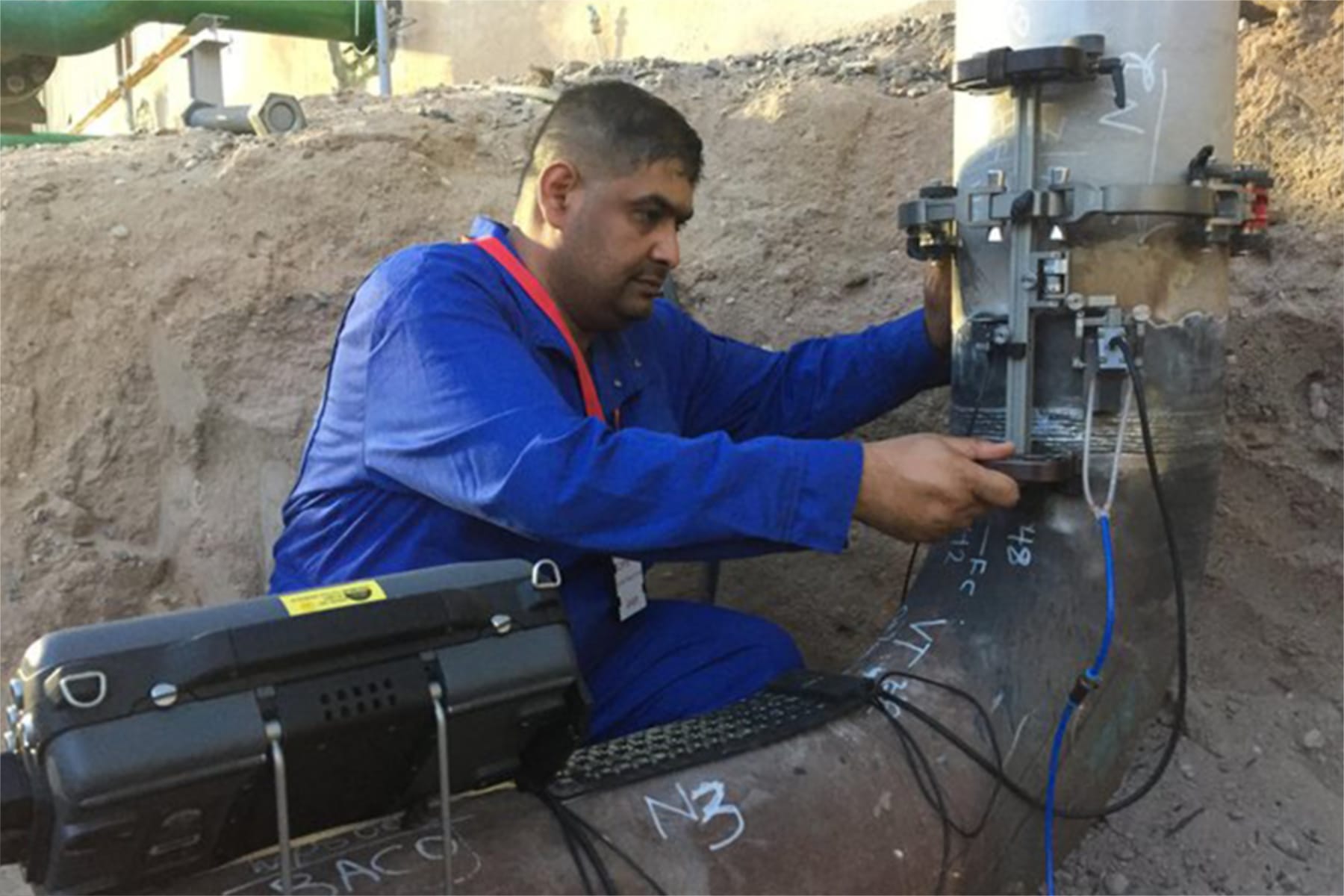

The ROTIX Chain Weld Scanner kit is designed to provide encoded position of probes circumferentially around piping for weld inspection on ferrous or non-ferrous inspection surfaces.

 Request a quote



The ROTIX is completely configurable for phased array, TOFD and conventional UT with single or multiple probes. Since this package includes a set of 8 magnetic wheels, this scanner can also perform inspection without the chain on ferrous materials like a standard magnetic scanner.


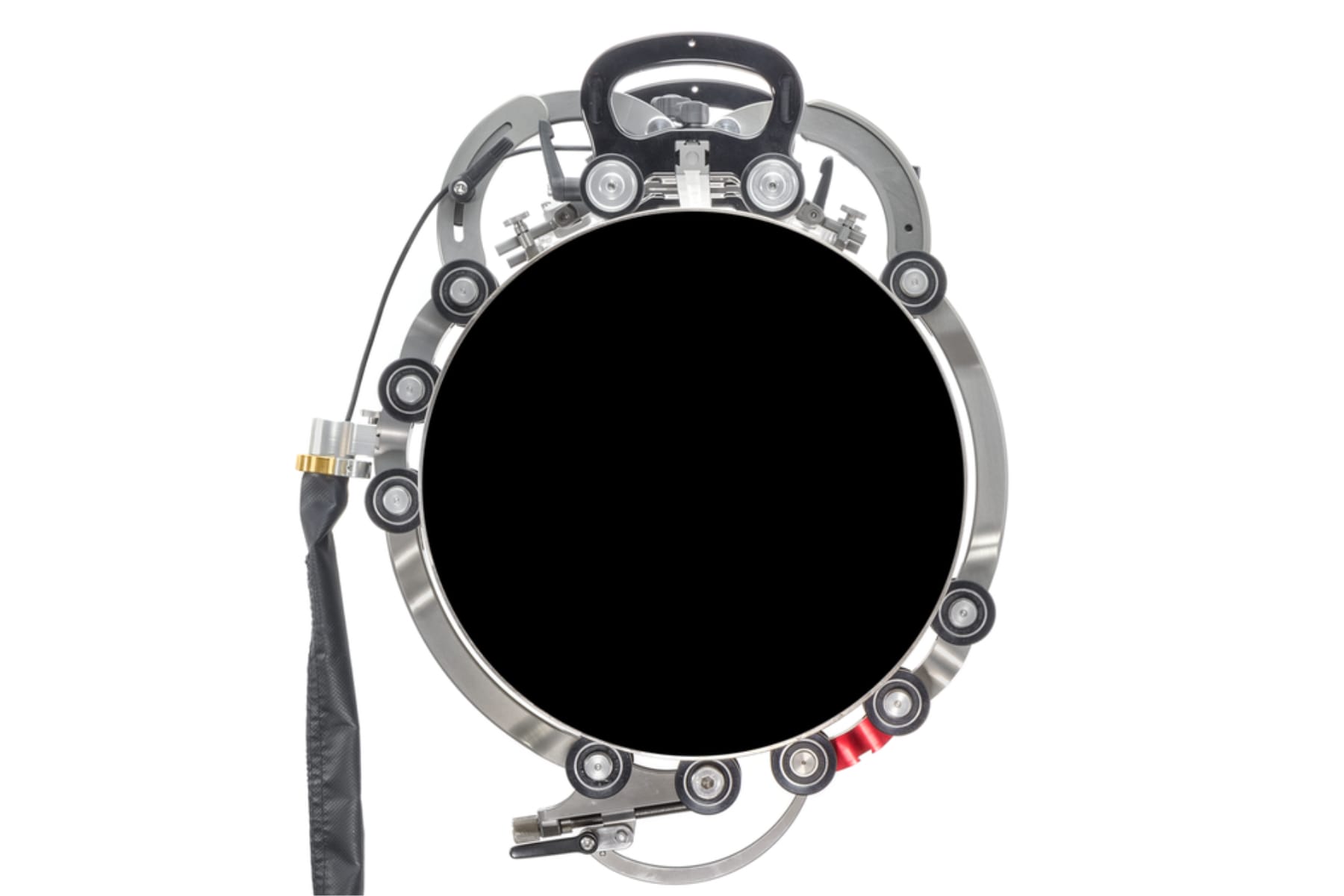

  • Using two link lengths and an adjustable buckle, any size of pipe can be inspected from 152.4mm - 965.2mm (6in - 38in) diameter. Links are designed with quick releases to easily be added or removed
  • A double wheel chain is used to straddle the weld. This allows the scanner frame to be centered on the weld to reduce wandering and reduce the width of the scanner
  • An integrated latch allows easy probe centre spacing adjustment and scanner installation. Due to its modular design most major types of phased array wedges can be accommodated
  • All wheels are coated with urethane to reduce the effects of foreign debris obstructing the rolling of the scanner. Urethane also eliminates the sideways sliding of the scanner in a required position
  • A brake is provided to lock the location of the scanner in a required position
  • The encoder output is fully compatible with all standard instruments
  • The scanner is sealed using O-ring gaskets and seals to protect against the penetration of contaminants into the unit


Pipe Range (Circumferential)10.2cm - 96.5cm (4in - 38in)
Encoder Resolution9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity2 TOFD wedges, 2 phased array wedges
Encoder Cable Length5m (16.4ft)1
Inspection SurfaceFerrous and non-ferrous materials

 Ask an Expert   Download Brochure (1.4MB)   Request a Demo



Standard Kit Contents

Product CodeDescription
JX-KIT40cm (15.7in) Bar
8 magnetic wheels
4 Rubber wheels
4 wide yokes for PA or TOFD wedges
4 standard arm sets
4 short arm sets
Wedge buttons
Encoder (5m)
Tool and spare kit

ROTIX Packages

Product CodeDescription
JX-KIT-4-12 /24/38Standard Kit Content


Product CodeDescription
JX-1003Irrigation Kit (Tubes and Fittings)
ASM-9037-WPUMPPortable Electric Pump Unit
JX-CMA013Portable Manual Couplant Pump – 2 gallons
JX-CMA014Portable Manual Couplant Pump – 3 gallons
