SHM & LHM
Contact
Small / Large Single Compression Contact Transducers
Overview
Common applications:
- Ceramics
- Composites
- Machine parts
- Thickness surveys
Features
- Single normal beam compression wave contact probe
- Circular, lead metaniobate crystal
- Max operating temperature 50°C / 120°F
- Medium Damped for medium bandwith
- Hard ceramic wear face for higher durability
Specification
Transducer Models
| Product Code | Description | Frequency (MHz) | Crystal Diameter (mm / inches) | Nearfield Length in Steel (mm / inches) |
|---|---|---|---|---|
| SHM | ||||
| SHM2-10 | Single Hardface 2Mhz 0° | 2 | 10mm / 0.394" | 8.4mm / 0.331" |
| SHM4-10 | Single Hardface 4Mhz 0° | 4 | 10mm / 0.394" | 16.8mm / 0.661" |
| LHM | ||||

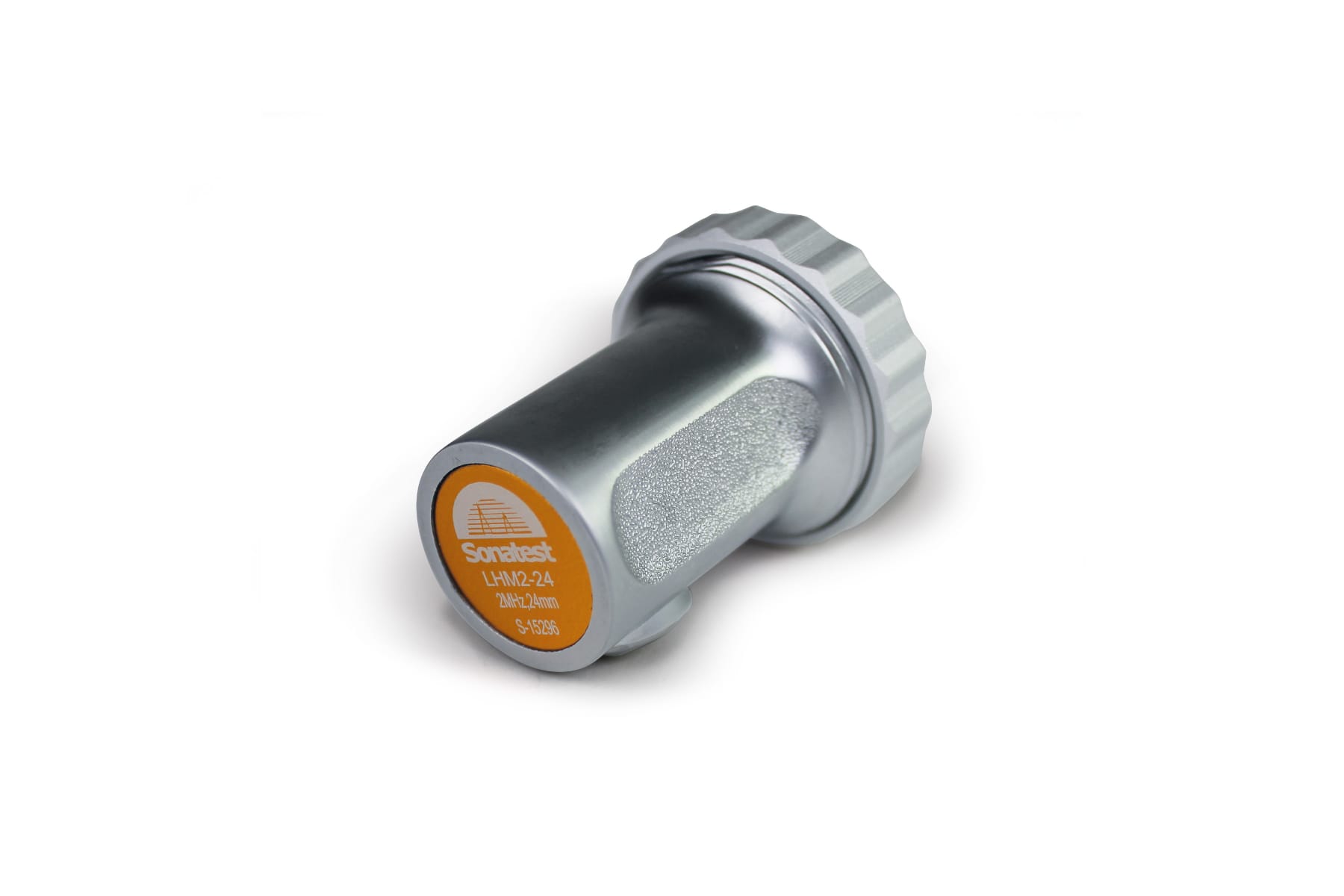

| LHM2-24 | Single Hardface 2Mhz 0° | 2 | 24mm / 0.945" | 48.3mm / 1.902" |
| LHM4-24 | Single Hardface 4Mhz 0° | 4 | 24mm / 0.945" | 96.6mm / 3.803" |
Case Dimensions & Details
| Transducer Type | Width/Diameter (mm / inches) | Height (mm / inches) | Connector Options | Position Options |
|---|---|---|---|---|
| SHM | 23mm / 0.906" | 42mm / 1.654" | Z | Side |
| LHM | 32mm / 1.26" | 59mm / 2.323" | L | Side |
