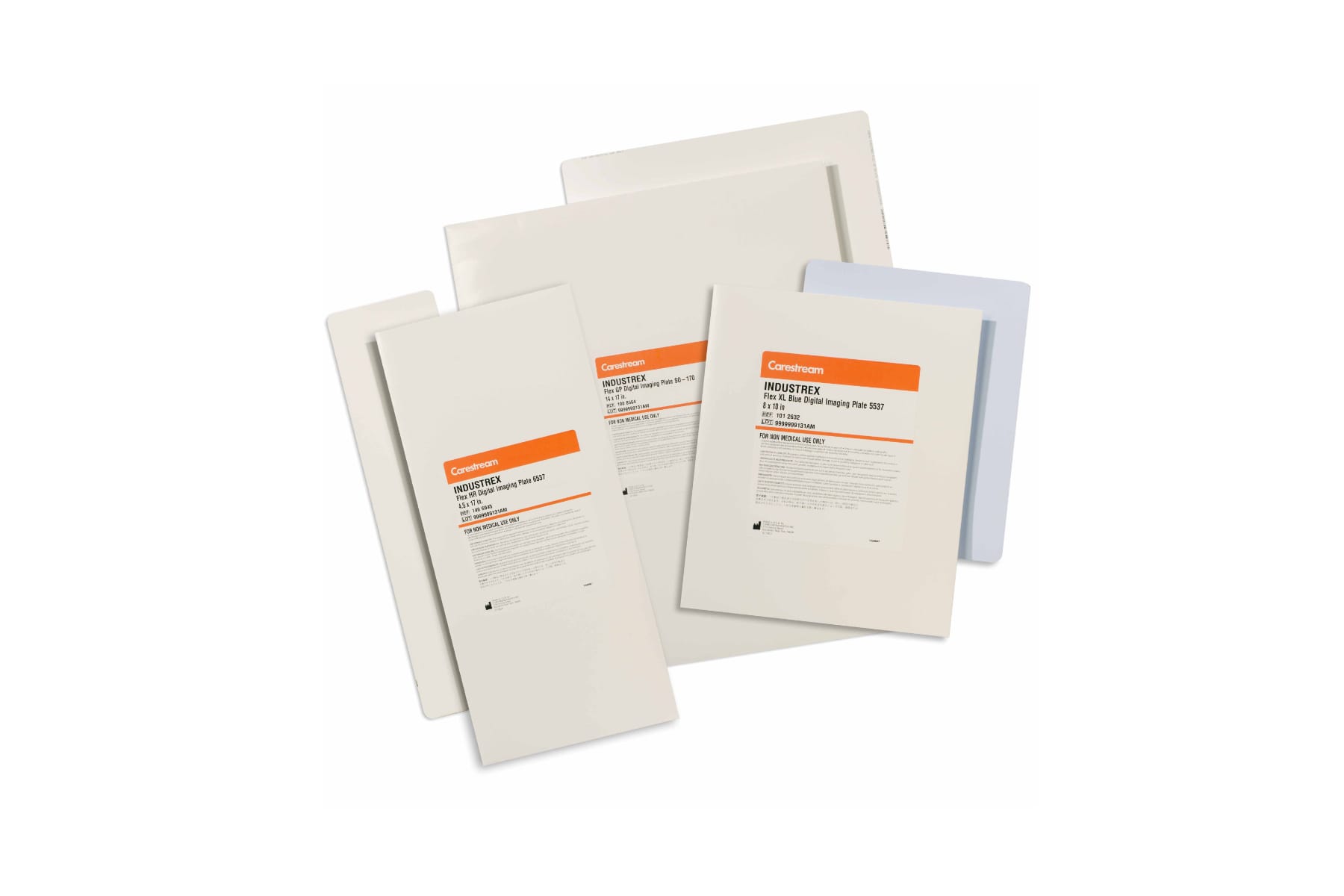

Carestream INDUSTREX Digital Imaging Plates
Offering the flexibility of film without the need for wet processing. Digital Imaging Plates allow you to capture and read images quickly and easily, both in the field and in the lab.
Overview
With Carestream INDUSTREX Digital Imaging Plates you can optimise the images if needed and store or share them digitally. And, they work with the Carestream INDUSTREX HPX-1 Digital Systems.
Features
- Flexible - Wrap around most shapes.
- Sharp - Better resolution than high-speed films, and a suitable replacement for many applications
- Available in Multiple Sizes - To cover a wide range of applications
- Portable - With the Carestream INDUSTREX HPX-1 Digital System, image capture in remote areas is easier than ever
- Versatile - Use in a rigid of flexible cassette
- Efficient - Phosphor plates can be erased and reused thousands of times, require less exposure than film, and provide faster images access
- Certified - When used with Carestream HPX-1 Digital Systems, all plates meet requirements for the highest system class per EN 14784-1 and ASTM E 2446
Specification
| Flex GP | Flex HR | Flex XL Blue | |
|---|---|---|---|
| General Purpose | High Resolution | Ultra High Res | |
| Resolution (Size) | Product Code | Product Code | Product Code |
| 3.5 x 10in | • | 8094922 | 1012699 |
| 3.5 x 17in | • | 1904267 | 1012723 |
| 4.5 x 10in | 1004266 | 1680214 | 1012624 |
| 4.5 x 17in | 8584534 | 1466945 | 1012608 |
| 5 x 7in | 1880723 | 8491615 1012681 | |
| 7 x 17in | 1355478 | 1848688 | 1012640 |
| 8 x 10in | 8520454 | 1775576 | 1012632 |
| 10 x 12in | 8640344 | 1174424 | 1012574 |
| 14 x 17in | 1008564 | 8360521 | 1012665 |
| 14 x 36in | 8908204 | 1434257 | 1012590 |
| 14 x 51 Inch | 1432772 | • | • |
| 14 x 60in | 1124460 | 8082596 | 1012657 |
| 14 x 85in | 8542276 | • | • |
| 70mm x 20.3cm | • | • | 1012731 |
| 70mm x 25.4cm | • | 8802324 | 1012707 |
| 70mm x 43cm | • | 8348641 | 1012715 |
| 70mm x 8in | • | 8002230 | • |
| 70mm x 13in | • | • | 1012764 |
| 70mm x 24in | • | 1006105 | 1012756 |
| 70mm x 36in | • | 1004746 | 1012749 |
Accessories
Fixers and Developers
The full Carestream Health range of Chemicals are also supplied by Sonatest Ltd for manual or automatic processors.
X-Ray Accessories
Interleave Papers, folders, cassettes and other accessories are also available.
Downloads
Brochure & Specification
| Type | Title | Date | Size | |
|---|---|---|---|---|
 |
INDUSTREX NDT Digital Imaging Plates | 09/23 | Download | 0.14 MB |
