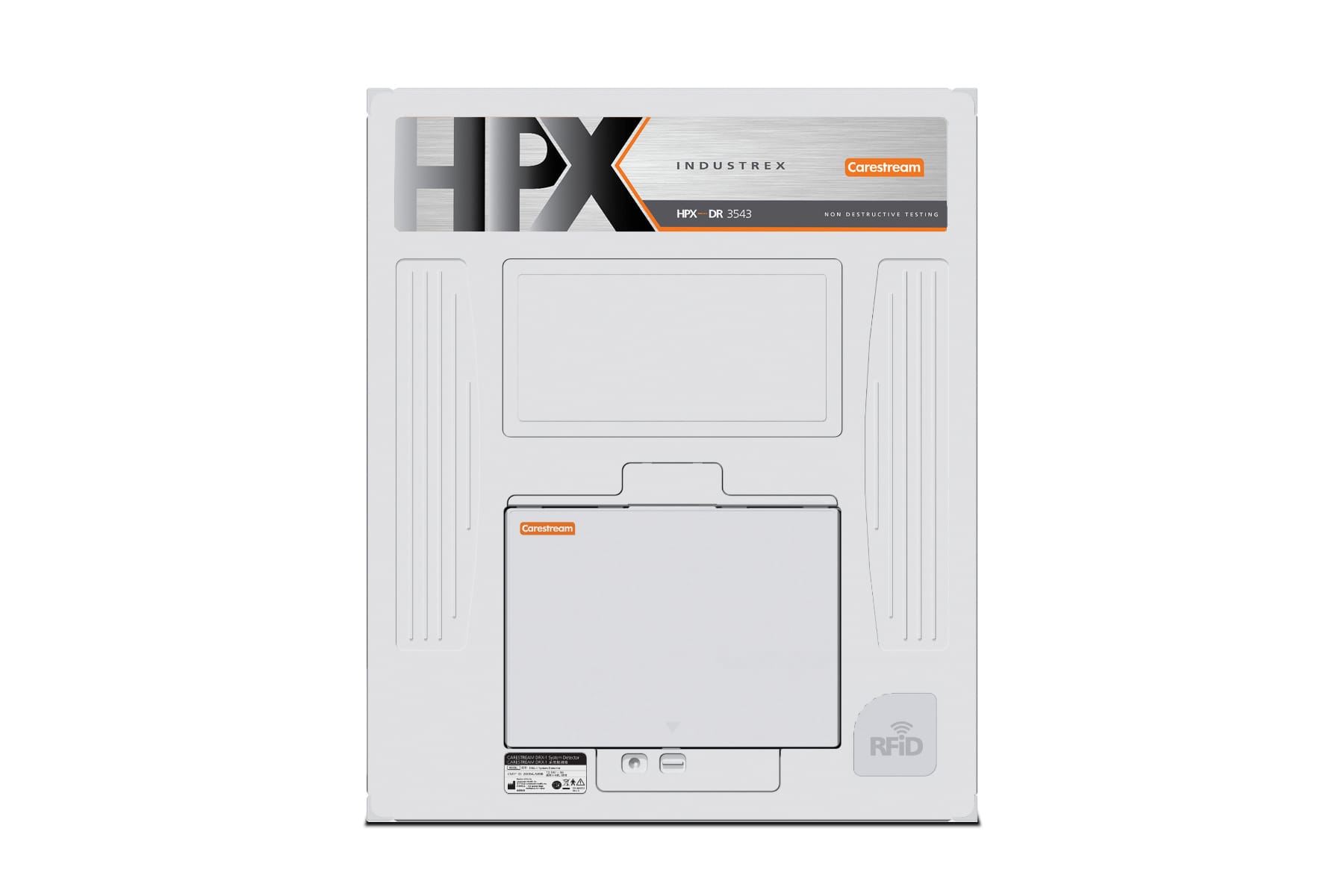

HPX-DR Non-Glass DR Detector
The HPX-DR Non-Glass detector incorporates a tougher plastic material instead of glass for maximum durability against the rigors of NDT field work.
Overview
The HPX-DR Non-Glass detector is lighweight and compact with an all-weather design that is simple to operate. In the lab, it can be operated on a powered tether and in the field it can run 100% on battery. With the 'hot swap' feature the panel can remain on when changing batteries, increasing uptime.
The HPX-DR Non-Glass detector can operate completely wireless giving the user full freedom of movement and minimising set-up time on site. This is especially helpful for rope access teams looking for minimal weight, high sensitivity and a powerful wireless connection.
Process, Analyise & Approve
The HPX-DR Non-Glass detector can process images, almost instantly once the exposure is completed for faster throughput. Preset the system so images appear with the desired filters already applied and approve in one click.
Features
- 139 μm pixel pitch for high-resolution imaging
- Large format (350 x 430mm) and thin profile (14.7mm)
- Heavy-duty shielding designed for high exposure NDT applications
- Protective, weatherproof enclosure – perfect for remote fieldwork
- 2-Year warranty
Easy to Install
Customer-installable with basic connections and simple to operate
Faster
Uses no disposable media in the process, elininating cassette loading time, developing, processing and reloading for the next shot. The HPX-DR No-Non Glass detector offers quick start up and calibration, and rapid image display after acquisition. Produce high quality images in seconds for immediate analysis.
Shot Time Improvement
Shoot faster, radiate less and keep your source longer. In certain circumstances, it's possible for HPX-DR Non-Glass detector to reduce exposure time.
Reduced Exposure
DDA panels are highly sensitive. Combine this with the ability to do frame averaging and you will likely be able to reduce your exposure time and still capture the sensitivity needed for your critical inspection task.
Rapid Job Setup
The INDUSTREX software can be set to operate in a Windows based format or in full DICONDE mose. Use what best fits your workflow and customer requirements.
Powerful Software
The HPX-DR Non-Glass detector is powered by our INDUSTREX image analysis software with the most advanced NDT post-capture tools for image measurements, enhancements and analysis.
Customised Reporting
The HPX-DR Non Glass detector can make customised multi-line or single shot-style reports in seconds. Create a work report by simply selecting the images to be included and click "create report". Make a custom-made multi-line or single weld-style report in seconds with pre-selected data.
Specification
| HPX-DR Non-Glass DR Detector Specification | |
|---|---|
| Size (mm) | Active area: 350 x 430 |
| Dimensions: 383.5 x 459.5 x 14.7 | |
| Weight | 5.3kg (11.9lbs) |
| Housing Material | Aluminum |
| Load Limit | Distributed evenly over detector area: 170kg (375lb) |
| Conversion Screen | Scintillator |
| Pixel Size (μm) | 139 x 139 |
| Scan Method | Progressive |
| A/D Conversion (bits) | 16 |
| Resolution | 3.6lp/mm |
| Wireless System | |
| Network Type | Isolated Private Wireless LAN (WLAN), Enterprise Wireless |
| Wireless Protocol | 802.11 A - or - N - or – G |
| Environmental | |
| Shock | High shock tolerance |
| Temperature Range (°C) | -20 to +50 |
| Ambient-Storage (-23 to +60) | |
| Shipping (-23 to +60) | |
| Relative Humidity | Operating 10 - 86% |
| Non-Condensing | Storage 10 - 86% |
| Ingress Protection | IP57 |
Downloads
Brochure & Specification
| Type | Title | Date | Size | |
|---|---|---|---|---|
 |
Carestream HPX-DR Non-Glass Brochure | 09/23 | Download | 1.10 MB |
