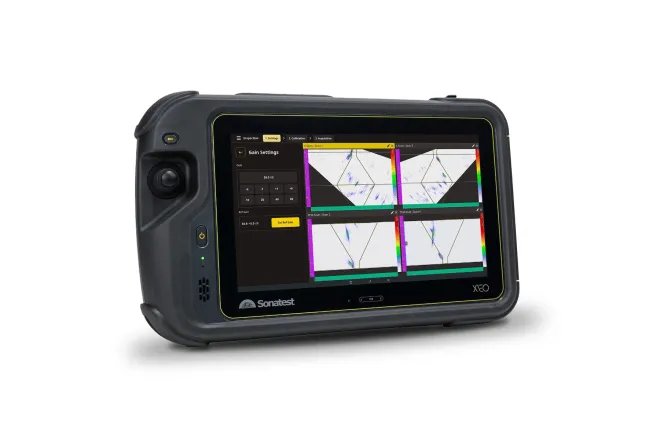

XEO
The XEO instrument combines the latest phased‑array ultrasonic testing (PA‑UT) innovation with advanced portable computing technology, redefining performance standards in the ultrasonic non‑destructive testing market.
Overview
Optimized for the future
The Sonatest XEO is designed to adapt to modern industry technologies and automation, it delivers the full capability of a high‑end system in a compact, field‑ready instrument. The XEO interface is the natural fit for all NDT inspectors.
Our instrument redefines complex UT and phased‑array imaging, turning advanced inspections into simple tasks.

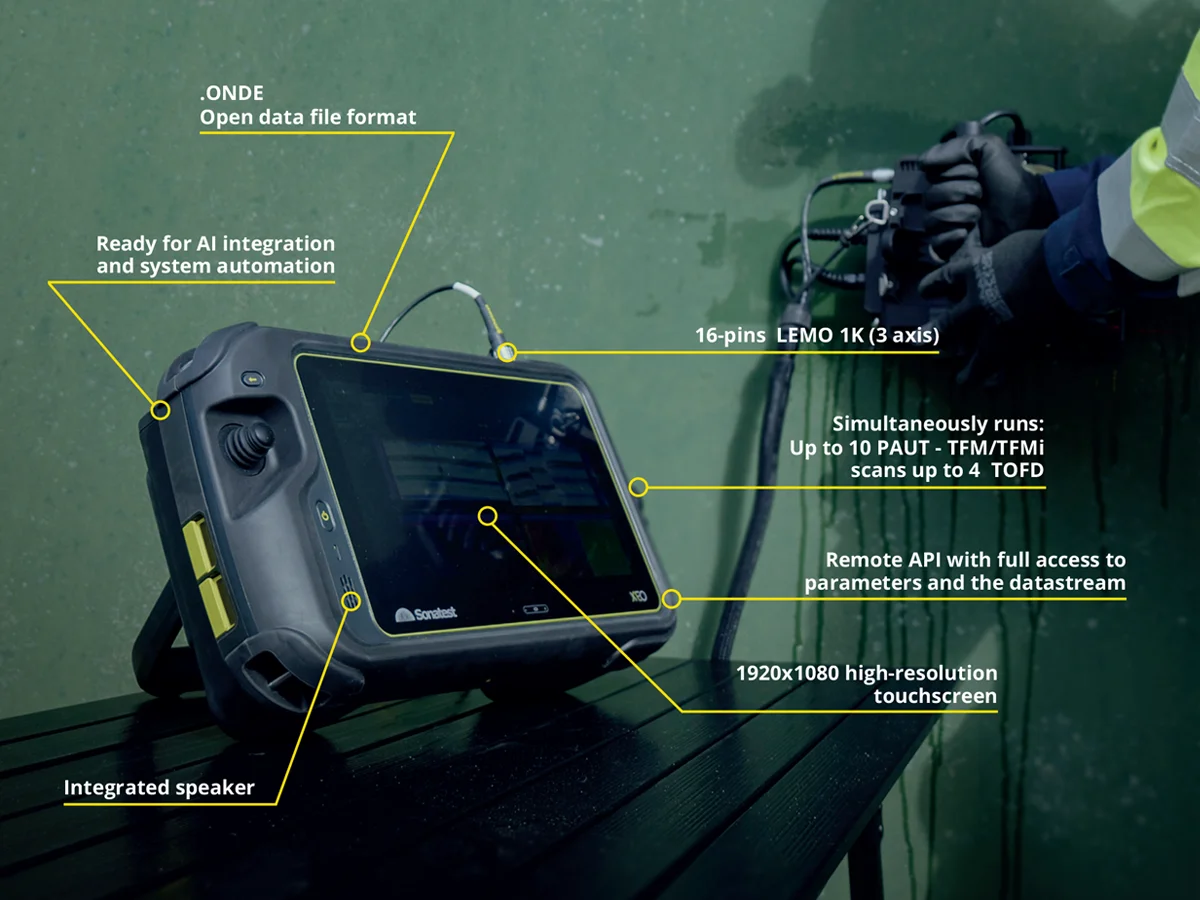

Features
Advanced doesn’t have to mean complicated.
Sonatest has surpassed expectations by setting a new baseline in ultrasonic inspections. Once again, Sonatest has committed to and designed a proven PAUT instrument that provides high-quality inspections and comprehensive data.
Fast in any Application
PHASED ARRAY
The instrument is capable of true geometry rendering with sectorial and linear scanning. This allows a comprehensive data reviewing.
With our 3D ray tracing, validate your configuration to ensure maximum coverage of your inspections.
TFM/TFMi™
Get fast and live images from one or many of the 16 propagation modes available on flat and curved parts.
The defect profile fidelity is key to characterisation.
With up to 4 megapixels per image, you will never miss a thing.
MULTIPLE TECHNIQUES
Using complementary techniques assures a higher detection rate of every defect. With XEO, Phased array, TFM, TOFD; all techniques can be used in the same configuration. For a complete inspection in only one scan, take advantage of the mini-dock flexibility.
Software Options
XEO 64:128 is an all‑inclusive model offered at a highly competitive price.
Start with the XEO 32:128 and add only the options required for your specific applications. The 32:128 model is designed for a “build‑your‑own instrument” approach.
Refer to the software part numbers below for more details.
Specification
| GENERAL | PHASED ARRAY (64:128 PR) | UT-TOFD (2PR) | FMC-TFM (128 Elements) |
|---|---|---|---|
| Multi-scan Quantity | Up to 10 PA scans | Up to 8 UT Up to 4 TOFD | Up to 8 TFM and/or TFMi scans |
| Pulsers/Receivers | 64:128PR (Option 32:128PR) | 0, 6 or 8 (Depends on mini docking options) | Up to 128 elements probe |
| Gain Range | 80 dB | 80 dB | 80 dB |
| Sampling Frequency | Up to 250 MHz @ 16-Bit (16-Bit processing with dynamic FSH 100 to 3200%) | ||
| System Bandwidth | 0.2 to 24 MHz | 0.2 to 24 MHz | 0.2 to 24 MHz |
| Max Pulse Rate Frequency | 50 000 Hz | 50 000 Hz | 50 000 Hz |
| Pulse Voltage | Bipolar from ±25 to ±90V (up to 180 V peak to peak) | ||
| Focusing Mode | Natural or Constant Depth/Path/Offset/Resolution | N/A | Up to 128 elem. TFM TFMi™ product and keep max methods |
| Resolution | Up to 0.01° | N/A | 4 megapixels (max. # of pixels) |
| L-Scan Resolution | 1 element, double resolution, or custom element steps | N/A | TFM and TFMi resolution up to 0.1mm |
| Max PA Beams | PA or TFM focal laws up to 16 384 beams | N/A | TFM: 2048 pixel² |
| Measurement tools | Extraction box, 4 gates/ A-Scan, TCG, DAC, cartesian cursors, indication table | 4 gates/A-Scan, TCG, DAC, indication table | Extraction box and all the standard PA tools, cartesian cursors, indication table |
| General Phased Array | |
|---|---|
| Max Points per A-Scan | Up to 16 384 points per A-Scan |
| Data Storage & File Size | 500 GB SSD PCIe; no file size limit |
| General FMC/TFM Technique | |
|---|---|
| Propagation mode | 16 TFM algorithms; up to 4 modes per TFMi™ |
| Fast TFM | Sparse Matrix Capture (SMC) and Hardware Accelerated |
| OPERATING SYSTEM | |
|---|---|
| Onboard Reporting Tools | Save screenshots anytime, Save recording and audio files Indication table export to CSV, C-Scan data export to CSV |

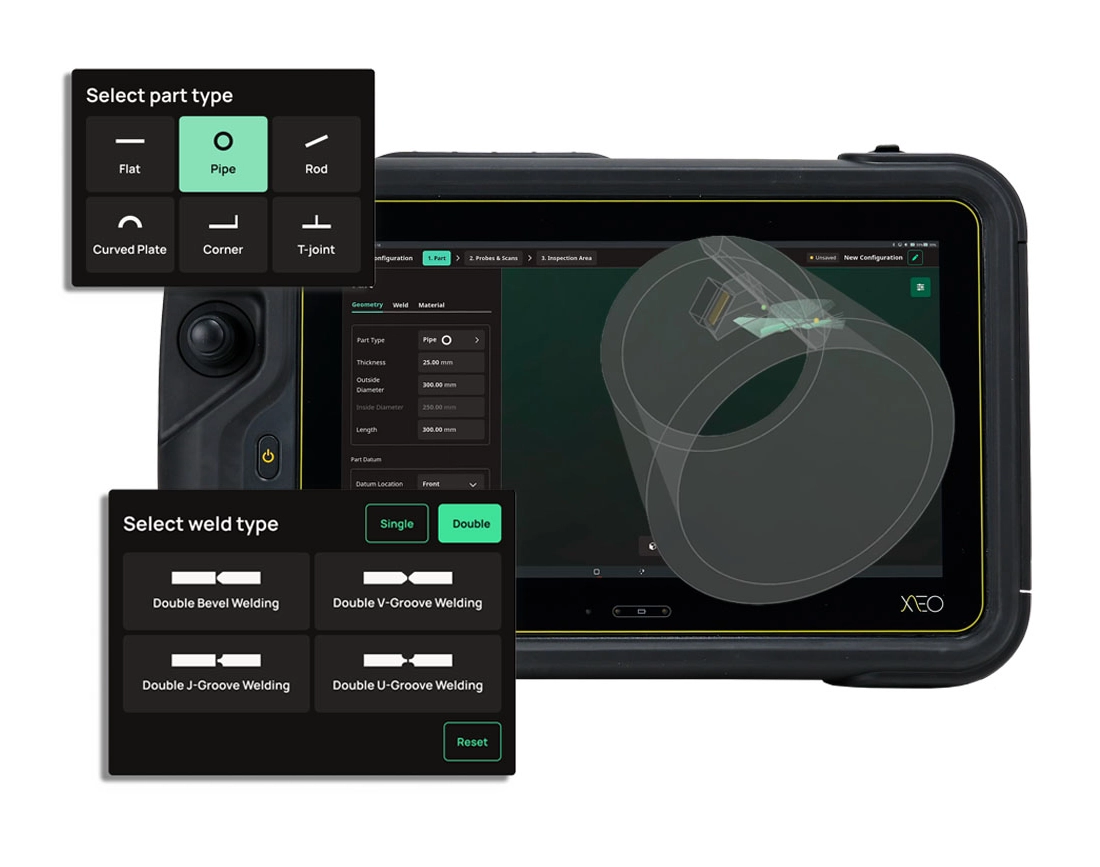

| Onboard 3D live rendering | On flat, curved and pipelines part with or without welds. T-joints and corner joints. |
| Multi-Task File Browser | Ability to load and read: PDFs, image files (.jpeg, .png, .gif), and audio files |
| Communication Ports | Wi-Fi 6 – (802.11ax 2.4 GHz and 5 GHz) 2 USB-C with Power Delivery and DisplayPort Alternate Mode |
| Remote Display Ports | Wi-Fi, Ethernet, HDMI or USB-C screen |
| Data Transfer Ports | Wi-Fi, Ethernet or USB-C drive (FAT32, NTFS, ext3 & ext4 formats) |
| Weight | 5.2 kg (11.2 lb) with batteries, 0.46 kg (1 lb) /battery) |
| HARDWARE SPECIFICATIONS | ||||
|---|---|---|---|---|
| Mini Dock PA & UT Connectors’ options | IX 128 channels | Dual IX 64-64 channels | IX 128 channels + 8x LEMO 00 | Dual IX 64-64 channels + 6x LEMO 00 |
| Environmental Rating | Certified IP65 - Vibration tested using MIL-STD 810H | |||
| Operating Temperature | -10°C to 45°C (14°F to 113°F) storage -20°C to 60°C (-4°F to 140°F) | |||
| Instrument Display | 11.56” Diagonal 1920 x 1080 LED Backlight Screen, Projective Capacitive Touch Panel. Duplicated and extended display | |||
| Power Input | AC 110 V/240 V @ 50 Hz/60 Hz to USB-C 100 W at 20 V | |||
| Operating Time | >5h (2 x 99.4 Wh hot-swappable batteries) | |||
| Calibration Standard | ISO 18563-1:2022 | |||
Accessories
Always the right tool for the job
Get more flexibility with our interchangeable mini-dock options.
Just like software options, PA-UT connectors are known as mini-docks, and they must be set at the purchasing step.

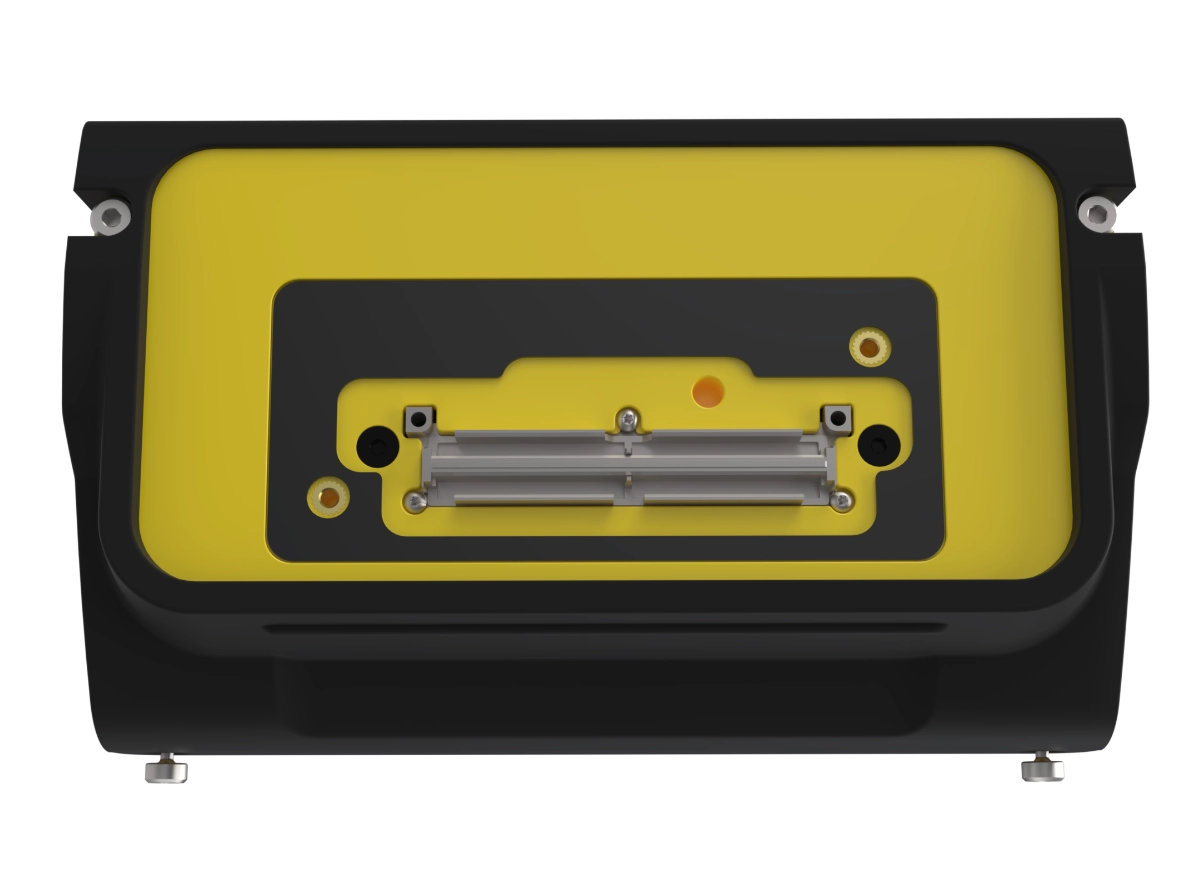

| ADAP-029 |
|---|
| 1x I-PEX connectors (128 elements) |

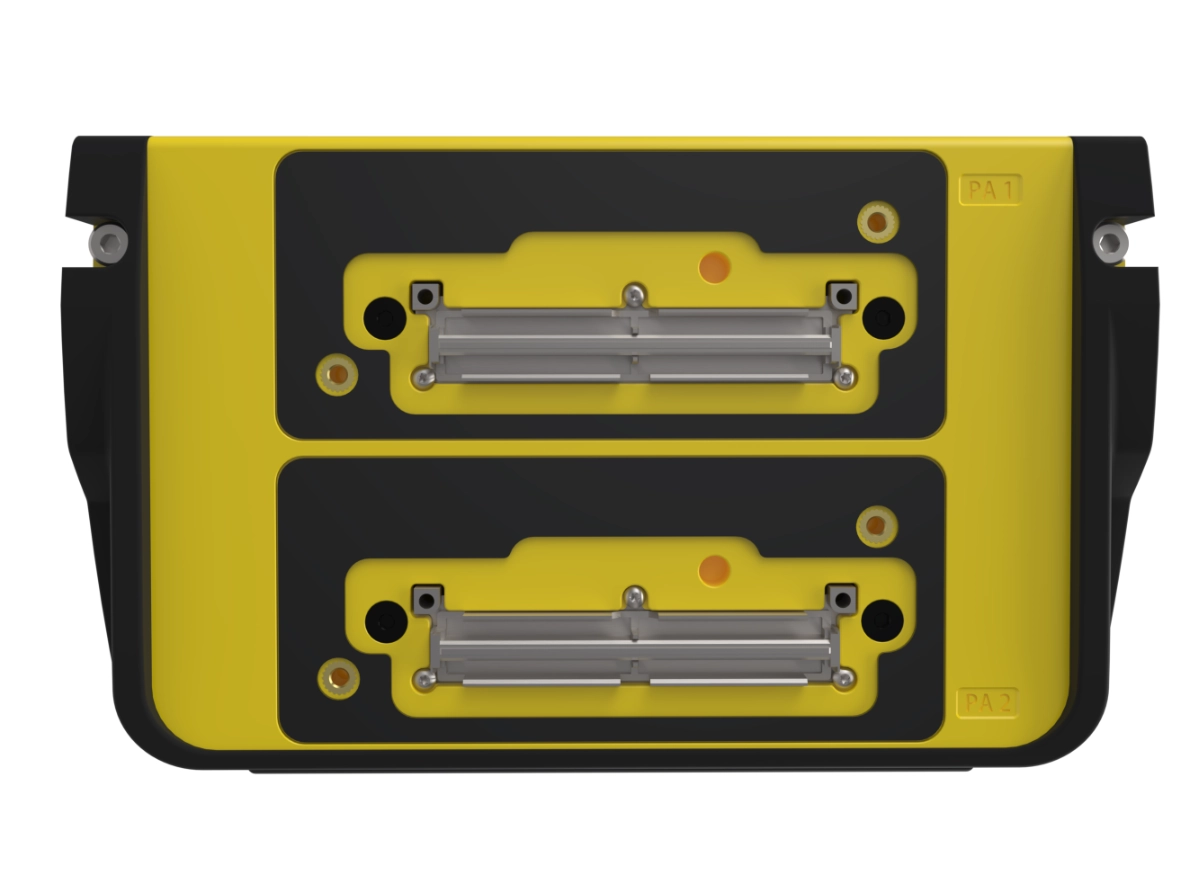

| ADAP-030 |
|---|
| 2x I-PEX connectors (64 elements) |

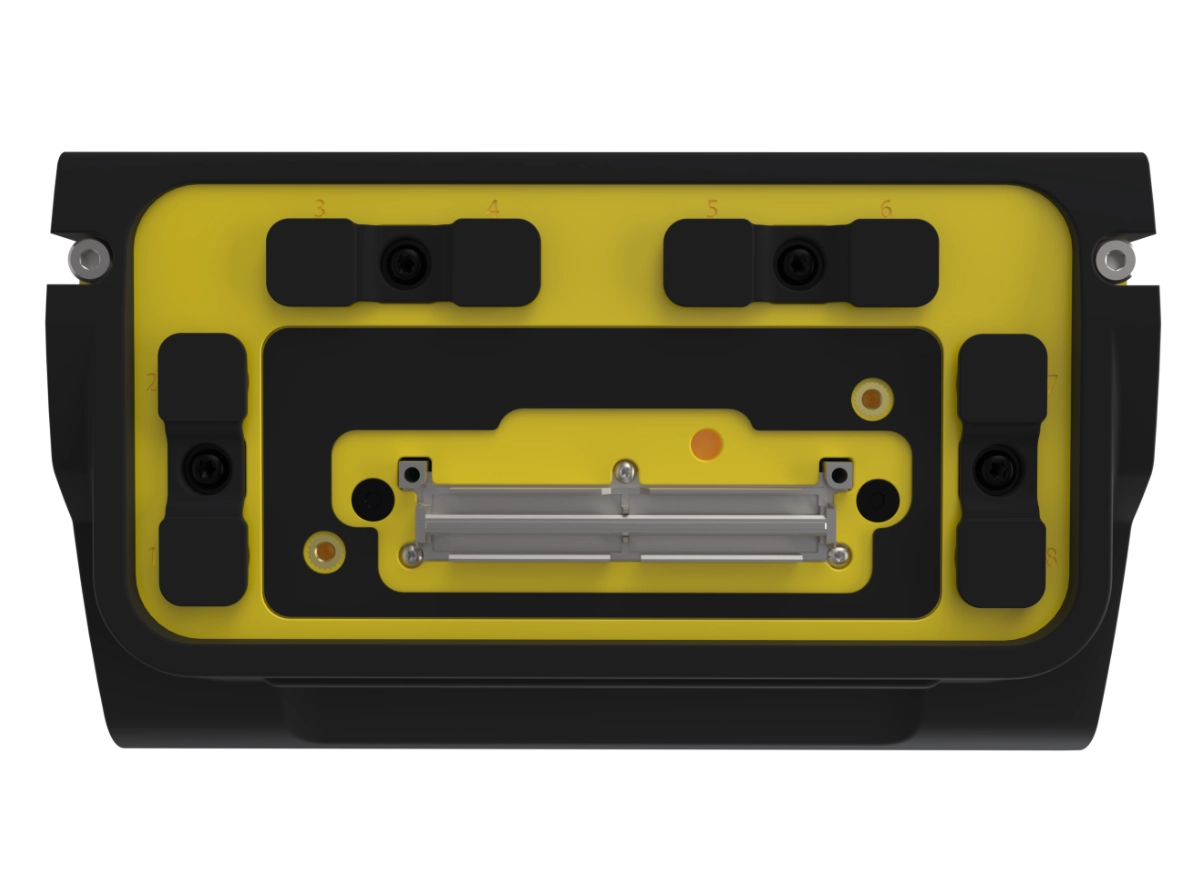

| ADAP-031 |
|---|
| 1x I-PEX connectors (128 elements) & 8x UT Lemo 00 connectors |
* To be released later after launch, pre-order is still available.

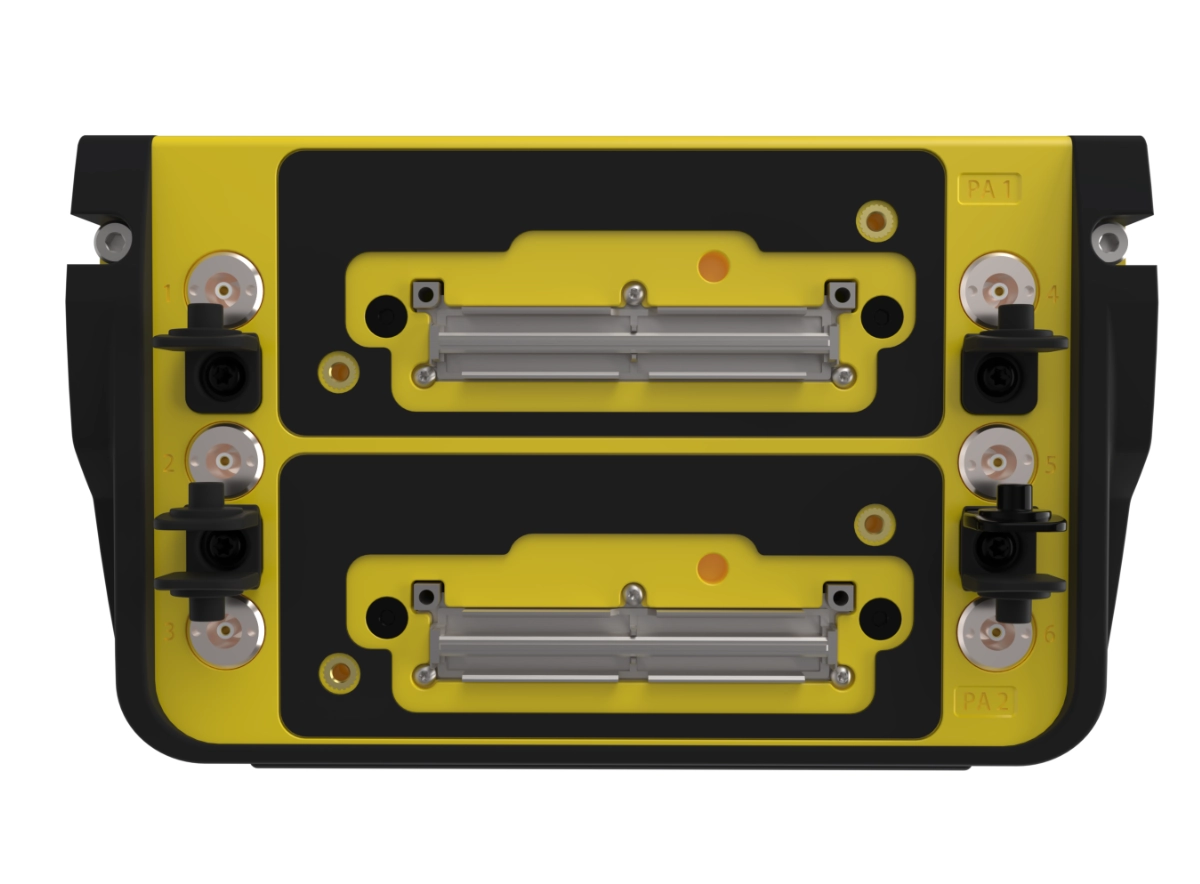

| ADAP-032 |
|---|
| 2x I-PEX connectors (64 elements) & 6x UT Lemo 00 connectors |
* To be released later after launch, pre-order is still available.
Software Options
XEO 64:128 Instrument Options
| Product Code | Description |
|---|---|
| SW-XEO PA64 | Upgrade from 32 to 64 pulser/receiver |
| SW-XEO TFM | SW Option: TFM, TFM-i, PCI*, PWI* |
| SW-XEO Matrix | SW Option:Matrix & DMA support |
| SW-XEO SDK/Remote API | SW Option: SDK/Remote API option |
XEO 32:128 Instrument Options
| Product Code | Description |
|---|---|
| SW-XEO PA64 | Upgrade from 32 to 64 pulser/receiver |
| SW-XEO TFM | SW Option: TFM, TFM-i, PCI*, PWI* |
| SW-XEO Matrix | SW Option:Matrix & DMA support |
| SW-XEO SDK/Remote API | SW Option: SDK/Remote API option |

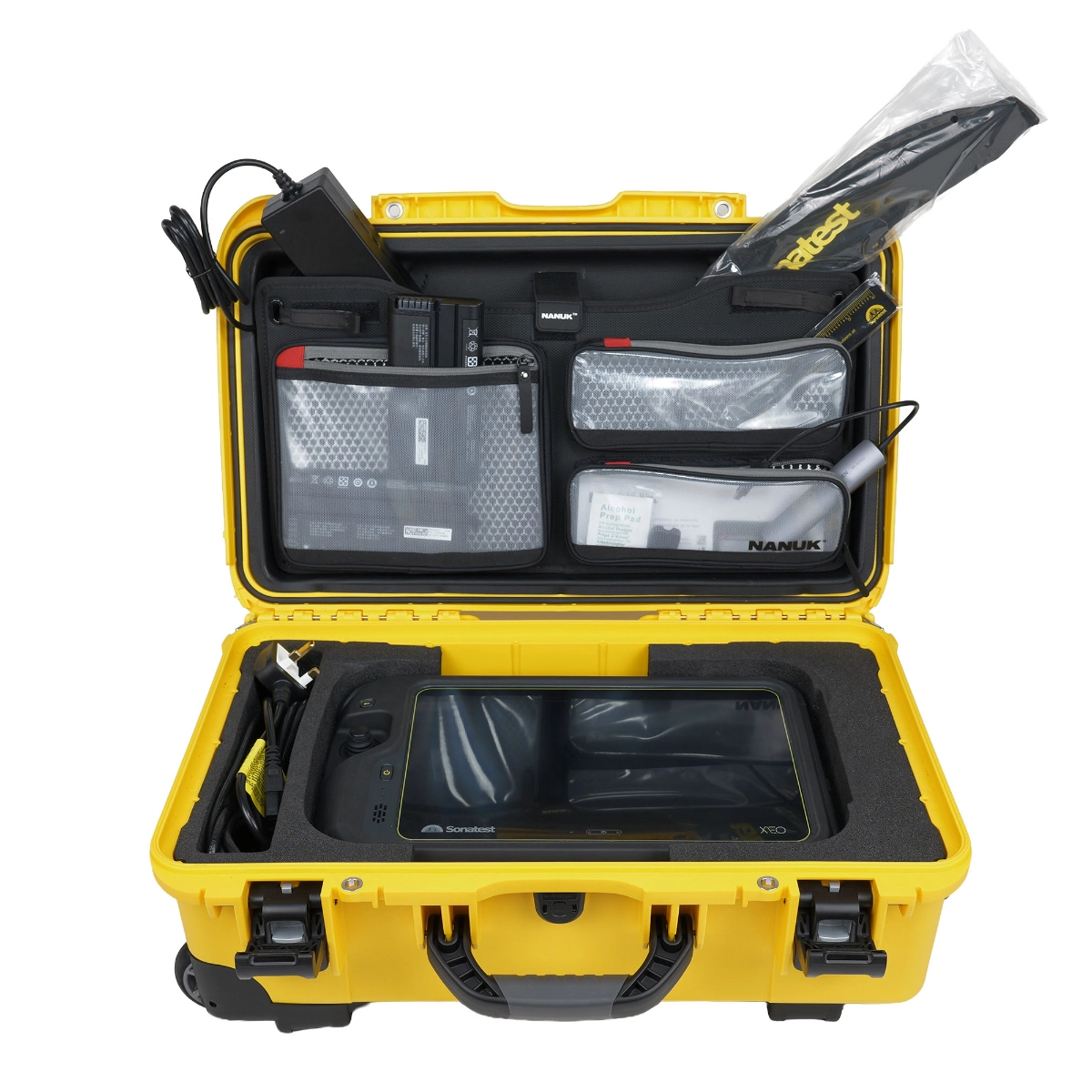

Standard Kit Contents
| Product Code | Description |
|---|---|
| XEO-FINAL-ASM | XEO Final Assembly |
| 242001 | XEO Smart Li-Ion Battery Pack (x2) |
| XEO-ACC-007 | XEO Power Supply with USB-C |
| XEO-ACC-001 | XEO Anti-Glare Film |
| 195193 | Carry Strap VEO/Prisma |
| XEO-ACC-003 | XEO Transport Case |
| XEO-ACC-006 | XEO Sonatest Ruler |
| 147012 | User Manual QR Code Card Manual |
| XEO-ACC-008 | USB-C Hub Adaptor |
| XEO-TOOL | XEO Mini-Dock Hex Key |
| 950146 | Storm Case Label - XEO |
| UTSTUDIO+ | UTStudio single license |
Accessories & Spares
| Product Code | Description |
|---|---|
| XEO-ACC-001 | XEO Anti-Glare Film |
| XEO-ACC-003 | XEO Transport Case |
| XEO-ACC-004 | XEO Demo Case |
| XEO-ACC-005 | XEO Demonstration Kit |
| XEO-ACC-006 | XEO Sonatest Rulaer |
| XEO-ACC-007 | XEO Power Supply with USB-C |
| XEO-ACC-008 | USB-C Hub Adaptor |
Encoder & GPIO Adapters
| Part Number | Description |
|---|---|
| ADAP-023 | GPIO-ENC-ADAP – WP2 Cable VEO to XEO |
| ADAP-024 | GPIO-ENC-ADAP – WP2 Cable XEO to VEO |
| ADAP-025 | DUAL-ENC-ADAP – VEO to XEO |
| ADAP-026 | TRI-ENC-ADAP – VEO to XEO |
| ADAP-027 | ENC-ADAP – VEO to XEO |
| ADAP-028 | ENC-ADAP – XEO to VEO |
| ADAP-029 | Mini-Dock PA IX128 to IX128 |
| ADAP-030 | Mini-Dock PA IX128 to IX64 |
| ADAP-031 | Mini-Dock PA IX128 to IX128 + x8 UT Lemo 00 |
| ADAP-032 | Mini-Dock PA IX128 to x2 IX64 + x6 UT Lemo 00 |
