- Couplant /
Sonagel Range
The Sonagel range is designed for use on all types of metallic surface and is especially suited to solving the problems of rough, pitted, uneven surfaces allowing smooth probe movement during testing.
Overview
The thixotropic properties of Sonagel give excellent wetting and acoustic transmission and do not allow the product to flow all over the test area. This makes it very economical to use as you only cover the working area and not the whole piece, and is especially suitable for vertical and overhead surfaces.
Sonagel incorporates chemicals, which allow very slow drying even at elevated temperatures, whilst being free of VOC's and other hazardous materials.
However, it does contain a special tracer dye to enable areas to be checked for coverage but the couplant is still very easily removed with gentle washing or solvent wipes.
For further information on pricing and availability please email our dedicated Consumables team.
Features

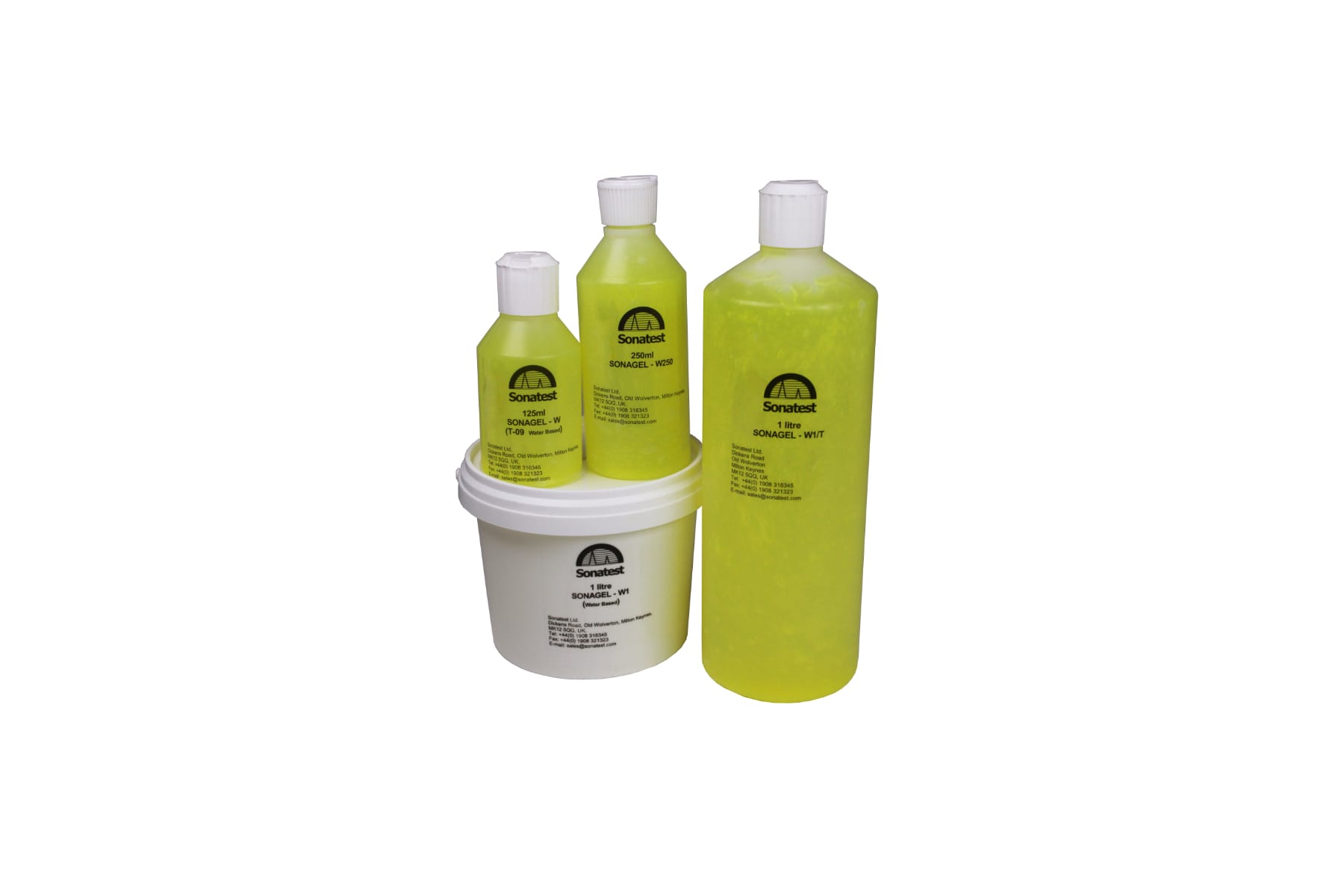

Sonagel W
Sonagel W is a stable clear yellow couplant gel specifically designed for ultrasonic inspection. It is non-toxic and safe for the environment.
Sonagel W is available in easy to use 125ml applicator bottles, 250ml bottles, as well as in plastic 1 litre, 5 litre and 20 litre bulk containers (with suitable carrying handles).
*NB: this product will have a flash point of 160°C (PM) when used for long periods at elevated temperatures.

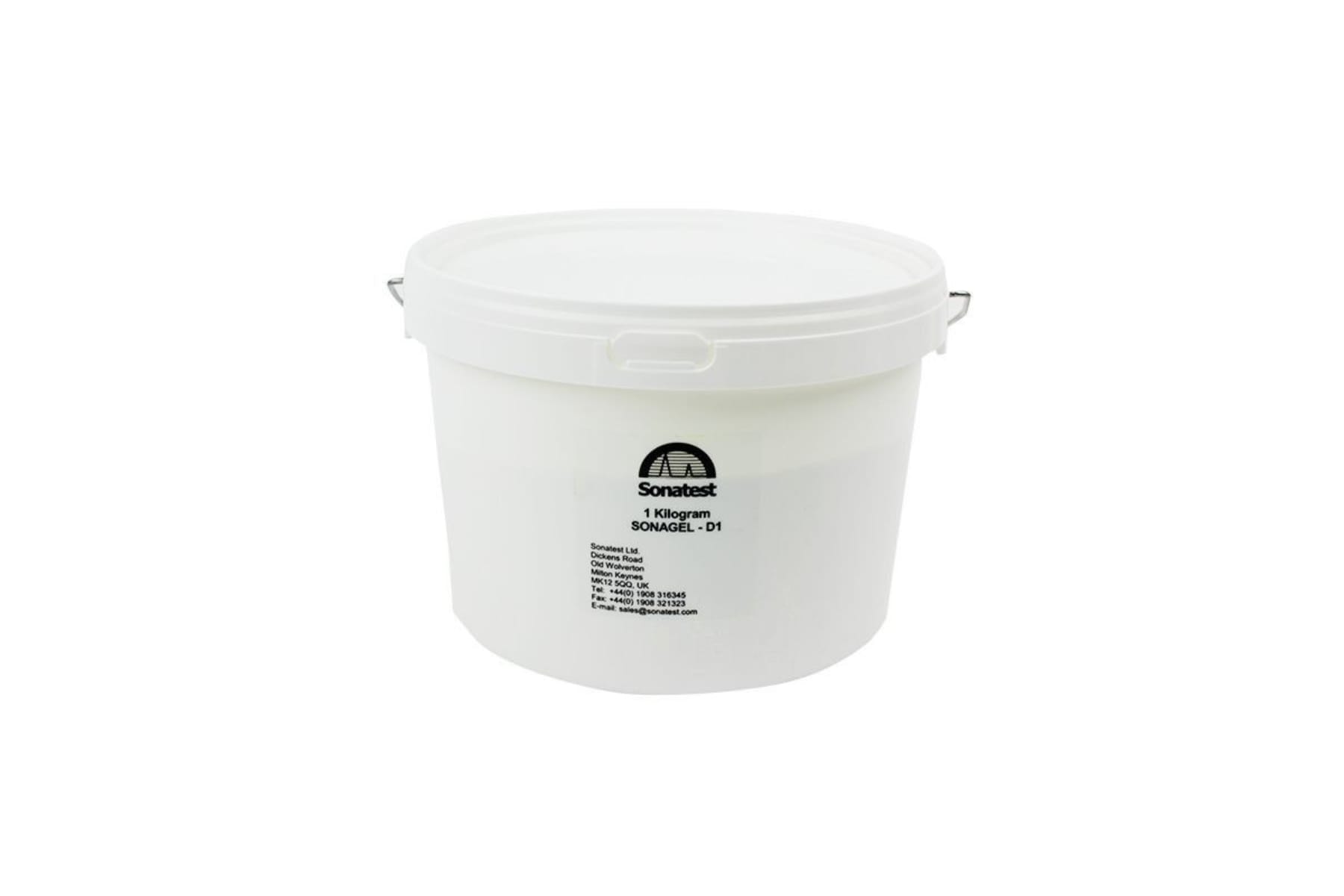

Sonagel D1
Sonagel D1 is a bright yellow fine powder that when mixed with water, forms a stable clear yellow gel specifically designed for ultrasonic inspection. 1 kilo of D1 powder makes 20 litres of couplant when mixed with water. This product is specifically designed for 'on site' spot tests where it is impractical to carry or deliver ready to use couplant in bulk.

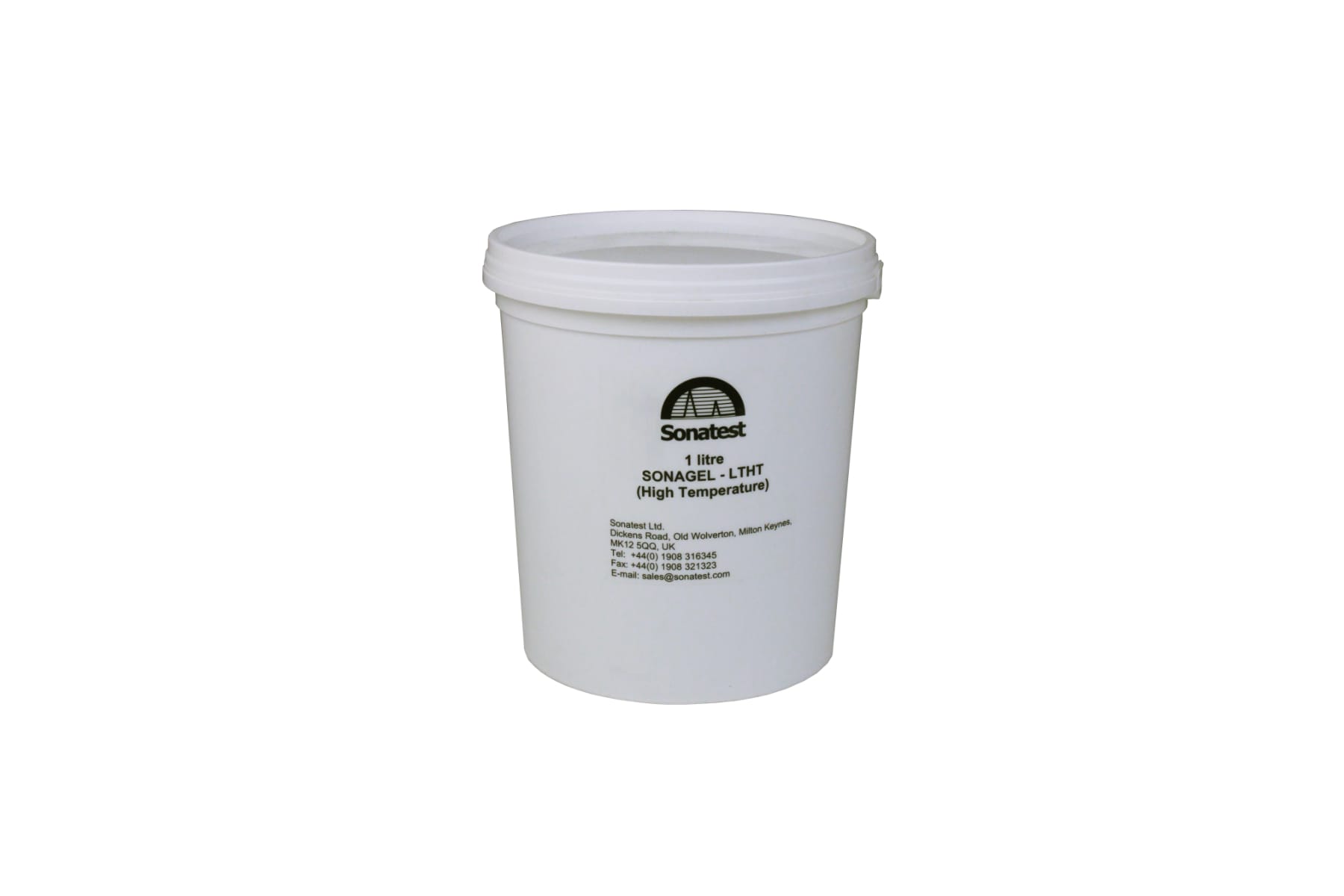

Sonagel LTHT
Sonagel LTHT is a thick translucent couplant paste specifically designed for ultrasonic inspection at temperatures up to 250°C and is non-toxic and safe for the environment.
Sonagel LTHT is easily removed with solvents such as Alcohol, Acetone or Hydrocarbon distillates.
Hazardous decomposition does not occur at elevated temperatures, the product will start to liquify as temperatures increase up to 300°C.
Sonagel LTHT is available in easy to use 1 litre plastic container.
Downloads
Brochure & Specification
| Type | Title | Date | Size | |
|---|---|---|---|---|
 |
Sonagel D1 Specification (English) | 09/23 | Download | 0.25 MB |
|
Sonagel D1 Specification (Spanish) | 09/23 | Download | 0.75 MB |
|
Sonagel LTHT Specification (English) | 11/23 | Download | 0.18 MB |
|
Sonagel W Specification (English) | 09/23 | Download | 0.21 MB |
|
Sonagel W Specification (Spanish) | 09/23 | Download | 0.47 MB |
