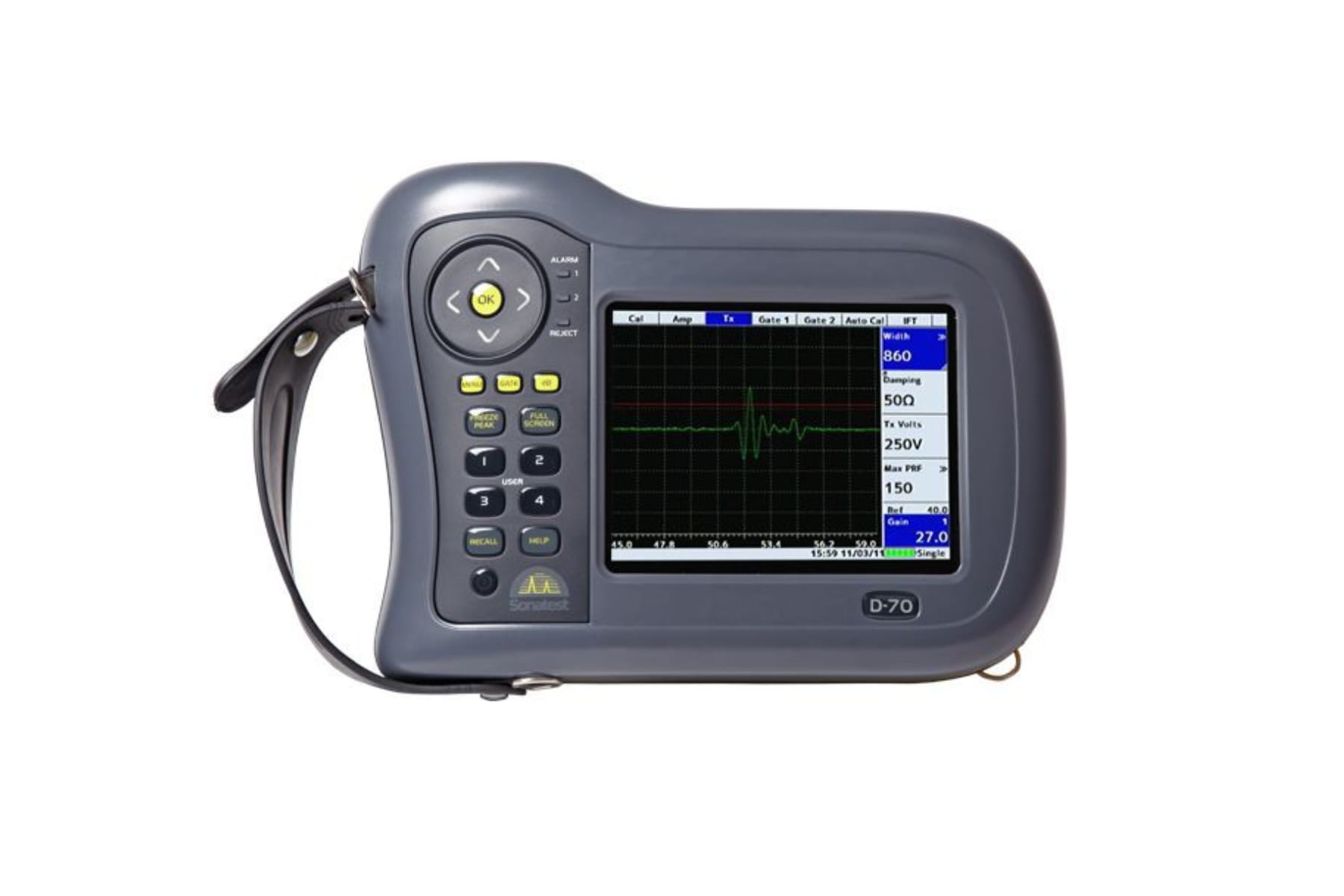

Masterscan D-70
The Masterscan name has always assured the technician of robust instrument construction combined with exceptional performance.
Overview
The Masterscan D-70 offers the inspector a fully capable and functional set of tools and software for inspection across all applications. Capabilities include encoded B-Scan, Advanced Thickness logging and Dryscan capability in a portable enclosure.
Features can be added and upgrades performed in the working environment, reducing downtime and increasing working flexibility. High levels of near surface resolution, penetrating power (450V pulser - square and spike) and excellent signal to noise ration are key functions in the Masterscan range.
Typical applications are Weld Fabrication, Corrosion Detection, Composite Inspection, Bond Testing, Forgings and Castings, Power Generation (including EMATS) and general UT inspection.
Features
Reliable, Rugged & Robust
An instrument's ability to perform in harsh environments with proven reliability is an important aspect of flaw detector ownership and this is enhanced by the Masterscan's outstanding battery performance which is up to 10.5 hours from full charge. The Masterscan's enclosure is constructed using automotive grade impact resistant materials, offering excellent water resistance. Explosive Testing MIL810-G standards have been passed, together with environmental testing which has confirmed the instrument fully functioning at temperatures above 55ºC. The Masterscan D-70 has a colour transflective VGA display and maximum readability is achieved through adjustable brightness and the choice of 9 colour palettes, including black-on-white LCD emulation mode.
Advanced Defect Sizing Tools as Standard
Weld and pipe inspection are major applications for the Masterscan D-70 and they are equipped with the latest software tools for defect sizing. The use of integrated sizing software reduces analysis time and speeds inspection. Multiple standard sizing techniques are essential for service companies working to different customer standards, especially as service work becomes more international and operators are required to work to different codes.
Sizing Techniques and Software Options include:
- DAC (Standard)
- Split DAC & DGS/AVG (Option)
- TCG (Option)
- Backwall Echo Attenuation (BEA) Option (requires TCG)
- AWS (Option)
- AVG/DGS (Option)
- API (Option)
- Interface Trigger (Option)
- Corrosion Software (Option)

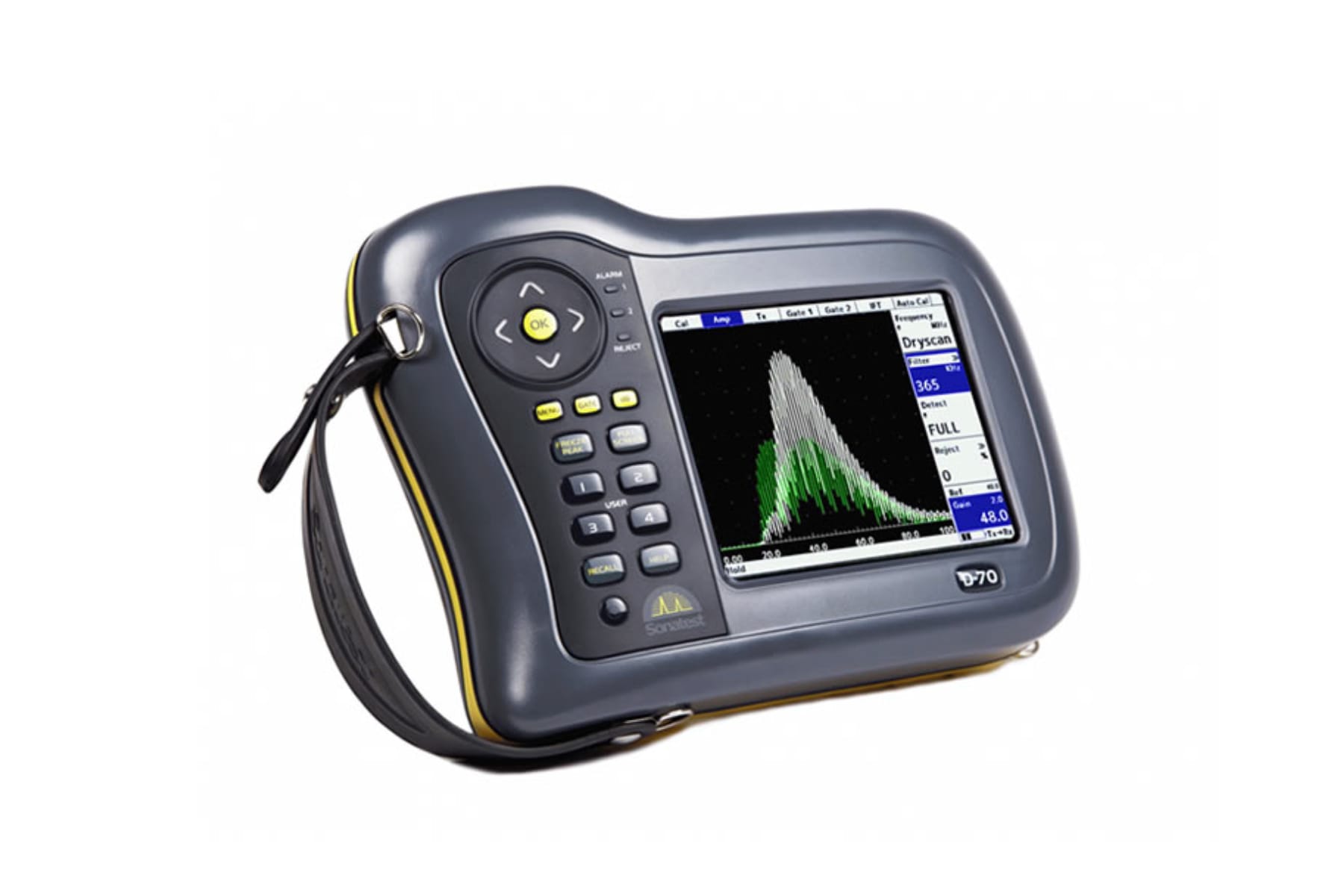

- Dryscan Function (Option)
UT-Lity Data Management Software
UT-Lity software provides everything you need to manage your inspection data. The standard version is FREE with every instrument and gives you the ability to view, move and manage Calibrations, A-Scans, B-Scans and Thickness Logs both on the instrument and on your PC. With UT-Lity you can also create customised inspection report templates, cut-n-paste information to other applications and create printable pdf documents.
- Load, store, manage files both on the PC and on a connected flaw detector
- Save, analyse, colour code and export thickness logging data to spreadsheets/asset management software
- Update the Flaw Detector and Firmware as and when updates become available on our website
Specification
| Masterscan D70 | |
| Measurement Modes | 7 modes |
| Rectification | RF, Full wave, +ve half-wave and -ve half-wave |
| Waveform Smoothing | None, Fill and Smooth |
| AutoCal | Provides automatic calculation of velocity and probe zero from two reference echoes |
| Reference Waveform | Displays a previously stored A-Log in a colour different from the active display: enabling a quick visual check of the differences |
| Active Peak Memory | Retains all A-Scans on screen for echo-dynamic pattern analysis, with the active A-Scan displayed in a separate colour |
| Active Edge ™ | Unique Active Edge Mode for near-surface resolution |
| AGC | Automatic Gain Control automatically sets the signal in Gate 1 to a level between 10% and 90% FSH, tolerance between 5% and 20% |
| Connections | |
| Encoder | Lemo mini 4-pin connector |
| External Video | Factory Option |
| USB Connection | Internal storage shown as Memory Device |

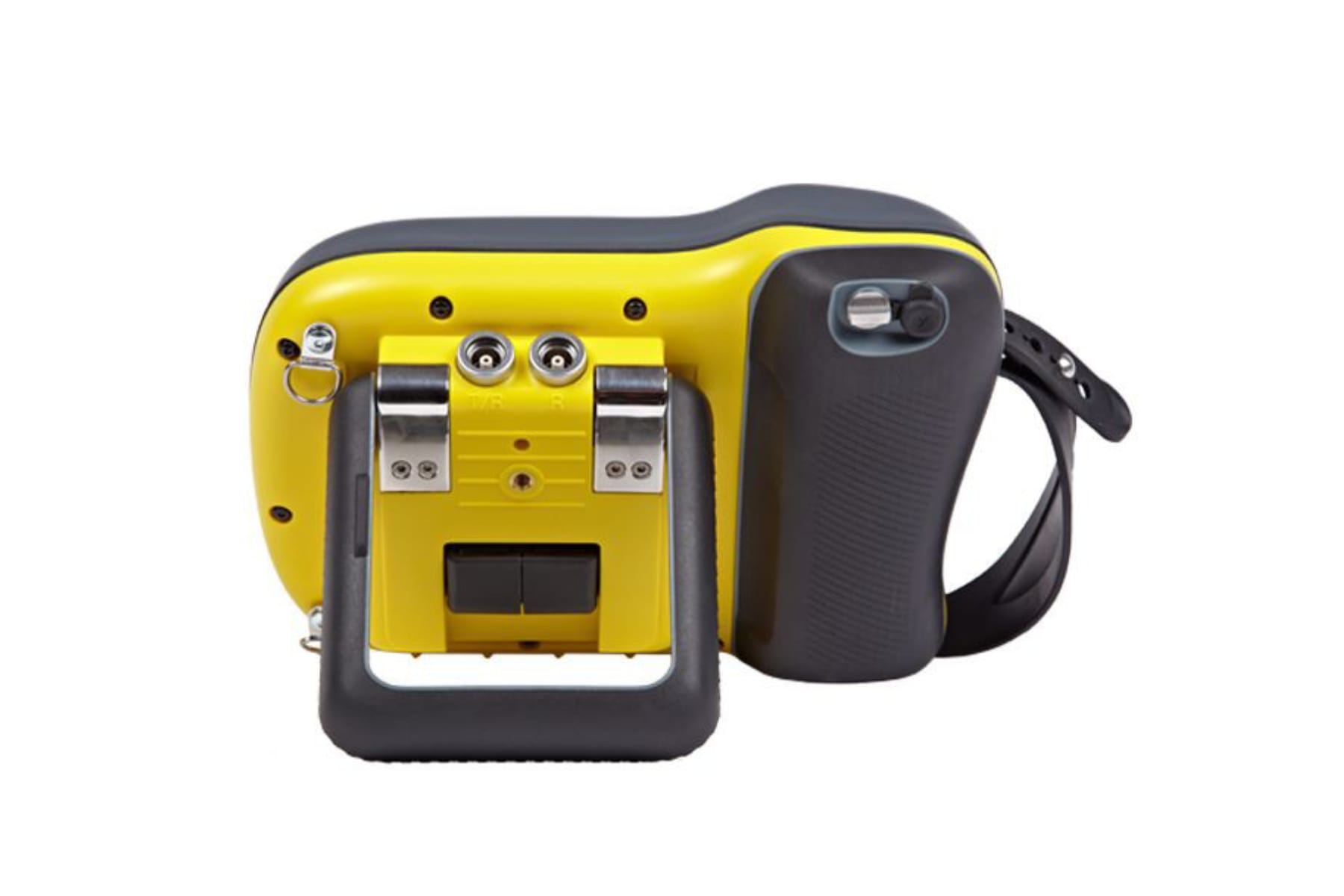

| Transducer sockets | BNC or LEMO (factory option) |
| Measurements | |
| Gates | 2 |
| DAC | YES |
| Split DAC | Option |
| IFT | Option |
| TCG | Option |
| AVG/DGS | Option |
| AWS | Option |
| API | Option |
| BEA | Option |
| Corrosion TLog | Option |
| BChart | Option |
| Dryscan | Option |
| Transmitter | |
| PRF | Adjustable 5Hz to 5kHz. |
| Pulser(Voltage) | 100- 450V -ve spike and square wave |
| Pulse width from 35nS to 2500nS | |
| Rise/Fall times <15nS year | |
Accessories
Masterscan D-70: BNC and LEMO
| Product Code | Description |
|---|---|
| D-70BKIT | Masterscan D-70 Digital Flaw Detector BNC |
| Battery, Charger, Charger mains cable | |
| User Guide | |
| Calibration Certificate | |
| Certificate of Conformance | |
| Carry Bag | |
| UT-Lity and USB cable | |
| Display Window Cover |
Accessories & Spares
| Product Code | Description |
|---|---|
| 800208 | CH700 Battery Charger |
| 242173 | D-Series Battery Pack |
| 195167 | D-Storm Case |
| 195194 | D-Series Storm Case - Eco |
| 195123 | D-Series Protective Sleeve |
| 195163 | D-Series Carry Bag |
| 165027 | RCA Video OutPut Cable |
| 165028 | USB Type A Male Cable Assy |
| 152120 | Cable DFD to PC |
| 165040 | Proportional O/P lead |
| 145221 | Masterscan Replacement Screen Cover |
| 145324 | Masterscan Screen cover |
| MPS-701EU | Flaw Detector Mains Pack |
| MPS-701UK | Flaw Detector Mains Pack |
| MPS-701US | Flaw Detector Mains Pack |
| 192025 | US Mains Lead Plug |
| 192026 | UK Mains Lead Plug |
| 192027 | Euro Mains Lead Plug |
| D-SERIES-SITE-PACK | Site Pack Option |
| 136168 | BNC to BNC 50 Ohm |
| 136169 | BNC Female to LEMO Male |
| 136171 | Lemo (M) to Lemo 00 (F) |
| 152018 | BNC (M) to LEMO (F) Adaptor |
| KMA KIT 1 | Stand Support Pack |
| KMA-01 | Magnetic Mt'g Bracket Assy |
| KMA-03 | Hook Mt'g Bracket Assy |
UT-Lity Pro (Advanced User Software)
UT-Lity Pro is the "professional" version and works in conjunction with the Corrosion Software option, providing the end user with the ability to create and manage inspection plans, location notes, historical thickness readings and other asset management information as required.
- Set up inspection plan (gris) templates, notes and labels
- Import previous readings into an inspection plan
- Export inspection plan data to spreadsheets and plant maintenance databases
Flaw Detector Software Options
| Product Code | Description |
|---|---|
| SW-API | API software |
| SW-AWS | AWS software |
| SW-BEA | BEA software |
| SW-CORROSION | T-Log + B-Chart software |
| SW-DGS | DGS software |
| SW-DRY | Dryscan mode software |
| SW-IFT | IFT software |
| SW-SPDAC | Split DAC software |
| SW-TCG | TCG software |
| UTILITY PRO | UT-Lity Pro software |
Downloads
Li-Ion Battery Information
| Type | Title | Size | Date | |
|---|---|---|---|---|
 |
Battery pack 4S 2P N18650CP Information Sheet | Download | 0.55 MB | |
|
Battery pack 4S 2P N18650CP Test Report | Download | 1.37 MB | |
|
Battery pack 4S 2P N18650CP Test Summary | Download | 0.34 MB | |
|
Shipping & Handling Li-Ion Batteries | Download | 0.48 MB |
