WheelProbe 2



Overview


The WheelProbe 2 is proving to be unrivalled in the field of composite inspection and corrosion monitoring in terms of speed and ease of use, in addition to achieving excellent results.

Typical applications included: Corrosion Mapping, Marine Inspection, Aerospace Fuselage, Aerospace Large Area scanning and Automotive Testing.

Features

Composite Inspection

WP2 presents the most efficient solution for scanning large areas of composite. As the best alternative to immersion inspection of the WP2 offers impressive 1mm near surface resolution in the latest composite materials using 5MHz array. Available also with 10MHz, 3.5MHz and a 2.5MHz version, the WP2 tyre tightly matches the acoustic impedance of water and like its predecessor, produces UT signals of exceptional quality. The configurable handles, adjustable laser guidance, unique LED's for alarm feedback, remote control with start/stop indexing and reset buttons as well as the remote display makes this package unique, superior and still unequaled.

Corrosion Monitoring

Making complete and reliable surveys to generate corrosion maps is more than a trend, it is required. With the efficiency, performance and precision provided by the WP2, it is now possible to inspect large areas and quickly analyse data to determine if any critical or urgent action is required. Moreover, this technique allows the user to compare large amounts of data over time to perform preventative maintenance, reducing potential downtown. With WP2 the level of confidence is significally increased since decisions can be based on data sets that are 1000 times more detailed, yet still gathered in the same time required to do 'spot check' using traditional methods. Whether for axial or longitudinal inspection using unique grooved rollers, or attached to a scanner, WP2's flexibility makes the tool of choice for a fast and accurate corrosion monitoring application!

Rugged

WP2 has been re-designed from the ground up in lightweight aluminium-reinforced polymer. Lighter to reduce operator fatigue, and tougher, to give longer service life. Which means you can trust it to perform, day after day, even on the most awkward inspection tasks.

Productive

With LED feedback built-in and the optional display attachment, the technician can now focus on obtaining high-quality, consistent UT data. Real time feedback of alarms gives a great feeling of confidence that the inspection is good, and so is the part.

Detachable

Make the best use of your WP2, and connect it to just about any UT system. With interchangeable cables, you have the best of all worlds. A longer cable? A different connector? These options can be held in stock at very little cost, ready for the jobs as they arrive.

Configurable

With a choice of either a single 'joy-stick' or a crossbar handle, the angle can be adjusted for operator comfort, and with the remote control available for either left or right-handed operation, the ergonomics of this WP2 are unsurpassed.

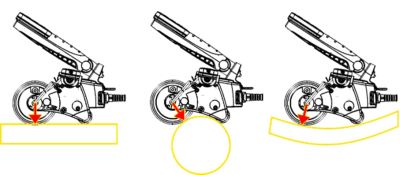

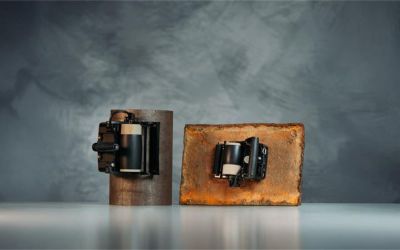

Roller Options

With the profiled, flat and precision roller options, a few moments' effort converts your WP2 from a flat-surface composite inspection tool, to a radial or axial pipe corrosion mapping system. Able to scan right to the edges of the part, convex, concave and even irregular surface area are catered for.

Laser Guidance

Keeping your scans on track, the laser pointer option gives a high degree of confidence in the correct registration of the WP2 for multiple pass scans, as well as on longer runs across large surfaces.


Media

Accessories

WP2 Corrosion Pack (WP2-Pack1)

Horizontal Handle

Back Profiled Roller

Filling Equipment

Maintenance Tools and Manual

Rugged Transportation Case

WP2 Advance Kit 1 (WP2-ADV-KIT1)

2 x Flat Front Roller

2 x Profiled Front Roller

2 x Precision Front Roller

Remote Control

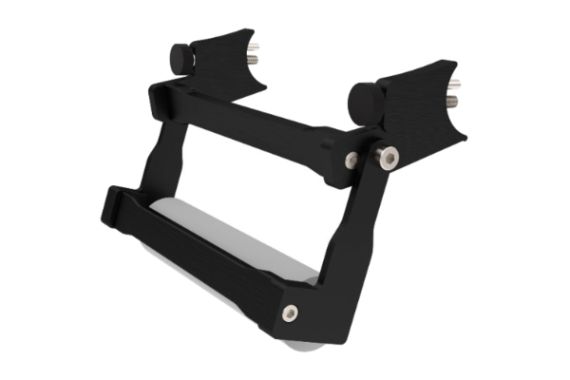

Front Roller Assembly

WP2 Composite Pack (WP2-PACK2)

Vertical Handle

Back Flat Roller

Filing Equipment

Maintenance Tools and Manual

Rugged Transportation Case

WP2 Advanced Kit 2 (WP2-ADV-KIT2)

2 x Flat Front Roller

Remote Control

Front Roller Assembly

Laser Guidance Kit

Phone Display Kit


Accessories and Spares

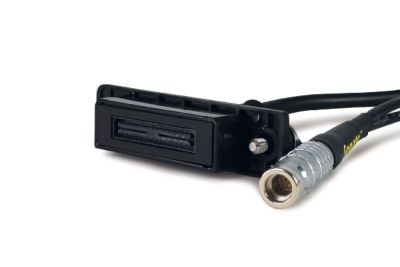

Cables
WP2-CABLE-1012.5m Cable I-PEX/LEMO
WP2-CABLE-102Option 2.5m Cable, I-PEX/MX2
WP2-CABLE-111Option 5m Cable, I-PEX/LEMO
WP2-CABLE-112Option 5m Cable, I-PEX/MX2
Handles
WP2-ACC-0501Horizontal Handle
WP2-ACC-0502Vertical Handle

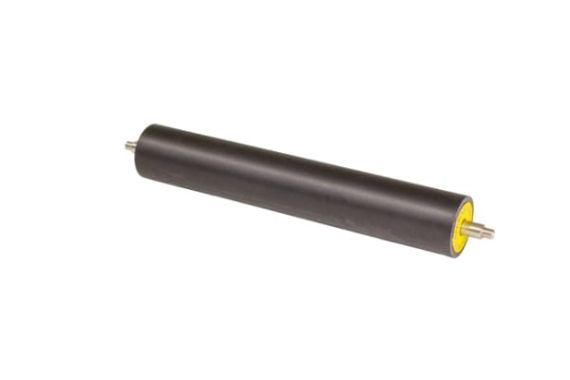

Rollers Only
WP2-ACC-0503Profiled Roller Kit - Front & Back
WP2-ACC-0504Flat-Roller Kit - Front & Back
WP2-ACC-0505Precision Roller Kit
WP2-ACC-0506Front Roller Assembly - Profiled
WP2-ACC-0507Front Roller Assembly - Flat
WP2-ACC-0508Front Roller Assembly - Precision
WP2-ACC-0509Roller Only - Profiled
WP2-ACC-0510Roller Only - Flat
WP2-ACC-0511Roller Only - Precision
Accessories and Spares
WP2-ACC-0512Remote Control
WP2-ACC-0513Laser Guidance Kit
WP2-ACC-0514Phone Display Kit
WP2-ACC-0515Basic User Kit
WP2-ACC-0516Rugged Transportation Case
WP2-ACC-0518Demo Plate for WP2
WP2-ADAP-101Veo/Prisma to MX Adaptor
WP2-ADAP-102Veo/Prisma to MX2/SX Adaptor
WP2-TOOLHex Key

Downloads

DateTitleVersionSize
June 2017 Phased Array & Hydrogen Blistering Download

Brochure Download

Download Brochure (3.89 MB)
